Home > Products > Blasting Rock Drill Rig > Cost-Effective KY-100 DTH Borehole Rock Drilling Rig

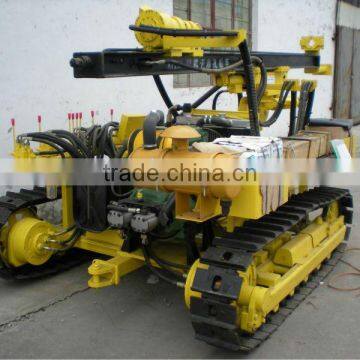

Cost-Effective KY-100 DTH Borehole Rock Drilling Rig
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Place of Origin | Henan, China | Brand Name | UNIQUE | |
| Model Number | KY-100 | Usage | Other, drill blast hole for mine site, drill hole for construction site etc. |
Product Description
Specifications
Powerful and reliable engine; Adjustable drill boom; Reliable hydraulic pump set; Reliable hydraulic system; trustable operationSpec. of Drill Machine
Rock Rigidity: f=6-20
Dia. of hole: 80-105 mm
Optimum Drilling Depth: 20 m
Working Pressure: 0.5-0.7 Mpa
Air Consumption: ≥10m3/min.
Rotation Speed: 0-65 rpm
Torque: 983 N•m
Lift power: 15KN
Rod specification: 60x2000 mm
Gradeability: 30°
Ground Clearance: 254 mm
Walking Speed: 2.0 Km/h
Dimensions: 4100x2030x2020mm
Weight: 3200 kg
Drive System: YC2108 Engine (33Kw, 2200r/min)
Recommended Compressor: LGCY12/10
Spec. of Screw Compressor
Capacity: 12 m3/min.(424cfm)
Working Pressure: 1.0 Mpa (145psig)
Fluid capacity: 35L
Compression stage: single
Diesel Engine: YC6B150Z-K20,110KW(150HP)
Dimensions: 3970x1940x2350 mm
Total Weight: 2380 kg
