2012 hot selling mining drilling machine with good quality
- Qingdao Shanghai or other China main port
- T/T Credit Card
You May Like
-
2012 hot selling rock hole drilling machine with good quality
-
2012-2013 hot stone driller machine with very good quality
-
2012-2013 China Hot Selling Gem stone Drilling Machine
-
2013 China Good Quality hard rock drilling machine KY125
-
2012-2013 China Hot Selling Rock Drilling Machine KY125
-
2011-2013 China Hot Selling Stone Drilling Machine KY125
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Model Number | KY100 | |
| Usage | Other, drilling borehole for quarry, mining and construction | Dimension(L*W*H) | 4100x2030x2020mm | |
| Weight | 3.2t | Certification | ISO | |
| Warranty | 15 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
mining drilling machinepowerful & reliable engine
adjustable boom
reliable hydraulic system
reliable hydraulic pum set
It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

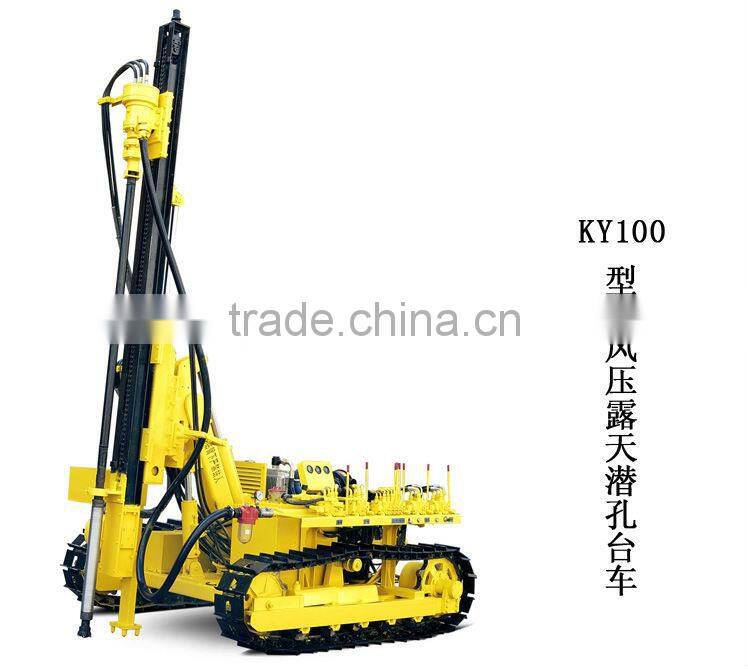

Specifications of Crawler Drill KY100
Rock Rigidity: f=6-20
Dia. of hole: 80-105 mm
Optimum Drilling Depth: 20 m
Working Pressure: 0.5-0.7 Mpa
Air Consumption: ≥10m3/min.
Rotation Speed: 0-65 rpm
Torque: 983 N•m
Lift power: 15KN
Rod specification: 60x2000 mm
Gradeability: 30°
Ground Clearance: 254 mm
Walking Speed: 2.0 Km/h
Dimensions: 4100x2030x2020mm
Weight: 3200 kg
Drive System: YC2108 Engine (33Kw, 2200r/min)

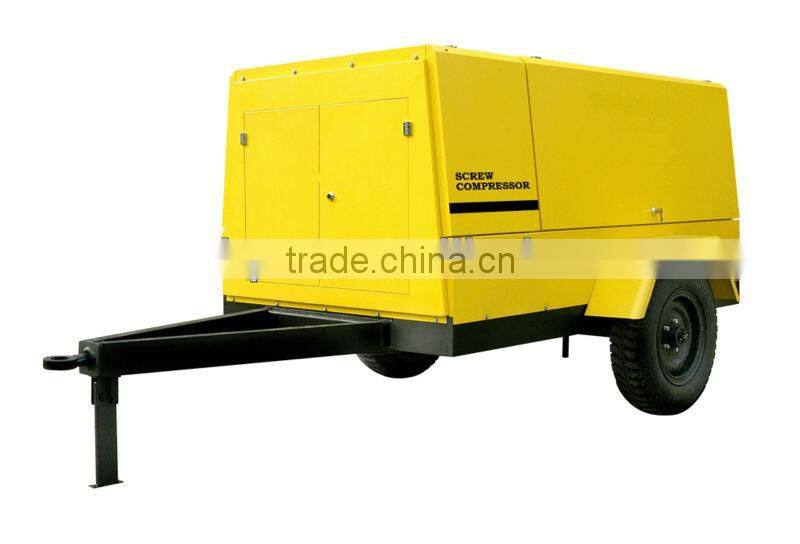

Recommended Compressor: LGCY12/10
Model: LGCY12/10
Capacity: 12 m3/min.(424cfm)
Working Pressure: 1.0 Mpa (145psig)
Fluid capacity: 35L
Compression stage: single
Diesel Engine: YC6B150Z-K20,110KW(150HP)
Dimensions: 3970x1940x2350 mm
Total Weight: 2380 kg
