Grade 30 Proof Coil Hot Dipped Galvanized chain
USD $400 - $1,000
/ Ton
1 Ton(Min.Order)
- 600 Ton / Tons per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Grade 30 Proof Coil Electro Galvanized Chain
-
Grade 30 Proof Coil Long Link Self Color Chain
-
linyi shuguang hight quality and low price alloy welding chain
-
Anti-skid tractor snow chain welded chain
-
High Quality G30 Round Link Chain for machine
-
NACM/ASTM standard ordinary galvanized link chain pack in plastic reel
Product Details
| Place of Origin | Shandong, China | Brand Name | Shuguang | |
| Model Number | USA Standard Link Chain | Structure | Welded Chain | |
| Function | Drag Chain | Material | Other, Q235,Q195,Carbon Steel | |
| Standard or Nonstandard | Standard |
Product Description

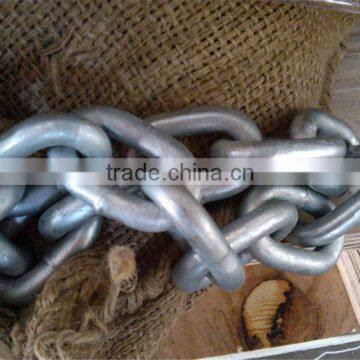

Grade 30 Proof Coil Hot Dipped Galvanized chain
Product Parameter
Grade 30 Proof Coil Hot Dipped Galvanized chain
Nominal Size D | Material Diameter | Working Load Limit | Proof Test (Min) | Breaking Force (Min) | Inside Length A | Inside Width B | |||||||
| MM | IN | MM | IN | KG | LBS | KN | LBS | KN | LBS | MM | IN | MM | IN |
| 4.0 | 1/8 | 4.0 | 0.156 | 180 | 400 | 3.6 | 800 | 7.2 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
| 5.5 | 3/16 | 5.5 | 0.217 | 365 | 800 | 7.2 | 1600 | 14.4 | 3200 | 24.8 | 0.98 | 7.7 | 0.30 |
| 7.0 | 1/4 | 7.0 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.2 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8.0 | 5/16 | 8.4 | 0.331 | 860 | 1900 | 16.9 | 3800 | 33.8 | 7600 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10.0 | 3/8 | 10.0 | 0.394 | 1200 | 2650 | 23.5 | 5300 | 47.2 | 10600 | 35.0 | 1.38 | 14.0 | 0.55 |
| 11.9 | 7/16 | 11.9 | 0.488 | 1680 | 3700 | 32.9 | 7400 | 65.8 | 14800 | 41.5 | 1.64 | 16.6 | 0.65 |
| 13.0 | 1/2 | 13.0 | 0.512 | 2030 | 4500 | 40.0 | 9000 | 80.0 | 18000 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16.0 | 5/8 | 16.0 | 0.630 | 3130 | 6900 | 61.3 | 13800 | 122.6 | 27600 | 56.0 | 2.20 | 20.0 | 0.79 |
| 20.0 | 3/4 | 20.0 | 0.787 | 4800 | 10600 | 94.3 | 21200 | 188.6 | 42400 | 70.0 | 2.76 | 25.0 | 0.98 |
| 22.0 | 7/8 | 22.0 | 0.866 | 5810 | 12800 | 114.1 | 25600 | 228.2 | 51200 | 77.0 | 3.03 | 27.5 | 1.08 |
| 26.0 | 1 | 26.0 | 1.020 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |

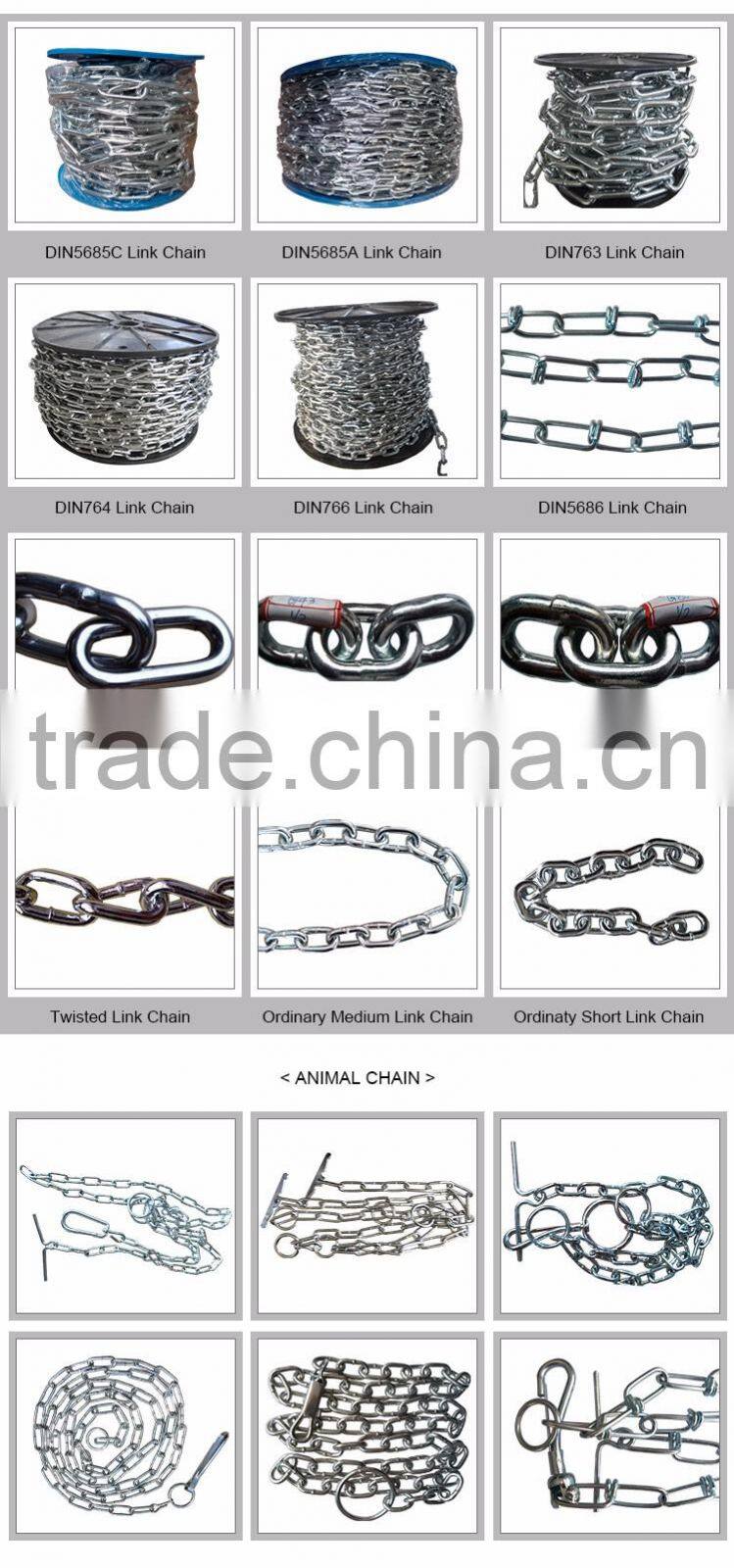

We can offer u all kinds of link chain:
1)DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link Chain
2)Ordinary Short,Medium Link Chain
3)Korean Standard Link Chain
4)ASTM80 Standard Link Chain
5)Norwegian Standard Link Chain
6)Australian Standard Link Chain
7)NACM1990 Standard Link Chain
8)NACM1996/2003 Standard Link Chain
9)Animal Link Chain
10)Stainless Steel Link Chain
11)Weldless Link Chain
12)G80 Link Chain
13)G43 Link Chain
Product Details

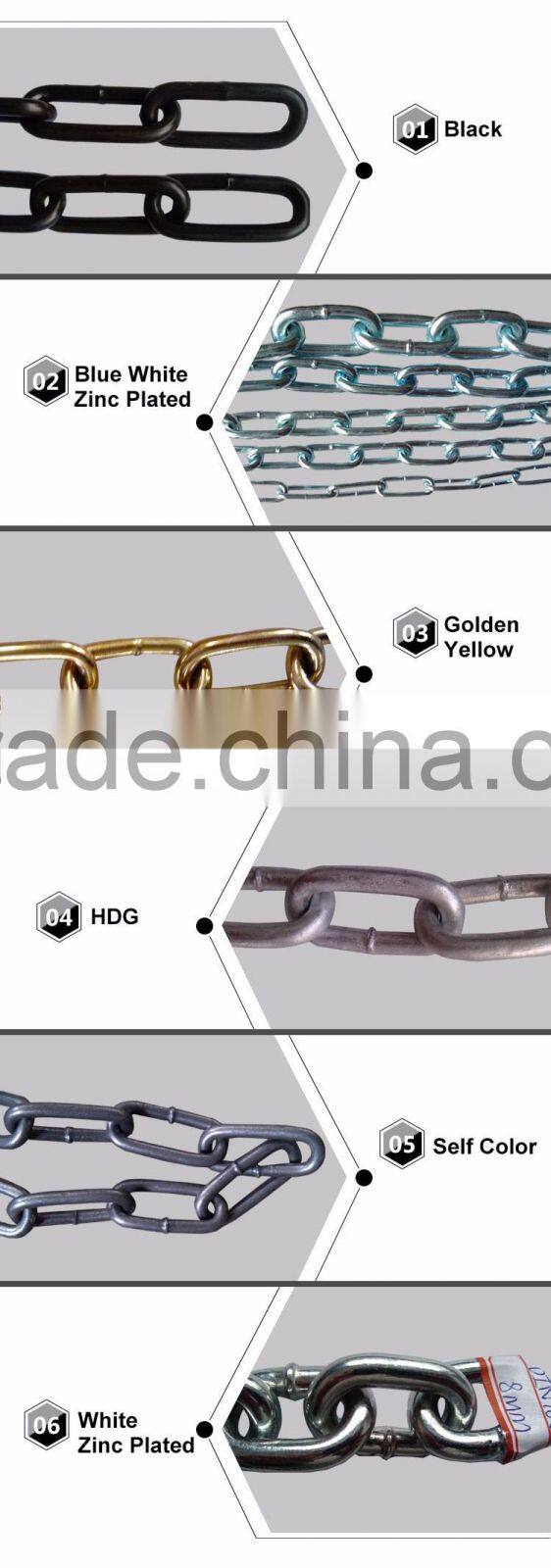

Surface Treatment

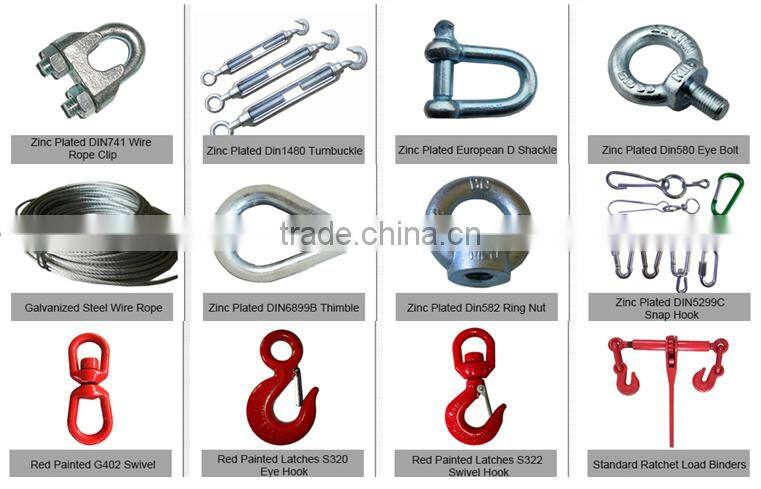

We also can offer u rigging hardware:

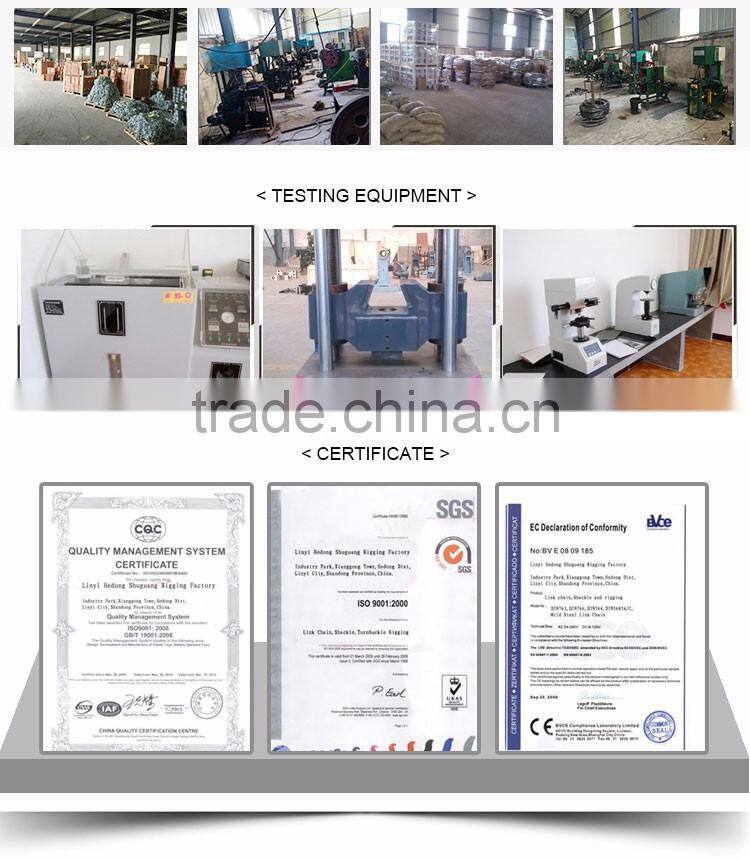

Production Process

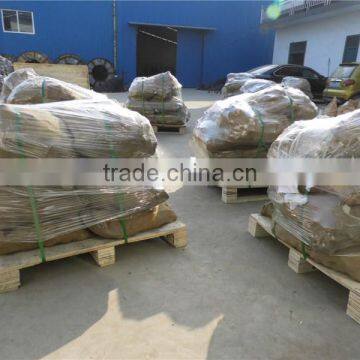

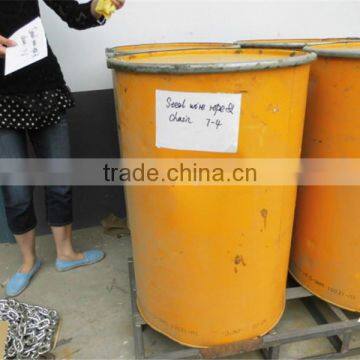

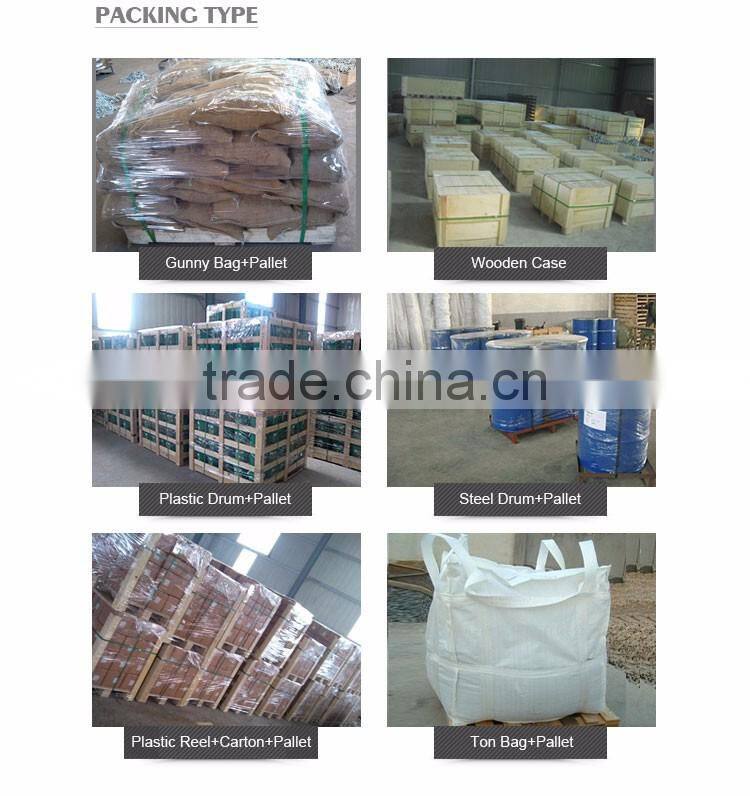

Packaging & Shipping

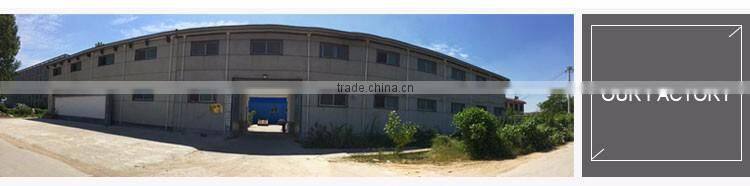

Company Information
Contact Us
- Linyi Hedong Shuguang Rigging Factory
- Contact nameMelody Liu Chat Now
- Phone86-0539-15725199659
- AddressQingdun Temple Village, Xiang Gong Office, Hedong Dist., Linyi, Shandong
