Grade 30 Proof Coil Chain
USD $1,200 - $2,500
/ Tonne
2 Tonnes(Min.Order)
- 200 Tonne / Tonnes per Month
- Qingdao
- T/T
You May Like
-
Proof Coil Chain ASTM80 (G30)
-
Supply High quality steel anchor galvanized short link chain
-
US Standard NACM84/90 iron chain/iron link chain /short link chain/long link chain
-
HIGH TEST STAINLESS STEEL LINK CHAIN LIFTING CHAIN USA G43
-
HIGH TEST US HARD STEEL LINK CHAIN FOR LIFTING CHAIN
-
HIGH QUALITY STAINLESS STEEL WELDED ROUND LINK CHAIN DIN763
Product Details
| Place of Origin | Shandong, China | Brand Name | Shuguang | |
| Model Number | G30 | Structure | Welded Chain | |
| Function | Other | Material | Other, carbon steel | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Grade 30 Proof Coil Chain1 Material:carbon steel
2 Finishes:self colored,HDG,E/Gv
3 Meet NACM/ASTM specification

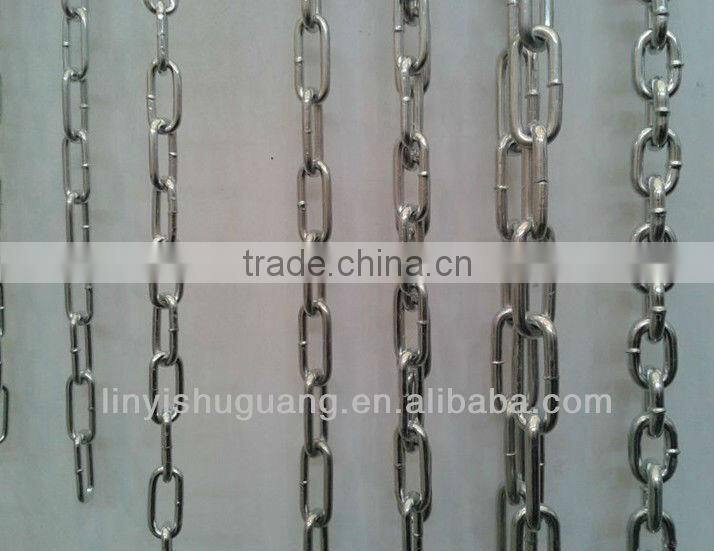

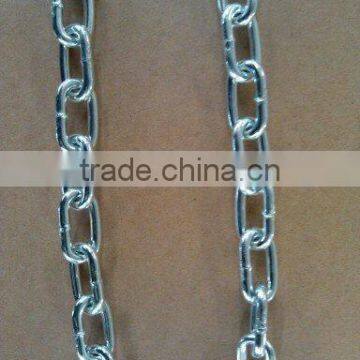

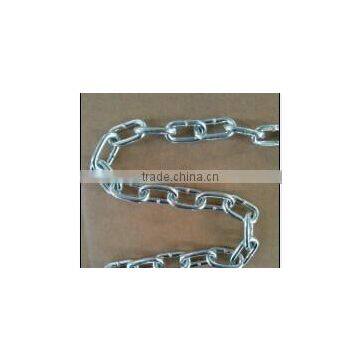

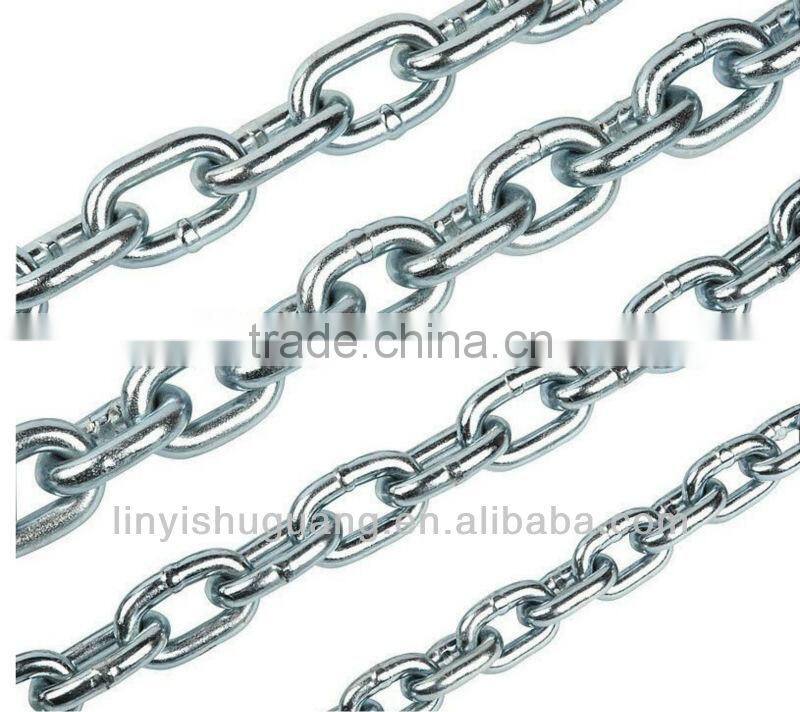

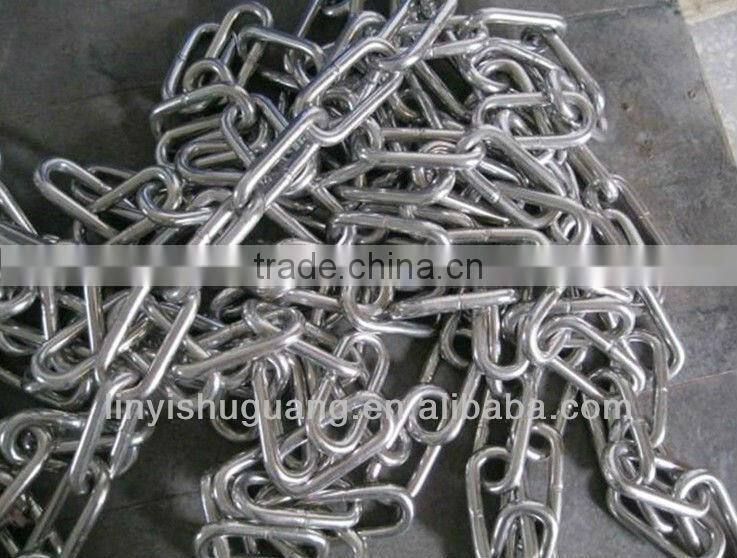

Grade 30 Proof Coil Chain
A general utility chain for farm,industry and home applications such as:pulling stumps, log chain, cargo lashing, pipe line hanging, tailgate, guard rail, tow and switch chain.
- Material:carbon steel
- Finishes:self-colored,HDG,zinc plated
- Attachments:chain can be supplied with any standard chain attachments such as rings,enlarged links,slip hooks,grab hooks,eye bolts,snaps, and S-hooks.
Grade 30 Specification
| MORMINAL SIZE | MATERIAL DIAMETER | WORKING LOAD LIMIT(MAX) | PROOF TEST (MIN) | BREAKING FORCE MIN | INSIDE LENGTH (MAX) | INSIDE WIDTH (MIN) | |||||||
| MM | IN | MM | IN | KG | LB | KN | LB | KN | LB | MM | IN | MM | IN |
| 4.0 | 1/8 | 4.0 | 0.156 | 180 | 400 | 3.6 | 800 | 7.2 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
| 5.5 | 3/16 | 5.5 | 0.217 | 365 | 800 | 7.2 | 1500 | 14.4 | 3200 | 24.8 | 0.98 | 7.7 | 0.30 |
| 7.0 | 1/4 | 7.0 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.2 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8.0 | 5/16 | 8.4 | 0.331 | 860 | 1900 | 16.9 | 3800 | 33.8 | 7600 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10.0 | 3/8 | 10.0 | 0.394 | 1200 | 2650 | 23.5 | 5300 | 47.2 | 10600 | 35.0 | 1.38 | 14.0 | 0.55 |
| 11.9 | 7/16 | 11.9 | 0.488 | 1680 | 3700 | 32.9 | 7400 | 65.8 | 14800 | 41.5 | 1.64 | 16.6 | 0.65 |
| 13.0 | 1/2 | 13.0 | 0.512 | 2030 | 4500 | 40.0 | 9000 | 80.0 | 18000 | 45.6 | 1.79 | 18.2 | 0.72 |
| 16.0 | 5/8 | 16.0 | 0.630 | 3130 | 6900 | 61.3 | 13800 | 122.8 | 27600 | 56.0 | 2.20 | 20.0 | 0.79 |
| 20.0 | 3/4 | 20.0 | 0.787 | 4800 | 10500 | 94.3 | 21200 | 188.6 | 42400 | 70.0 | 2.76 | 25.0 | 0.98 |
| 22.0 | 7/8 | 22.0 | 0.865 | 5810 | 12800 | 114.1 | 25600 | 228.2 | 51200 | 77.0 | 3.03 | 27.5 | 1.08 |
| 25.0 | 1 | 26.0 | 1.020 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |
