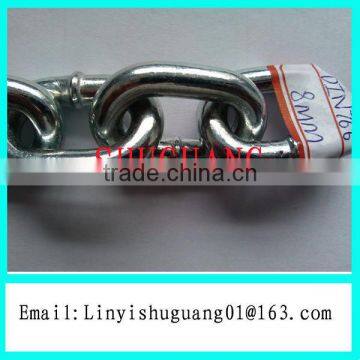

Shuguang Mild Steel Electric Galvanized DIN 766 Link Chain
- QINGDAO
- T/T Credit Card
You May Like
-
Electric Galvanized Black DIN763 Link Chain,Black Painted DIN763 Link Chain
-
G30 Mild Steel DIN766 Link Chain,Q235 DIN766 Short Steel Chain
-
G30 Q195 Bright Electro Galvanized Germany Standard DIN766 Link Chain
-
High Bright Zinc Plated Germany Standard DIN766 Short Chain
-
1.5mm Welded Electric Galvanized DIN766 Iron Chain
-
Linyi Manufacturer Supply Hot Dip Galvanized Hardware Lifting Chain
Product Details
| Place of Origin | Shandong, China | Brand Name | shuguang | |
| Model Number | DIN766 Link Chain | Structure | Welded Chain | |
| Function | Drag Chain | Material | Other, Q235,Q195,Carbon Steel | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
1.DIN763 Link Chain2.Certificate:ISO9001:2008
3.High Quality
4.Surface:Galvanized
1.About Us:
1)We have strong technical force,advanced equipment.
2)We produce regular steel link chains,high tensile chains,stainless chains.
knotted chains and animal chains,covering over 300 sizes and specifications.
3)Our products have been exported to the US,Canada,Europe and more than 20 countries and regions.
2.Brief Introduction:
| M.O.Q | 1Ton |
| Material | Q235,Q195,Carbon Steel,20Mn2 |
| Trade Terms | FOB,CIF,CFR |
| Payment | L/C,T/T,Western Union |
| Surface | Self Color,Zinc Plated,Black,HDG |
| Packaging | Gunny Bag,Steel Drum,Wooden Case,Pallet |
| Delivery Time | Within 30 days after received the 30% in advance by T/T |
3.Specification:
DIN766 Link Chain:
| Size | Inside Length | Inside Width | Outside Width | Length Per 11 Links | Weight Per M | |||||
| MM | ±MM | MM | +MM | -MM | MM | MM | MM | +MM | -MM | KG |
| 2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 | 0.07 |
| 3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 |
| 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 0.32 |
| 5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5 |
| 6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 |
| 7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 | 1.1 |
| 8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 |
| 9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 |
| 10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2 |
| 11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 | 2.7 |
| 12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.10 |
| 13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8 |
| 14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 |
| 16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 | 5.7 |
| 18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 |
| 19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 7.97 |
| 20 | 1.0 | 56 | 1.0 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 | 9.0 |
| 22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 11.0 |
| 23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 |
| 26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 |
4.We can offer the following products:
1)Weldless chain
2)Animal chain
3)Stainless steel link chain
4)G30 proof coil chain
5)Ordinary mild steel link chain
6)Norwegian standard link chain
7)Korean standard link chain
8)NACM1990 standard link chain
9)ASTM80 standard link chain
10)NACM96 standard link chain
11)Australian standard link chain
12)DIN5685,DIN764,DIN763,DIN766
5.Products Pictures:
6.Factory and Equipment:
7.Packaging & Shipping:
Reel+Pallet/Wooden
Steel Drum+Pallet
Wooden Case+Pallet
Gunny Bag+Pallet
Plastic Drum+Pallet
Carton+Pallet
And we can pack according to your requirements
8.Please contact me:
Contact Us
- Linyi Hedong Shuguang Rigging Factory
- Contact nameMelody Liu Chat Now
- Phone86-0539-15725199659
- AddressQingdun Temple Village, Xiang Gong Office, Hedong Dist., Linyi, Shandong
