Home > Products > DIN766 Link Chain > 8mm Electro Galvanized DIN766 Decorative Metal Chain

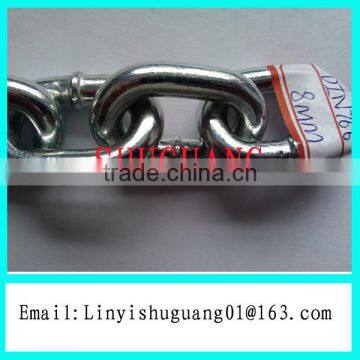

8mm Electro Galvanized DIN766 Decorative Metal Chain
USD $1,203 - $3,000
/ Ton
1 Ton(Min.Order)
- QINGDAO
- T/T Credit Card
You May Like
-
2mm Smooth Welded Electric Galvanized DIN766 Short Chain
-
Hot Dip Galvanized DIN766 Short Link Chain On Hot Selling
-
GALV. SHORT LINK CHAIN DIN766 LINK CHAIN
-
Factory supply electro galvanized welded DIN766 Link Chain
-
Galvanized G30 Chain Ordinary Mild Steel Link Chain With Good Quality
-
Germany standard Link Chains
Product Details
| Place of Origin | Shandong, China | Brand Name | Shuguang | |
| Model Number | DIN766 Link Chain | Structure | Welded Chain | |
| Function | Drag Chain | Material | Other, Q235,Q195,Carbon Steel | |
| Standard or Nonstandard | Standard |
Product Description
1.Company Information:
1)We have strong technical force,advanced equipment.
2)We produce regular steel link chains,high tensile chains,stainless chains.
knotted chains and animal chains,covering over 300 sizes and specifications.
3)Our products have been exported to the US,Canada,Europe and more than 20 countries and regions.
2.Product Description:
| M.O.Q | 1Ton |
| Trade Terms | FOB,CIF,CFR |
| Payment | L/C,T/T,Western Union |
| Material | AlQ235,Q195,Carbon Steel,20Mn2 |
| Packaging | Gunny Bag,Steel Drum,Wooden Case,Pallet |
| Surface | Self Color,Zinc Plated,Black,HDG |
| Delivery Time | Within 30 days after received the 30% in advance by T/T |
Specification:
Germany DIN766 Link Chain:
| Size | Inside Length | Inside Width | Outside Width | Length Per 11 Links | Weight Per M | |||||
| MM | ±MM | MM | +MM | -MM | MM | MM | MM | +MM | -MM | KG |
| 2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 | 0.07 |
| 3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 |
| 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 0.32 |
| 5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5 |
| 6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 |
| 7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 | 1.1 |
| 8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 |
| 9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 |
| 10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2 |
| 11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 | 2.7 |
| 12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.10 |
| 13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8 |
| 14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 |
| 16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 | 5.7 |
| 18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 |
| 19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 7.97 |
| 20 | 1.0 | 56 | 1.0 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 | 9.0 |
| 22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 11.0 |
| 23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 |
| 26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 |
3.Our Services:
We can offer the following products:
1)Weldless chain
2)Animal chain
3)Stainless steel link chain
4)G30 proof coil chain
5)Ordinary mild steel link chain
6)Norwegian standard link chain
7)Korean standard link chain
8)NACM1990 standard link chain
9)ASTM80 standard link chain
10)NACM96 standard link chain
11)Australian standard link chain
12)DIN5685,DIN764,DIN763,DIN766
Products Pictures:
4.Certificate:
5.Factory and Equipment:
6.Packaging & Shipping:
And we can pack according to your requirements
7.Please contact me:
