Home > Products > Cable Roller,corner roller,cable laying rollers > YT004 High Heavy Roller

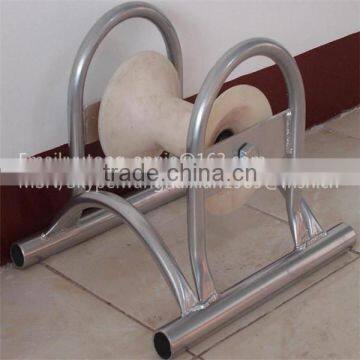

YT004 High Heavy Roller
- TIANJIN
You May Like
Product Details
| Type | Round Belt | Material | Nylon | |
| Place of Origin | Hebei, China | Brand Name | YUFENG | |
| Model Number | YT004 |
Product Description
1.Application
Used for guiding cable to turn and set free.
and used for setting power cable and communication cable in trenchers or on ground.
2.Feature
Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. So the cable can laying well enough to laying.
3.Detailed Description
Nylon cable laying rollers Use in laying cable on ground protect cable not to wear.
Divides into according to the material quality: Alloy wheels and MC nylon wheels
Type: Tubular and plate
4.Date Sheet

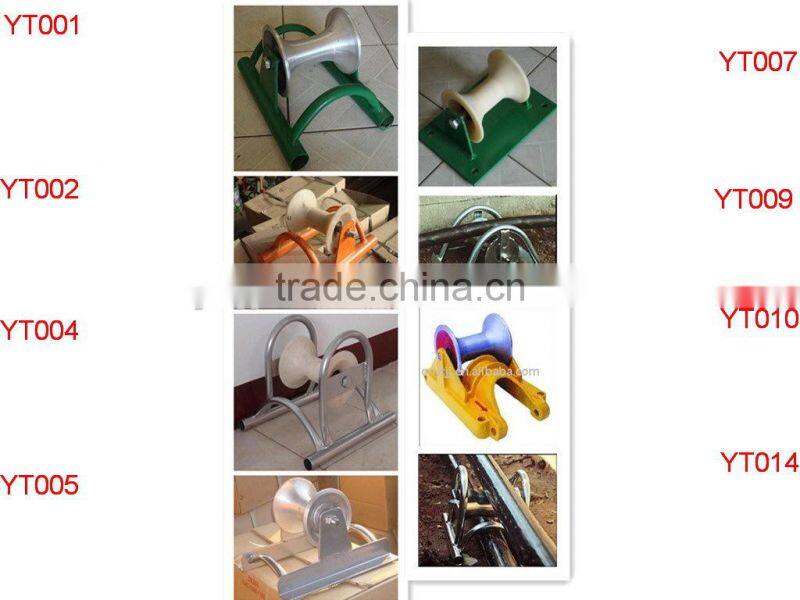

Product No. | Length(mm) | Width(mm) | Height(mm) | Weight(mm) | Payload Max |
YT001 | 330 | 240 | 185 | 4.5 | 12KN |
YT002 | 330 | 280 | 185 | 4.5 | 12KN |
YT004 | 330 | 280 | 240 | 4.2 | 12KN |
YT005 | 300 | 280 | 180 | 4.6 | 12KN |
YT007 | 280 | 260 | 180 | 4.0 | 12KN |
YT009 | 350 | 280 | 180 | 4.2 | 12KN |
YT010 | 350 | 280 | 180 | 4.5 | 12KN |
YT014 | 320 | 280 | 280 | 4.3 | 12KN |
5.company service
We offer high quality cable roller, which used for laying large electric power cable and fiber cable and so on.
Contact us if you have any requirements. There we can make products as your special requirements.
YT001 Cable roller & Straight Line cable roller & cable laying roller
YT002 nylon cable laying rollers
YT004 Nylon Cable Rollers, straight line cable roller, heavy cable roller
YT005 Angle iron cable lying roller
YT007 Ground Roller
YT009 cable laying rollers
YT010 cable laying rollers
YT014 cable laying rollers
duct rodder fiberglass duct rodder cable cutter cable drum stand
hydraulic cable drum cable reel stand cable wire grip measuring wheel
cable drum trailer corner cable roller cable roller steel Wire drum trailer
