Home > Products > Cable Roller,corner roller,cable laying rollers > YT011 Cable Laying Rollers
YT011 Cable Laying Rollers
- Chinese Port
- Credit Card
You May Like
Product Details
| Material | Stainless Steel | Place of Origin | Hebei, China | |
| Brand Name | YUFENG | Model Number | YT011 |
Product Description
Specifications
YT011 cable laying rollerssturdy and durable
using flexibly and conveniently.
quality of our products is guaranteed
YT011 cable laying rollers
cable rollers for sale,cable pulley roller,electrical cable roller
1.Application
Used for guiding cable to turn and set free.
and used for setting power cable and communication cable in trenchers or on ground.
2.Feature
Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. So the cable can laying well enough to laying.
3.Detailed Description
Nylon cable laying rollers Use in laying cable on ground protect cable not to wear.
Divides into according to the material quality: Alloy wheels and MC nylon wheels
Type: Tubular and plate
4.Date Sheet
Cat. No. | Rated Load (KN) | Max. Cable diameters. (mm) | Weight (kg) |
No.YT011 | 20 | 90 | 5 |
No.YT012 | 20 | 100 | 4.8 |

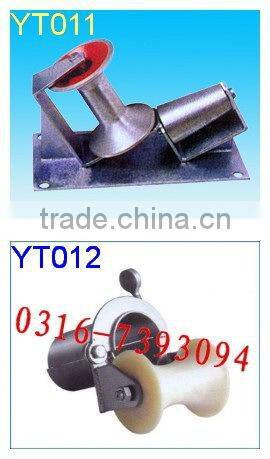

No.YT011 Corner Roller & cable roller
No.YT012 Guide cable laying rollers
Named: Guide cable laying roller
Product No. | Tube diameters(mm) | Weight (kg) |
YT012-80 | 80 | 3.4 |
YT012-90 | 90 | 3.6 |
YT012-100 | 100 | 3.7 |
YT012-130 | 130 | 5.5 |
YT012-150 | 150 | 5.7 |
YT012-200 | 200 | 7.2 |
5.company service
We offer high quality cable roller, which used for laying large electric power cable and fiber cable and so on.
Contact us if you have any requirements. There we can make products as your special requirements.
duct rodder fiberglass duct rodder cable cutter cable drum stand
hydraulic cable drum cable reel stand cable wire grip measuring wheel
cable drum trailer corner cable roller cable roller steel Wire drum trailer
