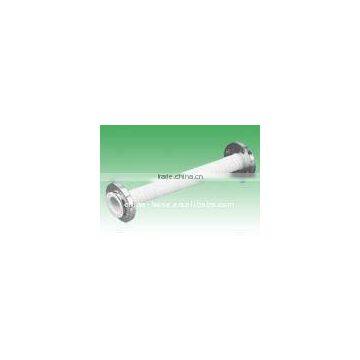

PTFE hose flange Type - LS204
US$ 0.56 - 16
/ Meter
500 Meters(Min. Order)
- Ttianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | zhongbo or oem | |
| Model Number | LS204 |
Product Description
Specifications
Chemical proofResistant to high & low temperature
Anti aging
Non viscous
Well-insulated
Instruction
Material: Teflon (PTFE)
The tube is teflon screw tube.
The tube is very soft, Min. bending radius is much smaller than general teflon tube
Flanges on both ends, portion in contact with liquid is Teflon
Temperature recommendation: below 80 centigrade
Specification:
| Nominal Diameter | General Length on both ends(mm) | Working pressure | Min. Bending Radius | Weight | Length | ||||
| mm | inch | Inner Diameter | Outside Diameter | Thickness | kgf/cm2 | Mpa | mm | kg/m | m |
| 15 | 1/2 | 15 | 23 | 1.5 | 3.0 | 0.29 | 50 | 0.3 | 4 |
| 20 | 3/4 | 19 | 31 | 1.5 | 2.5 | 0.24 | 70 | 0.3 | 4 |
| 25 | 1 | 25 | 36 | 1.5 | 2.5 | 0.24 | 80 | 0.4 | 4 |
| 32 | 1 1/4 | 30 | 42 | 1.5 | 2.0 | 0.19 | 100 | 0.5 | 4 |
| 40 | 1 1/2 | 38 | 53 | 2.0 | 1.5 | 0.14 | 150 | 1.0 | 4 |
| 50 | 2 | 50 | 64 | 2.0 | 1.5 | 0.14 | 250 | 1.1 | 4 |
| 65 | 2 1/2 | 65 | 81 | 2.0 | 1.5 | 0.14 | 300 | 1.1 | 3 |
| 80 | 3 | 75 | 93 | 2.0 | 1.0 | 0.09 | 400 | 1.5 | 3 |
| 100 | 4 | 86 | 106 | 2.0 | 1.0 | 0.09 | 500 | 1.7 | 3 |
| 125 | 5 | 107 | 131 | 2.5 | 1.0 | 0.09 | 600 | 4.1 | 3 |
| 150 | 6 | 127 | 156 | 3.0 | 1.0 | 0.09 | 700 | 4.5 | 3 |
