Home > Products > PTFE Hose and Teflon Hose > Corrugated Bore PTFE Hose

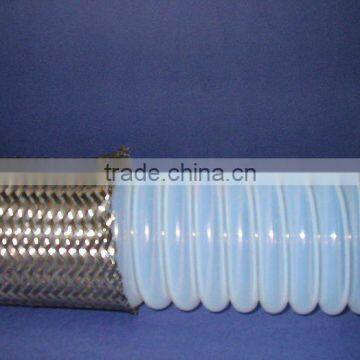

Corrugated Bore PTFE Hose
Negotiable
/ Meter
500 Meters(Min. Order)
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Zhongbo | |
| Model Number | SAE 100 R14 |
Product Description
Specifications
1.Top quality,2.Competitive price ,
3.Best service;
4.High pressure rubber hose;
5.ISO9001,ISO/TS16949.
PTFE Hoses
Features: PTFE extruded hose reinforced with stainless steel wires braiding, and both sides fitted with metal connectors.
Inner tube: PTFE extruded hose,features as high and low temperature resistant, anti-corrosion, anti-stickness.
Outer Sheath: Stainless Steel SS304 braiding net, improve its pressure resistance,and connected with fast connectors.
Working Temperature range: constant temperature -50°C~ +210°C, short time temperature -70°C~ +260°C.
Application:
- for hydraulic, steam pressure,steaming feeding purpose in rubber, plastic, garment, auto, machine tools, diesel motor and electric motor.
- paper manufacturing and shipbuilding industries etc.
- it has better performance and lifespan in feeding hot/cold liquid and gas,strong corrosive mediums.
| Size | ID | OD | Wall thickness | Working pressure | Min. breaking pressure (Kg/cm2) | Min. Bending radius |
| ID(mm) | (mm) | (mm) | (mm) | (Kg/cm2) | (mm ± 3mm) | |
| 5 | 4.64-5.17 | 7.29-8.48 | 0.75 | 256 | 625 | 76 |
| 6 | 5.96-6.83 | 8.22-9.46 | 0.76 | 232 | 552 | 81 |
| 8 | 7.55-8.39 | 10.31-11.71 | 0.80 | 194 | 540 | 131 |
| 10 | 9.91-10.67 | 12.73-14.18 | 0.89 | 162 | 452 | 182 |
| 13 | 12.54-13.37 | 15.72-16.73 | 0.95 | 139 | 425 | 211 |
| 16 | 15.19-16.59 | 18.57-20.18 | 1.00 | 101 | 385 | 252 |
| 19 | 18.75-20.78 | 22.15-23.77 | 1.20 | 97 | 310 | 342 |
| 22 | 21.39-23.05 | 24.59-27.03 | 1.50 | 93 | 240 | 421 |
| 25 | 24.25-25.85 | 28.45-29.65 | 1.50 | 78 | 200 | 501 |
As a manufacturer, so you can get the lowest price
from us. Just contact me now!
Contact Us
- Hengshui Bettis Rubber And Plastic Co., Ltd.
- Contact nameEric Wang Chat Now
- Phone86-318-8082222
- AddressNO.1449 West of YongAn road, Hengshui, Hebei
