Hydraulic Combined Punching Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

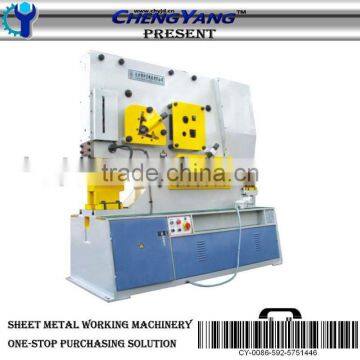

product name	QA35Y-30 HYDRAULIC COMBINED PUNCHING & SHEARING MACHINE WITH NOTCH
clicks	10 times
Products Detail Information

MAIN THCHNICAL SPECIFICATIONS

Item	Unit	QA35Y-30
Shearing	mm
Flat bar (W×T)	mm	250×30.450×20,750×8
Spuare bar	mm	80×80
Round bar	mm	Φ80
Joist (Type)		28#
Channel (Type)		28#
T-bar (Type)	mm	120×12
Cutting of angle steel at 90°	mm	200×200×18
Cutting of angle steel at Cu45°	mm	100×100×10
Punching(D×T)	mm	Φ30×20,Φ40×20
Anble fltange(L×W×H)	mm	120×72×18
Punching force	KN	1200
Depth of throat	mm	450
Max.length stroke	mm	80
stroke times	per/min	7~28
Motor Power	kw	11
Net weight	kg	5800
Overall dimensions(L×W×H)	mm	2200×1020×2116
Packing department dimensions (L×W×H)	mm	2240×1400×2200

NOTE1,Based on materrial strength of 45kg/mm tensile

2,Design and specifications subject to change without notice.
