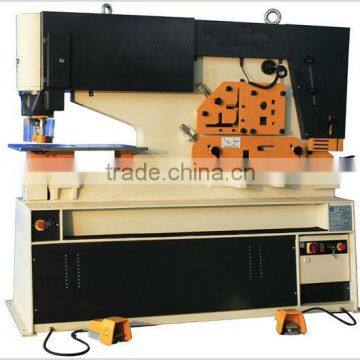

Hydraulic Combined punching machine
Negotiable
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Xiamen Port China
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Hydraulic | Place of Origin | Fujian, China | |
| Brand Name | chengyang | Model Number | HKR-70 | |
| Power(W) | 5.5Kw | Weight | 1620 | |
| Dimension(L*W*H) | 1640*710*1800mm | Certification | CE |
Product Description
Hydraulic Combined punching and Shearing machine
Main Parameter
| Model | Unit | MHM 70 | MHM95 | MHM125 |
| Rated Capacity | 70T | 95T | 125T | |
| PUNCHING | ||||
| Max.Capacity | mm | 26*20 | 27*25 | 35*25 |
| Diameter & Thickness | mm | 57*9 | 57*12 | 67*16 |
| Travel | mm | 55 | 80 | 80 |
| Standard Throat Depth | mm | 305 | 355 | 355 |
| Deep Throat( optional) | mm | 625 | 625 | 625 |
| Standard Max.Punch | mm | 57 | 57 | 57 |
| Optional Max.Punch | mm | 160 | 160 | 225 |
| Max.Beam size | mm | 305 | 305 | 305 |
| SHEARING | ||||
| Plate Thickness | mm | 300*20 | 380*20 | 380*25 |
| Max.sheet Width | mm | 375*15 | 480*15 | 600*15 |
| 45°angle shear,Max.45° | mm | 100*15 | 120*15 | 120*15 |
| Angle Cutting | ||||
| 90°CUT | mm | 130*13 | 150*15 | 150*18 |
| 45°CUT | mm | 70*10 | 80*10 | 80*10 |
| SECTION CUTTING | ||||
| Round bar/Square steel | mm | 45 | 50 | 55 |
| Channel/H-Beam* | mm | 130*65 | 160*90 | 200*100 |
| T-Beam* | mm | 90*12 | 100*12 | 120*12 |
| NOTCHING | ||||
| Plate Thickness | mm | 12 | 13 | 13 |
| Width-Rectangle | mm | 45 | 52 | 60 |
| Deep-Rectangle | mm | 90 | 100 | 100 |
| Deep-V-Shaped | mm | 60 | 70 | 80 |
| Trimming | mm | 100*10 | 100*13 | 100*13 |
| CORNER NOTCH* | ||||
| Notching Max.Capacity | mm | 250*6 | 250*6 | 250*6 |
| TUBE NOTCH | ||||
| Max.pipe diameter | mm | 83 | 108 | 108 |
| BENDING | ||||
| Flat Steel Bending | mm | 250*13 | 250*20 | 250*22 |
| Plate bending | mm | 500*3 | 500*3 | 700*3 |
| PUNCHING AT NOTCH STATION | ||||
| Deep throat | mm | 125 | 125 | 125 |
| Max.Capacity | mm | 38*8 | 38*10 | 38*12 |
| TECHNICAL DATA | ||||
| Motor power | kw | 5.5 | 7.5 | 7.5 |
| Machine net weight | kg | 1620/1990 | 2430/2880 | 3100/3620 |
| Machine dimensions(L.W.H) | cm | 164*71*180 | 190*79*191 | 200*80*203 |
Working Capacity
Optional Configuration
Auto feeding table and CNC control system ( as a reference)
