Product Description

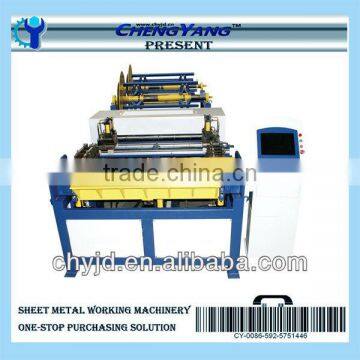

Name: Super Auto rectangle Duct Manufacture Line 3

Basic information:

1. Super Auto Duct Line 3 can complete the 7mm small right angle edge for the angle steel flange.

Sheets with the angle steel flange and TDC flange can be folded into the retangular duct on the

machine automatically. It is especially suitable for the duct manufacturing for fire prevention and

exhausting,

2. Chinese and English can be easily converted.

3. Max feeding speed is 15m/min. Length tolerance is ±0.5mm, diagonal tolerance is ±0.8mm.

Basic configuration:

1. A decoiler(2 coilers; max loading per coiler is 7 tons)

2. A matrial guiding frame

3. A main machine

4. A CNC system

Main technical data:

No.	Model	Capacity in mild-steel thickness range(mm)	Max-width (standard) (mm)	Max-working speed (m/min)	Coiler max-weight(Kg)	Dimensions (mm)			Power (Kw)	Weight (Kg)
No.	Model	Capacity in mild-steel thickness range(mm)	Max-width (standard) (mm)	Max-working speed (m/min)	Coiler max-weight(Kg)	L	W	H	Power (Kw)	Weight (Kg)
1003-1	ADL-3S-1250	0.5-1.2	1250	15	7000	2800 2500	1800 1800	1300 1500	10	3500
1003-2	ADL-3S-1500	0.5-1.2	1500	15	7000	2800 2500	2000 2200	1300 1500	11	4000

Work flow:
