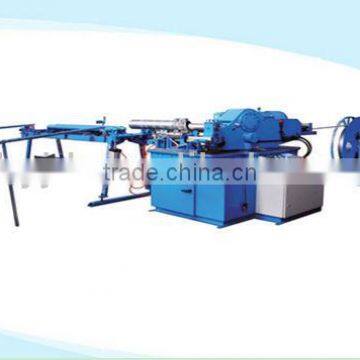

Spiral Tube Forming Machine Series
- 0 per Month
- T/T
You May Like
Product Details
| Brand Name | Chengyang | Model Number | SBTF -1602 | |
| Dimension(L*W*H) | 3000mm*1950mm*1700mm | Weight | 2900kg | |
| Certification | CE | Condition | New |
Product Description
1.The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.
2.The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.
3.The outstanding patented flying slitter cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without burring
4.The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum
5.The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.
Technical data:
Diameter range | 80 – 1600mm |
Thickness of strip
| 0.4 -1.3mm Galvanized steel |
0.8mm Sinless steel | |
0.4-1.2mm Aluminum | |
Strip Width | standard 137mm up to 1mm thickness; 140mm above. Other widths on request. |
Locker seam | Outside tube, on the inside on request. |
Production speed | Max. 60 meters/min. depending on material |
Cutting system | The patented flying slitter |
Net weight | 2900kg |
Gross weight | 3200kg |
Machine dimension | 3000mm*1950mm*1700mm |
Package dimension | 3050mm*2000mm*1800mm |
Options | Automatic length control system, controlled corrugation unit. METU flange slitter Saw blade cutter |
Forming head technical data:
Inside Diameter in mm | ||
DIN | 80/90/100/125/160/180/200 | |
DIN | 224/250/280/300/315/355/400 | |
DIN | 450/500/560/600 | |
DIN | 630/710/800 | |
DIN | 900/1000/1120/1250 | |
DIN | 1400/1500/1600 | |
DIN | 1800/1900/2000/2100/2300/2500 | |
