Home > Products > Duct Machinery > TDF Manual Sheet Metal Folding Machine

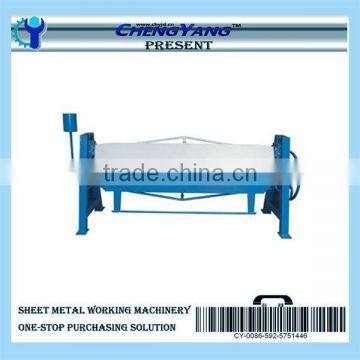

TDF Manual Sheet Metal Folding Machine
Negotiable
/ Set
1 Set(Min.Order)
You May Like
-
Pittsburgh Lock Machine LC-15DR, Lock making Machine,lock former machine LC-15DR
-
Super Auto rectangle Duct Manufacture Line 3
-
Auto Duct Line 3 for TDF flange, angle steel flange and the TDC flange
-
rectangular making duct production line 3 Auto Duct Line 3
-
sheet metal Auto Duct making machine
-
Super Auto square Duct manufacture Line 3
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | Chengyang | Model Number | WS-1.5*1300 TDF | |
| Machine Type | Press Brake | Raw Material | Other, Sheet Metal | |
| Material / Metal Processed | Other, Carbon Steel/Stainless Steel/Galvanized Steel etc. | Power | Other, Manual | |
| Automation | Manual | Extra Services | Other, Folding | |
| Certification | ISO 9001:2000 |
Product Description
Hand Folder Machine
Features:
1. Hand folders are of many types and incorporate all the outstanding features found in products of this series. Their strong points are that both its up and down movements are adjustable.
2. The TDF hand folder machine has cam lock series and gear lock series. TDF hand folder is suitable for duct making.
Notice: “ A” model is CAM lock series.
Main Technical Data:
| Model | Thickness for mild steel mm | Bending Length mm | Min. Bending Space mm | Weight kg | Dimension L.W.H mm |
| WS-1.5*1300 TDF | 1.5 | 1300 | 200*200mm | 390 | 1800*750*1370 |
| WS-1.5*1300A TDF | 1.5 | 1300 | 200*200mm | 320 | 1800*750*1370 |
| WS-1.5*2000A TDF | 1.5 | 2000 | 200*200mm | 700 | 2860*820*1370 |
| WS-1.5*2000 TDF | 1.5 | 2000 | 200*200mm | 780 | 2860*820*1370 |
| WS-1.5*2500 TDF | 1.5 | 2500 | 200*300mm | 1200 | 3150*820*1530 |
Application:
1. Making Pan or Box ( Four Sides and One bottom).
2. Making Air Duct
