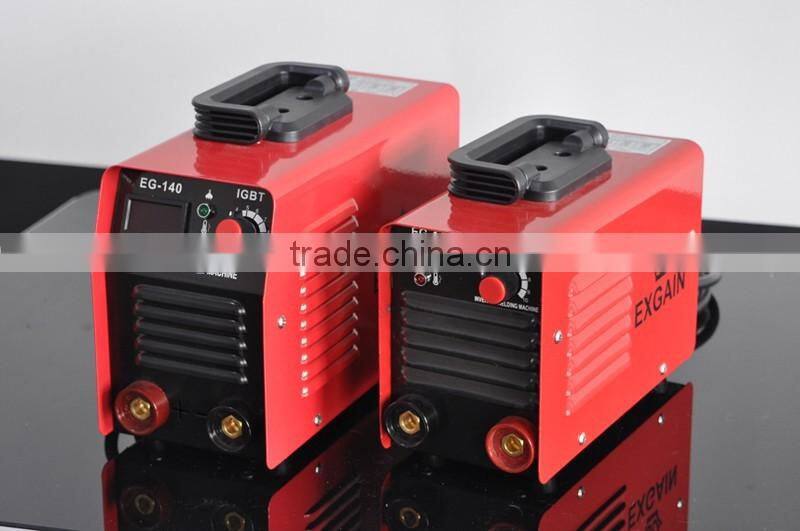

High Quality Portable Inverter Exgain Pvc Welding Machines Made in China
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
-
Portable Welding Machine Price ARC-200 for Workshop
-
Inverter EXGAIN Welding Machine Gold Manufacturer From Wenling Exgain, China
-
2016 Star Model -- Plastic MMA Welding Machine MMA 180 Inverter Type IGBT
-
Igbt Inverter Electrode Welding Machine Mma 140 From EXGAIN in China
-
WiFi Robot Mower E1600 From Www.exgain-tech.com
-
2017 Latest Lithium-ion Robotic Lawn Mower E1600 With EMC,LVD Approval
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | EXGAIN | Model Number | EG-140 | |
| Arc Current | 20-140A | Pulse Frequency | 50/60 HZ | |
| Rated Duty Cycle | 60% | Dimensions | 310x120x205MM | |
| Usage | Welding | Voltage | 190-240VAC | |
| Power(W) | 6KW | Certification | CE,EMC,LVD.ROHS | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Portable Inverter exgain pvc welding machines Made in China
--Feature:
1.Large output power:
2.Big welding thrust:
Easier to start welding; Not easy to stick under small welding current, deep welding poor.
3.Arc is strong and the stiffness is good.
4.Using Inner characteristics control mode for responding quickly to changes in arc length so that the arc not easy to break.
5.Using peak current control mode; Power device can work reliably even if the frequent impact of short-circuit.
6.High maximum output voltage; long arc, the ability of anti-voltage fluctuations is strong.
7.PCB surface coated with insulating paint for preventing erosion by humid and corrosive gases.
8.Single knob adjustment for simple and convenient operation.
9.Inverter technology for energy-saving.
--Specification:

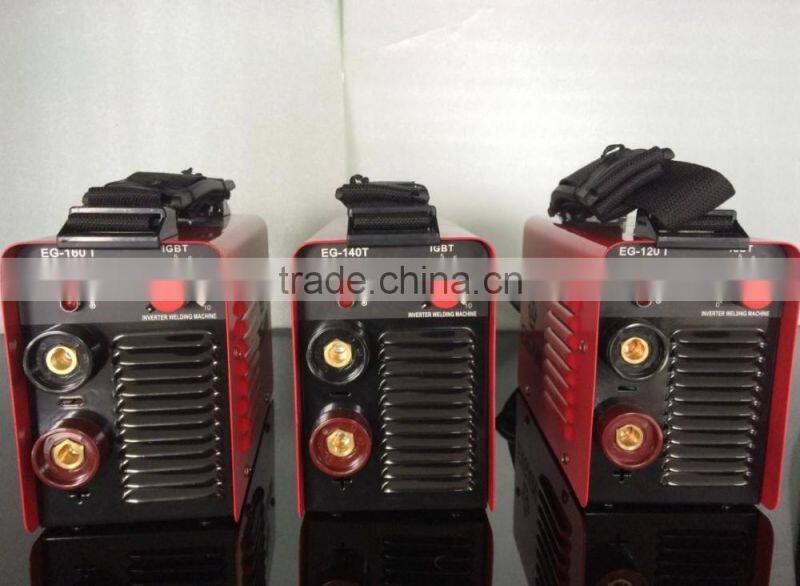

| Model Specification | EG-120T | EG-140T | EG-160T | EG-140 | EG-140A | EG-160 | EG-160A | EG-180 | EG-180A | EG-200 | EG-200A |
| Power Transistor | IGBT | IGBT | IGBT | IGBT | IGBT | ||||||
| Input Voltage | 190-240V | 190-240V | 190-240V | 190-240V | 190-240V | ||||||
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
| Rated input capacity | 4.9KVA | 6KVA | 6.8KVA | 6KVA | 6.8KVA | 7.9KVA | 8.8KVA | ||||
| Rated input current | 22.3A | 27.2A | 31A | 27.2A | 31A | 36A | 40A | ||||
| Output Frequency | 32KHz | 50KHz | 50KHz | 50KHz | 50KHz | ||||||
| NO-load voltage | 60±3V | 65±3V | 65±3V | 65±3V | 65±3V | ||||||
| Load voltage | 20.8-25.6V | 20.8-25.6V | 20.8-26.4V | 20.8-25.6V | 20.8-26.4V | 20.8-27.2V | 20.8-28V | ||||
| Digital Display | × | × | × | √ | √ | √ | √ | ||||
| Output Current | 20-120A | 20-140A | 20-160A | 20-140A | 20-160A | 20-180A | 20-200A | ||||
| Electrode Dia. | ≤3.2mm | ≤3.2mm | ≤4.0mm | ≤3.2mm | ≤4.0mm | ≤4.0mm | ≤5.0mm | ||||
| Rated duty cycle | 60% | 60% | 45% | 60% | 60% | 45% | 60% | 50% | 50% | 40% | |
| Power wire len. | 2M | 2M | 2M | 2M | 2M | ||||||
| Plug | √ | √ | √ | × | × | ||||||
| N.W. | 2.8KG | 3.0KG | 3.2KG | 4.8KG | 4.8KG | 7.5KG | 7.5KG | ||||
| Size(LxWxH)mm | 230x105x160 | 310x120x205 | 310x120x205 | 390x135x285 | 390x135x285 | ||||||
| Certificate | CE ROHS | ||||||||||
| Packing size(LxWxH)mm | 310x215x220 | 340x215x230 | 340x215x230 | 400x220x310 | 400x220x310 | ||||||
| 20' | 1870 | 1710 | 1710 | 994 | 994 | ||||||
| 40' | 3960 | 3650 | 3650 | 2100 | 2100 | ||||||
| 40'HQ | 4752 | 4015 | 4015 | 2400 | 2400 | ||||||

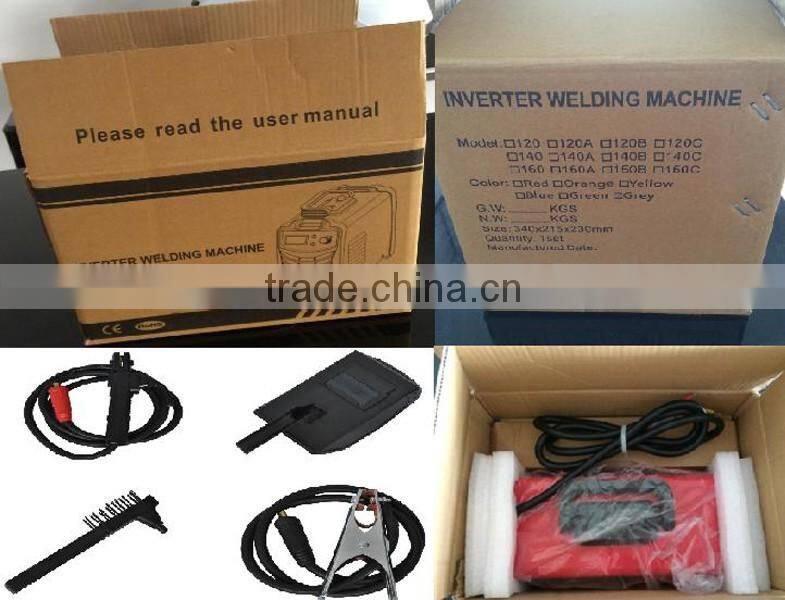

--Standard accessories&Packing:
accessories:
1.8m 200A electrode holder,1.2m 200A earth clamp,brush, mask
--Why choose us?
1.Self-developed technic
2. customization service
3.Prompt delivery
4.Productions tested one by one
5.independent R&D group to support best services
--Factory View:

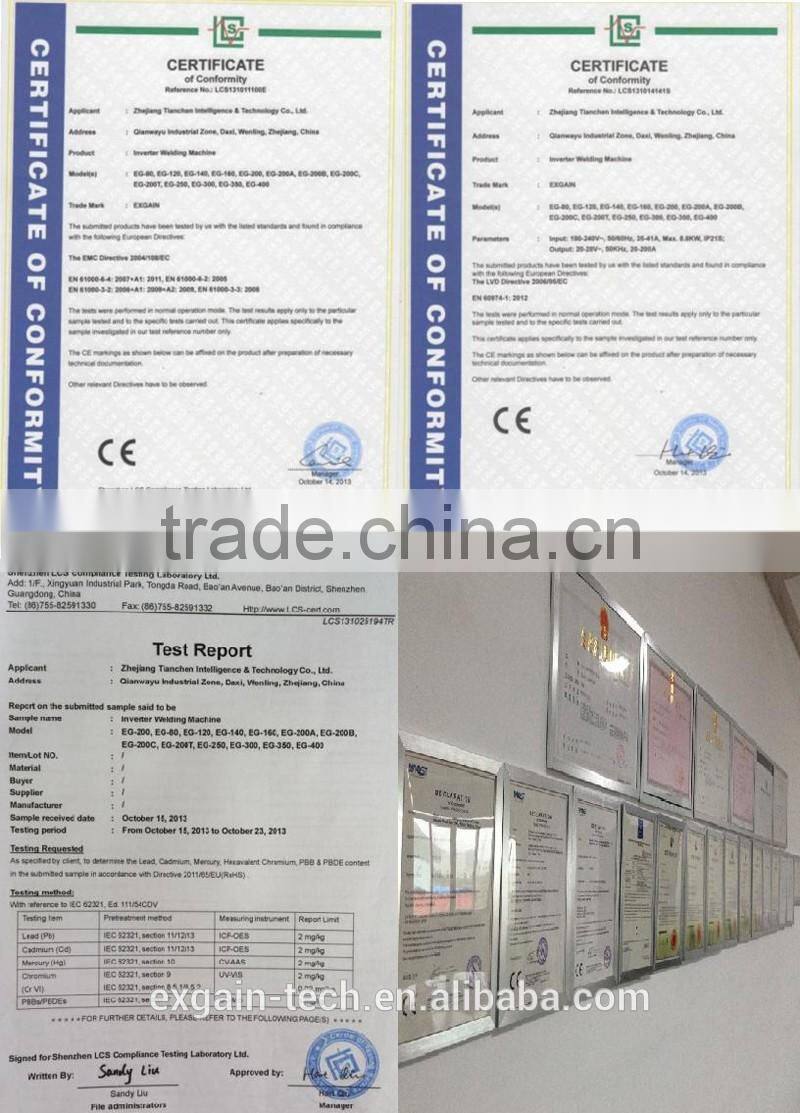

--Certificates:
