Heat Shrink Tunnel Shrink Wrap Heater

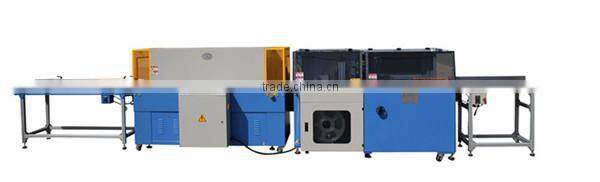

SF5545 heat shrink tunnel shrink wrap heater

 it is suitable for high speed shrink packing of any packages: book ,magazine,box,food,roll paper......It’s formed by four units :automatic loading unit,automatic cutting and sealing unit,heat circulating shrink stove/shrink tunnel and automatic unloading units.This composition has the advantage of high efficiency and low cost,should be an ideal production machine for and packing industry.

Packing for :

Video:

http://youtu.be/-TmCxLw6O_U

Features

Automatic book loading,avoiding mistake led by manual operation.Four units could be moved separately according to production layout.

Automatic film feeding at any step.Adjusted by electric eyes (switching between horizontal and vertical group)and timing device,to guarantee

Stable packing,cutting and sealing process,Continuous hot cutting by Teflon coated constant temperature blade at any step,transferring speed is 1m/sec.high quality,high speed,no adhesion,no breakage,zero consumption.

Integrated heat controlling system,heat circulating shrink stove,free adjusted wind direction,double layers.

Technical parameters

Packaging size range (mm):(L)unlimited×(W)60-450×(H)5-150

Max Mechanical speed:0-60m/min

Outline sizes(mm):6680×1580×1430

Total power:17kw

Factory

ce

ISO

Exhibition

Package and delivery

FAQ

  Q:when you delivery the machine?

  A: we have storck.we will delivery the machine once we get prepayment

  Q: What package material is used ?

  A: it is heat shrink wrap film ,the material is POF/BOPP/PE

  Q:How about the after sale service?

  A: You can send email or call us when have problem,also we will arrange our engineer make door-to-      door service.
