Home > Products > FHD LCD Controller Board > LED Display Control Board With VGA and HDMI for FHD
LED Display Control Board With VGA and HDMI for FHD
- Shenzhen
- T/T PayPal Other
- 15 days
You May Like
Product Details
| Brand Name | TechSource | Place of Origin | China | |
| Model Number | JRYP18B-X5VD |
Product Description

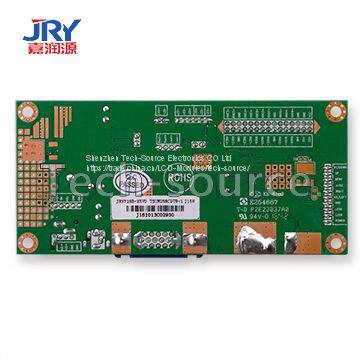

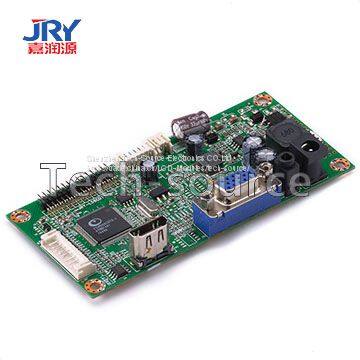

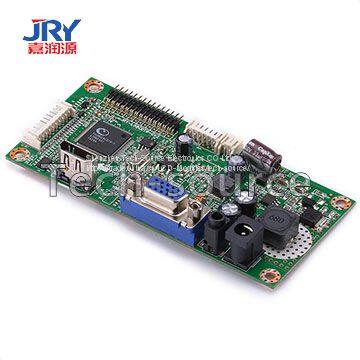

JRYP18B - F5VDE (600mA) is an integrated LED backlight driver of the new type of liquid crystal display control board, control board scheme, main chip TSUMU58CDT9-1 + backlight driving BIT3267 integration scheme.
Main chip piece of the stars, the latest of the semiconductor chip TSUMU58CDT9-1 constant-current backlight driver chip adopt the high-performance BIT3267 scheme, the constant current backlight driving chip has perfect short circuit protection function, high precision control constant current output current
LED backlight driver with the method of DC dimming control, drive current hardware setting maximum output current is 600mA, the LED backlight under 600mA output current can be through the software to adjust the maximum output drive current control
LED backlight driving voltage master control chip according to the LED screen, LED lights series of load automatically adjust the output voltage
Motherboard reserved the commonly used LED backlight interface, can be compatible with the most commonly used on the market of LED panel, LED panel support 1920*1200 and below
