Home > Products > Woodwork Planer & Thicknesser & Mortiser > Woodworking machine ML393X with 2000mm planer length and 400mm width planer and 3kw motor

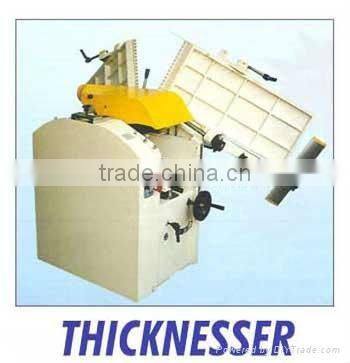

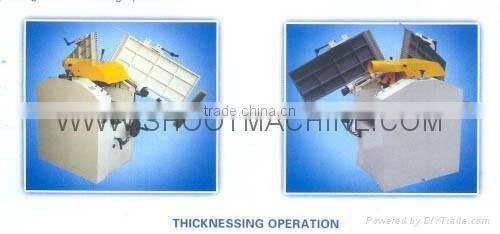

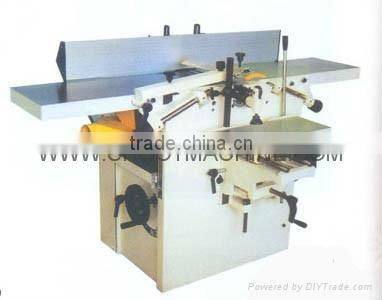

Woodworking machine ML393X with 2000mm planer length and 400mm width planer and 3kw motor
Negotiable
/ Piece
1 Piece(Min.Order)
- 150 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Woodworking machine ML392 with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine MBY10/2 with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine MBY8/2X with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine MBY8X with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine ML334 with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine ML333 with 2000mm planer length and 400mm width planer and 3kw motor
Product Details
| Condition | New | Type | Woodworking Planer | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | ML393X | Power(W) | 2200 | |
| Dimension(L*W*H) | 1680x640x970mm | Weight | 380/460kgs | |
| Certification | CE |
Product Description
| 310mm Planer & Thicknesser Machine | |
| Model | ML393X |
| Description | 310mm(12") |
| Motor | 2.2KW |
| Planing table size | 310x1600mm |
| Thicknessing table size | 310x750mm |
| Cutter block diameter | 95mm |
| Feeding block diameter | 40mm |
| Cutting knife | 4pcs |
| Fence tilt | 0--45 degree |
| Dust chute diameter | 100mm |
| Max planing width | 310mm(12") |
| Max. thicknessing width | 410mm(12") |
| Max cutting depth | 5mm |
| Max. thicknessing height | 220mm |
| Cutter block speed--50Hz(rpm) | 4000rpm |
| Cutter block speed--60Hz | 4800rpm |
| Feed speed--50Hz | 8m/min |
| Feed speed--60Hz | 9.6m/min |
| Mortising | |
| Bit housing | 16mm |
| Vertical stroke | 130mm |
| Table travel up/down | 110mm |
| Lateral stroke | 170mm |
| Table size | 460x200mm |
| Packing size | 1680x640x970mm |
| Net & gross weight | 380/460kgs |
| 20' container | 24pcs |
| *All cast iron constructions enable working stability | |
| *Precision machined planing & thicknessing table for accurate working. | |
| *Standard 100mm dust chute included. | |
| *4pcs HSS cutting knives. | |
| *Easy changing between planing & thicknessing operation. | |
| *Motor brake system guarantees woring safety. | |
| *Safty switch inside planing table support preventing accident injury when changing between planing & thicknessing operations. |
