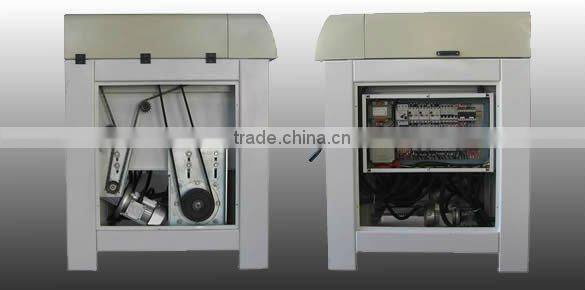

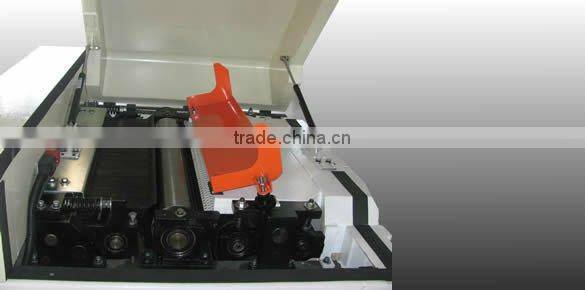

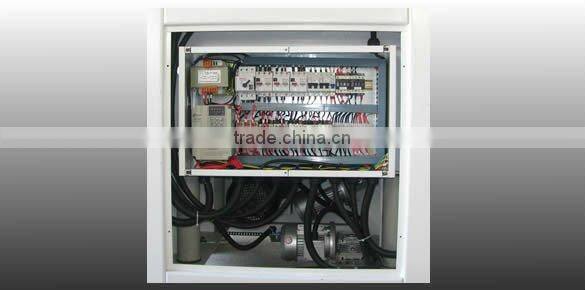

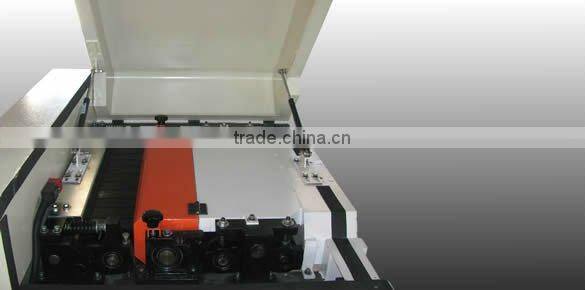

THICKNESSING PLANER SHM630 With Max. Working Width 630mm and Max. Cutting Depth 8mm
Negotiable
/ Piece
1 Piece(Min. Order)
- Qingdao Port
- T/T Money Gram Credit Card
You May Like
-
THICKNESSING PLANER SHM530 With Max. Working Width 530mm and Max. Cutting Depth 8mm
-
Woodworking Machine SH505B With 2000mm Planer Length and 400mm Width Planer and 3kw Motor
-
Automatic Feeding Double Axle Woodwork Planing Machine MB-504Z With Planing Thickness 10-200mm and Max.planing Width 400mm
-
Automatic Feeding Double Axle Woodwork Planing Machine SH-503Z With Planing Thickness 10-200mm and Max.planing Width 300mm
-
Inclined Cutter Woodworking Planer SH524 With Max. Planing Width 400mm and Max. Planing Depth 3mm
-
Combined Surface Planer-Thicknesser SH410 With Maximum Planing Width 410mm and Length of the Tables 2220mm
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SHM630 |
Product Description
| THICKNESSING PLANER | ||
| Pialla A filo | Model | SHM630 |
| Larghezza max. lavoro | Max. working width | 630mm |
| Spessore max. passata | Max. cutting depth | 8mm |
| Velocità avanzamento | Feed speed | 4-9-16-20MT/1' |
| Passaggio legno | Max. working height | 300mm |
| Coltelli | Number of knives | 4 |
| Velocità rotazione albero | Cutterblock rotation speed | 5500g/1' |
| Potenza motore | 3-phase motor power | 7,5 (5,5)HP (KW) |
| Dimensioni del piano di lavoro | Work table dimensions | 1050 x 632mm |
| Min. lunghezza di lavoro | Min. working lenght | 280mm |
| Potenza motoriduttore di sollevamento | Power of the motorgear for rise/fall | 0,75 (0,5)HP (KW) |
| Peso netto | Net weight | 875kg |
| Livello di potenza sonora nel posto operatore | Sound power level at operator's site | 82,1db |
| Livello di pressione sonora nel posto operatore | Sound pressure level at operator's site | 105,1db |
| Dotazioni standard | Standard Accessories | |
| Calibro registra-coltelli | Knife-setting device | * |
| 4 coltelli per pialla | 4 pcs planing knives | * |
| Sollevamento motorizzato del piano spessore | Motorized thicknesing table lifting | * |
| Accessori a richiesta | optional accessories | |
| 1 Rullo sul piano | 1 Table roller | |
| 2 Rulli sul piano | 2 Table rollers | |
| Motore | Motor | 10HP |
| Visualizzatore elettronico di quota | Electronic digital-read-out | |
| Controllo elletronico di quota e di volocita | Control electroinstallations and quota volocita | 5-20MT/1' |
| Rulli di traino gommati in uscita | Feeding rollers rubber output | |
| Rullo dentato sezionato | Sectioned feeding roller | * |
