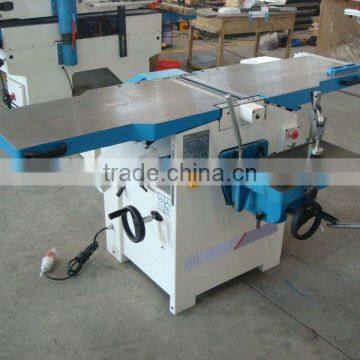

Combined Surface Planer-Thicknesser SH410BN with Thicknessing table dimensins 775x410mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
Thicknesser combination machines PT300W with Width 304mm and Depth 4mm
-
Thicknesser combination machines PT400W with Minimum thickness capacity 4mm and Maximum width of stock 400mm
-
Woodworking machine SH-260 with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine ML394QS with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine PT310 with 2000mm planer length and 400mm width planer and 3kw motor
-
Woodworking machine ML393X with 2000mm planer length and 400mm width planer and 3kw motor
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SH410BN |
Product Description
| Combined Surface Planer-Thicknesser | |
| Feature | |
| Long, heavily ribbed cast iron planer tables offer precision and stability. Surfacing- | |
| thicknessing machine, professional, massive and compact, for a high-flexible production; ideal | |
| for the demanding craftsman and carpentry. | |
| For mortising unit you can, on request, equip your machinery with the horizontal mortiser. | |
| Best support in all machinings, thanks to the 2200 mm long surfacing tables. | |
| Strong and constant workpiece feed to thicknesser is granted by the helicoidal infeed roller. | |
| Perfect thicknesser finishing with the outfeed roller in sanded steel. | |
| Adjustable pressure on the thicknesser feeding rollers depending on the workpiece type to | |
| be machined, for an impeccable result. | |
| Model | SH410BN |
| Feeding roller for thicknessing | 49mm |
| Thicknessing table dimensins | 775x410mm |
| Feeding speed | 7m or 14m(two speed) |
| Maximum removal | 5mm |
| Min.Work height for thicknessing | 3mm |
| Max. Work height for thicknessing | 240m |
| Minimum working length | 180mm |
| Suction system coupling | 120mm |
| Cutterblock | 95mm(with 4 blades) |
| Planer blade size | 410x30x3mm |
| Minimum blade height | 18mm |
| Cutterblock rotation speed | 5200r/min |
| Shaft stop time | <=10sec |
| Maximum removal | 5mm |
| Fence tilting | 90-45 degree |
| Suction system coupling | 120mm |
| Motor power | 4KW/380V/50HZ |
| Packing Size | 196×75×106CM |
| N.W./G.W. | 300/350KG |
