Home > Products > wood cutting panel saw > Wood Cutting Panel Saw SH6138TGO With Length of Sliding Table 3800x400mm and 4kw Motor
Wood Cutting Panel Saw SH6138TGO With Length of Sliding Table 3800x400mm and 4kw Motor
Negotiable
/ Piece
1 Piece(Min. Order)
- Qingdao Port
- T/T Money Gram
You May Like
-
Wood Cutting Panel Saw SH6128ZGO With 2800x320mm Europe Style Column Guide Rail and 90degree Tilting and 4kw Motor
-
Wood Cutting Panel Saw SH6128ZG With Length of Sliding Table 2800MM and Motor Power of Main Saw Spindle 4KW
-
Wood Cutting Panel Saw SH6130ZG With Length of Sliding Table 3000x320mm and Power of Main Saw Spindle 4KW
-
Wood Cutting Panel Saw SH6132ZG With Length of Sliding Table 3200x320mm and 4kw Motor
-
Wood Cutting Panel Saw SH6128TZD With 2800x360mm Beeline Guide Rail and 45degree Tilting and 4kw Motor
-
Woodworking Sliding Panel Saw Machine SH6130TZD With 3000x360mm Beeline Guide Rail and 45degree Tilting and 4kw Motor
Product Details
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SH6138TGO |
Product Description
| wood cutting panel saw | |
| .Apply to processing all kinds of density boards,shaving boards wood-based panels, Abs panels,pvc panels,organic glass plates and solid wood and others with wood structure and sinilar hardness. .Movable table guide track is plating chromium steel bars structure,exact and durable . .Made of hogh-strength exiruded aluminum alloy,movable table is high in strength and won 't bend. .With oxidarion treatment,movable table surface is beautiful and hardwearing. Tilt angles of main and scoring saw blades are displayed direcly by precision inclinometer | |
| Aluminium Sliding Table style | Europe Style |
| Model | SH6138TGO |
| Dimension of sliding table | 3800X400mm |
| Power of mainsaw spindle | 4kw |
| Rotar speed of main saw spindle | 4000-6000r/min |
| Diameter of main saw blade | 300x30mm |
| Power of grooving saw | 0.75kw |
| Rotary speed of grooving saw blade | 8000r/min |
| Diameter of groving saw blade | 120x20mm |
| Max sawing thickness | 75mm |
| Tilting saw blade | 45° |
| Aluminium Sliding Table style | Europe Style |
| N.W./G.W. | 650KG/700KG |
| Packing Size | 2000x1090x1000mm 3840x400x260mm |

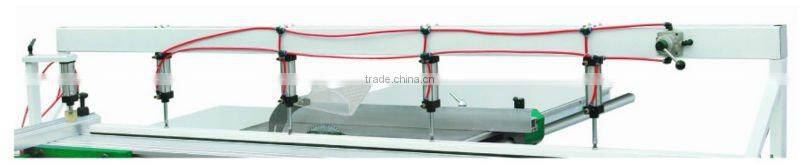

Optional Pneumatic pressure feeder

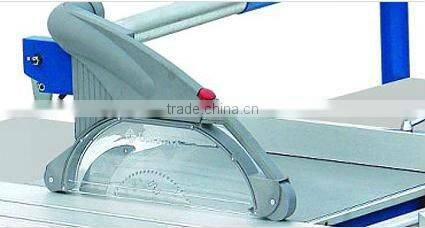

Optional Big Protection Hood Model A
