COMPUTER PANEL SAW SH380B With Max. Cutting Length 3780mm and Max. Cutting Thickness 90mm
Negotiable
/ Piece
1 Piece(Min. Order)
- Qingdao Port
- T/T
You May Like
-
Precise Panel Saw SH30TZ With Dimensions Sliding Table 3000*360mm and Gross Cut Capacity 3000mm
-
Precise Panel Saw SH28ZA With Dimensions Sliding Table 2800*310mm and Gross Cut Capacity 2800mm
-
Precise Panel Saw SH30ZA With Dimensions Sliding Table 3000*310mm and Gross Cut Capacity 3000mm
-
Precise Panel Saw SH28YA With Dimensions Sliding Table 2800*310mm and Gross Cut Capacity 2800mm
-
Precise Panel Saw SH30YA With Dimensions Sliding Table 3000*310mm and Gross Cut Capacity 3000mm
-
Precise Panel Saw SH32YA With Dimensions Sliding Table 3200*310mm and Gross Cut Capacity 3200mm
Product Details
| Place of Origin | Shandong, China | |||
| Brand Name | SHOOT | Model Number | SH380B |
Product Description
| COMPUTER PANEL SAW | |
| MODEL | SH380B |
| Max. cutting length | 3780mm |
| Max. cutting thickness | 90mm |
| Diameter of main saw blade | 400mm |
| Diameter of main saw spindle | 60mm |
| Rotation speed of main saw blade | 4800rpm |
| Diameter of scoring saw blade | 180mm |
| Diameter of scoring saw spindle | 30mm |
| Rotation speed of scoring saw blade | 6500rpm |
| Forward speed of saw carriage(stepless) | 9-37m/min |
| Backward speed of saw carriage | 67m/min |
| Drive motor of main saw blade | 15kw |
| Drive motor of saw carriage | 1.5kw |
| Automatic feeding motor | 1.5kw(AC Servomotor) |
| Total power consumption | 20.2kw |
| Automatic feeding speed | 50m/min |
| Pnenmatic pressure | 5-7kg/cm2 |
| Table height from floor | 960mm |
| Net weight | 5500kg |
| Overall dimensions | 6330x6630x1810mm |
Option

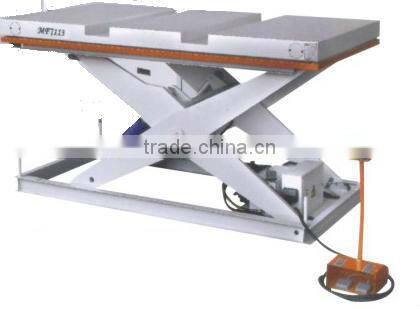

| HYDRAULIC LIFT TABLE(OPTION) | |
| MODEL | MF7113 |
| Working table size | 2500x1300mm |
| Max. raising weight | 3000kg |
| Min. height of working table | 480mm |
| Max. raising height | 1900mm |
| Pump power | 1.5kw |
| Dia of oil cylinder | 100mm |
| Net weight | 1300kg |
| Overall dimensions | 2500x1300x1900mm |
