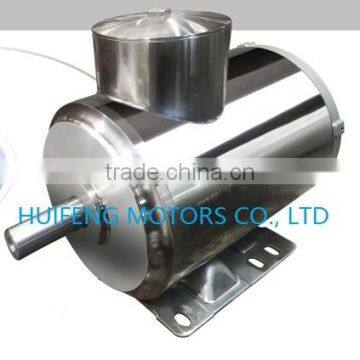

B3 TENV IP67 AC Stainless Steel Motor

Rating:
Output Power 0.18 - 1.5 [kW]
RPM 1500 [min-1] @ 50[Hz] / 1800 [min-1] @ 60[Hz]
Supply 3 phase 230/400V-50Hz - 277/480V-60Hz
Frame and Flange dimensions according IEC 72-1
Materials highly corrosion resistant and safe for direct food contact
Energy consumption according international efficiency regulations IE3(ErP)
Certifications CE certified
Duty cycle 24 hours/day; up to 7 days a week
Insulation Class F
Temperature rise in class A for a long life time expectancy
External temperature not exceeding 60°C
Inverter duty (VFD): yes, rated 10:1 for variable torque,
6:1 for constant torque
Thermal protection: PTO
Bearings: double sealed, axially locked DE

Operating environment:
Temperature -5 to 65 [°C]
Humidity up to 100%

Cleaning information:
Temperature: up to 65 [°C]
Water: drinking water quality
Detergent: highly corrosive chlorine-containing components up to 200[ppm], acid and alkaloid components (pH4 to pH12)
disinfecting components
Pressure: up to 90 [bar] @ 45° angle
Interval: daily
Cleaning process: removing / applying / soaking / rinsing
Thermo shock resistant (instant change from operating temperature to ±5°C)

Options:
- Fixed cable or connector
