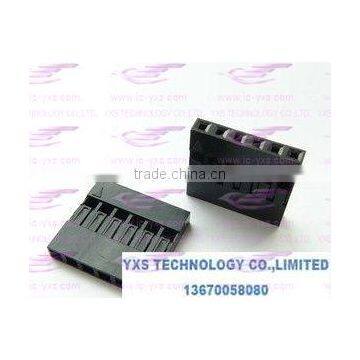

YXS2015H-04P 2.0mm Housing connector

Specifications

Specifications :
Current Rating : 2A AC,DC
Voltage Rating : 125V AC,DC
Temperature Range : -40 deg C ~+105 deg C
Contact Resistance : 40m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 500V AC/minute
*Contact YXS2015 for detals*

Housing
part No:YXSCT2015H-
poles:2-20P,2*2-2*40P.
Material:PBT UL94V0
Packing Q'TY:1000pcs/bag
Mates With YXS2015TG  Series Terminal

Terminal
Part No:YXS2015TG
Thickness:0.20mm
Material:Phosphor bronze
Finish:Tin Plated
Wire Range:AWG#28-#30
Insulation O.D. : 1.0mm ( Max.)
Q'TY:10,000pcs/reel
Mates With YXS2015H- Series Housing

Wafer (DIP  Type)
part No:Pitch2.0mm PIN Header S/T or R/A
poles:2-40P,2*2-2*40P.
Material:PBT UL94V-0
Packing Q'TY:1000pcs/box
Mates With YXS2015H- Series Single/Dual Row Housing
