Waste Engine/ Motor Oil Recycling Machine For Production Lube Base Oil And Diesel Oil
- Chongqing China ( as per customer request)
- T/T L/C D/P D/A
You May Like
-
JZC Motor Oil Recycling Machine/engine Oil Regeneration Plant/black Oil Distillation Plant
-
JZC Used Motor Oil Recycling Machine/waste Engine Oil Regeneration System
-
JZC Used Motor Oil Recycling Equipment, Waste Engine Oil Treatment
-
JZC Motor Oil Distillation Plant, Converting Black Oil to Diesel Oil Equipment
-
JZC Vacuum Motor Oil Distillation Plant/crude Oil Refined to Diesel Oil
-
JZC-5( 5 T/day) Vacuum Waste Engine Oil Regeneration, Waste Oil Distillation Palnt
Product Details
| Condition | New | Flow | 2~20T/D | |
| Working Pressure | 0.4Mpa | Place of Origin | Chongqing, China | |
| Brand Name | NAKIN | Model Number | JZC | |
| Usage | Other, used oil, engine oil, base oil etc. | Voltage | 380V 50HZ 3phase ( as per customers request) | |
| Power(W) | 8~22KW ( up to the capacity) | Dimension(L*W*H) | up to the capacity | |
| Weight | up to the capacity | Certification | CE, ISO9001, SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Waste Engine/ Motor Oil Recycling Machine For Production Lube Base Oil And Diesel Oil
Specifications:
1. High quality base oil recycling equipment.
2. high recovery rate.
3.Environment friendly type.

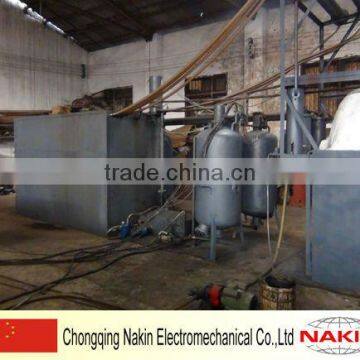

Series JZC Waste Oil Distillation (Oil Pyrolysis) equipment is one kind of machine which combined the atmospheric distillation systems and vacuum distillation systems, it is special for distillating and regeneratying the black waste oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. Design a processing capacity of 6,000 tons of waste oil processing device, the raw material of light component too much, waste oil distillation unit uses two stages of vaporization, atmospheric tower design, vacuum tower.
Features:
1. Easy to operate, low operation cost
2. JZC machine adopts the vacuum distillation technology , oil distillation temperature is low, equipment works in high vacuum.
3. Environmentally friendly, without secondary pollution.
4.Using three-dimensional recirculation new distillation tower, distillation, high efficiency, low energy consumption.
5. The machine can recycle gasoline oil, diesel oil, engine oil, rubber oil and other lubricant oil to clean oil.
6. High quality refined oil, no any discoloration caused by oxidation, no any bad smelling.
Technical Parameters:
Index | Unit | JZC-2 | JZC-5 | JZC -10 | JZC -20 |
Capacity | Ton / day | 2 | 5 | 10 | 20 |
Recovery ratio | % | 75-90 | 75-90 | 75-90 | 75-90 |
Working pressure | Mpa | ≤ 0.4 | |||
Working vacuum | Mpa | -0.08 ~ -0.099 | |||
Working Temperature | ℃ | 80-380 | |||
Working Noise | dB (A) | 70 | 70 | 75 | 75 |
Power supply | V | 380v, 50hz, 3Phase | |||
Heating Power | kW | 55 | 75 | 160 |
|
Total Power | kW |
|
|
|
|
Inlet/outlet | mm | 15 | 15 | 25 | 25 |
Working Size | m2 | 500 | 800 | 1200 | 1800 |
Weight | T | 2.2 | 3 | 5 | 8 |
Recovery Rate:
| Final Product | Ratio Percentages | Distillation Temperature | Vacuum Value |
| Water | 2% | 80℃-110℃ | -0.098 |
| Gasoline and Diesel | 8% | 120℃-210℃ | 500Pa |
| Light base oil | 40% | 220℃-290℃ | 300Pa |
| Heavy base oil ( viscosity ≥SN150) | 45% | 300℃-350℃ | 200Pa |
| Oil Residual | 5% | ||
| Total | 100% |
Wooden case suitable for long distance sea transportation.
After-sales Services:
Engineer is available for local installation.
Lifelong maintenance and spare parts supply.
Free training for machines installation and operation of the staffs.
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
CHONGQING NAKIN ELECTROMECHANICAL CO. Ltd. Is a professional mechanism manufacturer from Chongqing China. The company is joint-stock high-tech enterprise, after ten years of development, company has grow into a comprehensive enterprise, engaging in vacuum oil purifier producing, airless tools producing, and Imp&Exp trading. NAKIN products are widely applied in projects of transformer substation, electric department, steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc.
Our Product Lists:
Certificates:
Don't hesitate to contact us. Hoping to build one friendly business relationship.
