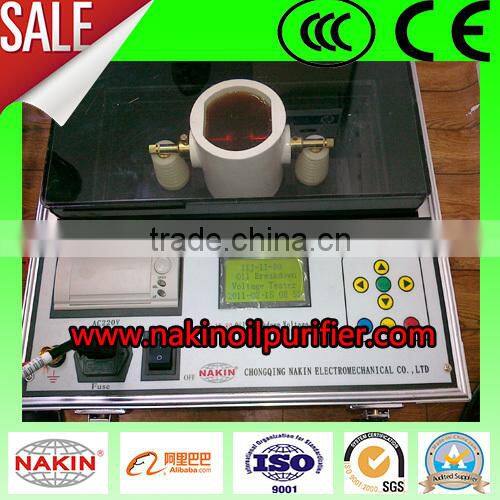

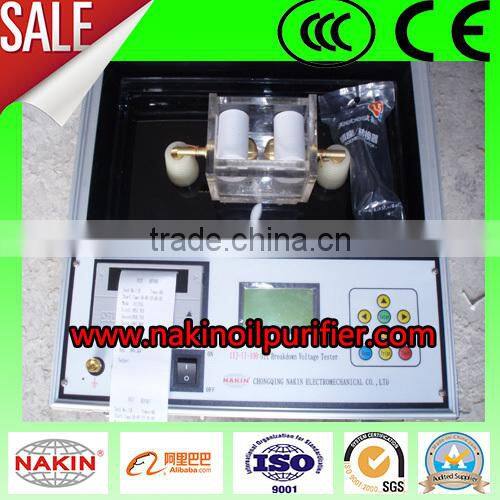

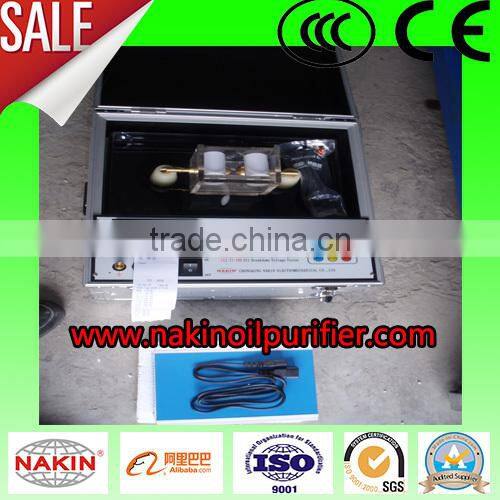

IIJ-II-100KV Oil Test Kit for Testing Dielectric Oil Breakdown Voltage

IIJ-II-100KV Oil Test Kit for Testing dielectric oil breakdown voltage

Application:

In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. Series IIJ-II oil tester is special for testing insulating oil’s dielectric strength. IIJ-II Automatic oil tester is designed according to international standard of IEC156. Adopt industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti-jamming technologies which greatly improve the tester’s performance.

Technical Parameters:

1. Power supply: AC220V±10%,50Hz

2. Output voltage: 0~100KV(60KV,80KV,100KV)

3. Capacity: 1.2KVA(1.6KVA,2.0KVA)

4. Speed of pressure rise: about 2KV/S

5. Voltage test precision: ±3%

6. Breakdown sensitivity: <2KV

7. Wave difference: ≤3%

8. Time of breakdown: ≤10ms

9. Working temperature : 0C~40C    humidity : The biggest comparatively humidity85%

10. Reserve circumstance

temperature : -20C~60C

 humidity : The biggest comparatively humidity75%

Working altitude: <1500m (if over 1500m can be designed specially)

11. Dimension: 480mm*460mm*460mm
