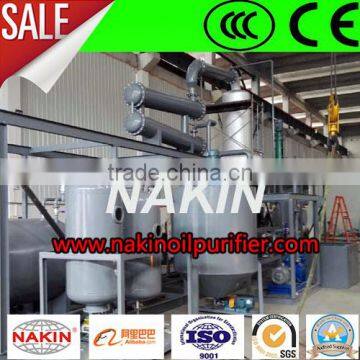

Great Economical Benefit Used Engine Oil Filter Recycling Machine,Vacuum Oil Distillation Plant

Application:

Waste oil usually collected from machinery, vehicles, ships etc. which color is black and very dirty. Because the waste oil contains too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. thereby it is harmful for the lubricating system and car engine etc, waste oil lost it’s control friction which have to be replaced.

Transitional way to recycling the waste oil is by acid way, which will produces much waste sludge, bad smell, non-friendly environment, and the produced base oil is not purity, and it is easily oxidized. Many countries forbid the acid way.

So our company researches the new waste oil vacuum distilling machine (JZC waste oil distillation machine), it is special for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminations. JZC waste oil distillation machine heat the waste oil to (from 110℃ to 350℃) different temperature under high vacuum condition, making Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc. JZC machine is very suitable for the small oil refinery company, also for the small oil company who want to make the oil by self.

Advantages:

1.There are optional ways to heat the oil, like the boiler way by using fuel, natural gas or coal. Also, if machine is small capacity, we can use the electric heating way.

2.By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.

3.Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.

4.Oil cooler system adopts the SS304, which has the good heating exchange function, long life time.

5.Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.

6.The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.

7.Machine design life is 10 years, long working life time.

8.Easy operation, only 1 or 2 workers can operate the machine.

9.There is no any acid or clay which cause seconday pollution. It utilized catalyzing treatment during chemical porcessing.

Working Principle:

Adding one kind of special chemicals by a ratio way (The chemicals is common chemical, which is available in all countries, The chemicals cost is USD 30 to distill one ton waste oil) to catalyze the waste oil. The mixed waste oil will be heated to (from 110℃ to 350℃) different temperature range under high vacuum condition in the distilling kettle, the waste oil is vaporization, then the oil-gas goes into the effective oil cooler, oil-gas condense to liquid oil again after through the oil cooling system. The production can be the gasoline oil, diesel oil and lubricating base oil.

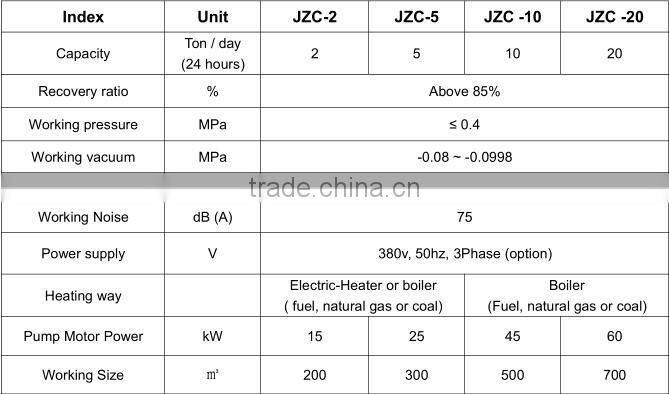

JZC Technical Parameter:

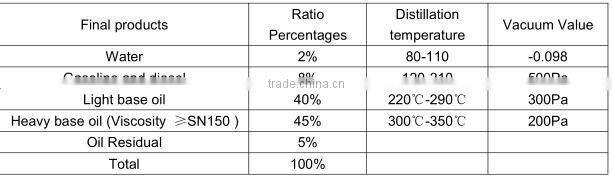

Recovery Rete:

Flow Chart:

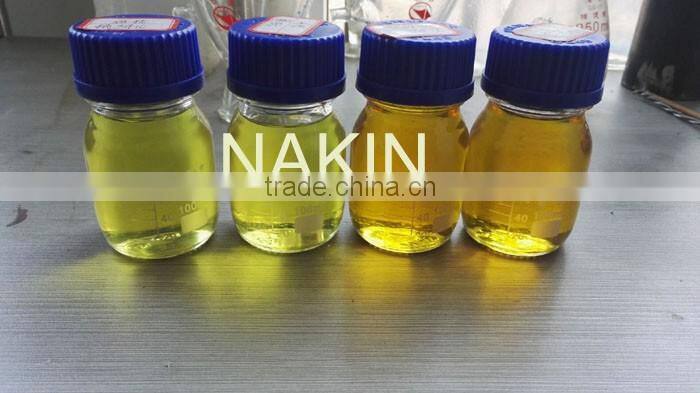

Oil Treatment Picture:

Wooden case Suitable for sea transportation and air transportation

Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.

CQ NAKIN Vacuum Oil Purifier Co., Ltd is Oil Filtration/oil purifier Company which is a old and experienced oil filtration company, engage in waste oil recycling and filtration job for 20 years, we specially in developing mobile type transformer oil home filtration device, help customer to regenerate the used insulating oil in effective. We do welcome the customer visit our factory and give us a good advice. If you interested in our oil filtration machine, please contact us, we will provide you the complete technical support.

Product Lists:

Environment friendly Vacuum Waste Oil Distillation, Oil Refinery Plant

High effective vacuum transformer oil purifier, oil filtration

Double stages insulating oil purifier,oil treatment,oil purification

Mobile/trailer type transformer oil treatment,oil filtration mnachine

Air dryer for dring electric equipments

Turbine oil purifier,oil treatment

Coalescence and separating oil filter,oil purifier machine

Lubricating oil purifier/hydraulic oil purification

Phosphate ester fire-resistant oil purifier, oil filtration machine

Engine oil regeneration system, waste oil recycling

Transformer oil regeneration device,oil pruifier

Plate pressure oil filter, oil purifier machine

Portable oil piurifier,oil filtering,oil filter

BDV oil tester,insulating oil dielectric strength tester

Oil moisture sensor,water content tester

Honors & Certificates:

China Famous brand Oil Purifier Company

Golden-supplier for China National Electric power Group

Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company

ISO9001 products quality certificate

CE Products safety certificate

SGS Products local testing report

More than 10 years and 50 countries and districts exporting experience

After-sales Service:

One year guarantee for product quality. (People damaged parts are charged).

Lifelong maintenance and spare parts supply.

Free design of fixtures as customers required.

Free training for machines installation and operation of the staffs.

Engineer is available for local installation.

24 months warranty from the delivery

Workshop& Warehouse:

Office:

FAQ:

Q:what ability we have?

A:mature technologies and skillful workmanship (we control every single manufacturing process and make sure it will be done perfectly in our factory with the lowest cost with the best quality assurance). products quality guarantee and about 30 days free train(competitors cant spend much time in you factory,stay long you will find many problems about their machine)

Q:How to deal with the residue?

A:The final residue is semi solid and can be processed for manufacturing asphalt, or briquette for burn, or blend with oil to make off-speck heavy fuel oil or to make greases for slow moving machineries.

Q:Why we need to add the catalyst?

A:Catalyst will keep the recycled oil stabilization, avoiding the recycled oil oxidate and color change back to black. So the recycled oil from our machine will keep yellow at least half one year or one year.

Q:Why the machine need work under vacuum condition?

A:The machine work under negative pressure, the boiling rage of the used oil is lower under high vacuum condition, if without vacuum unit, the oil will crack when temperature up to 420-450 degree( and the oil will become to diesel when temperature is 450 degree)
