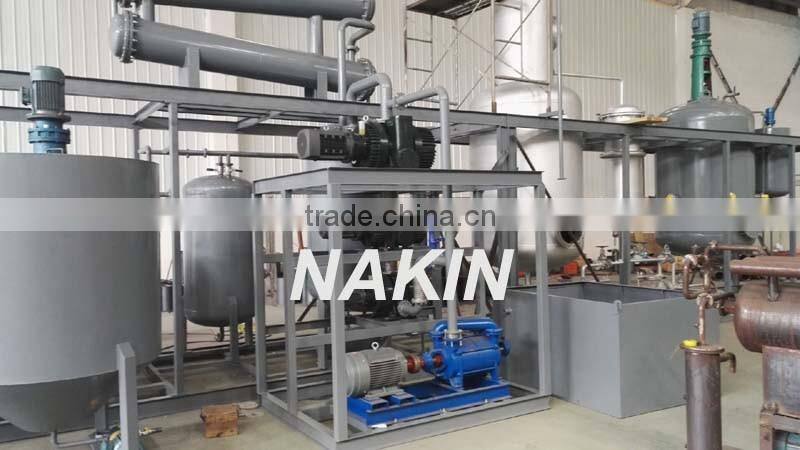

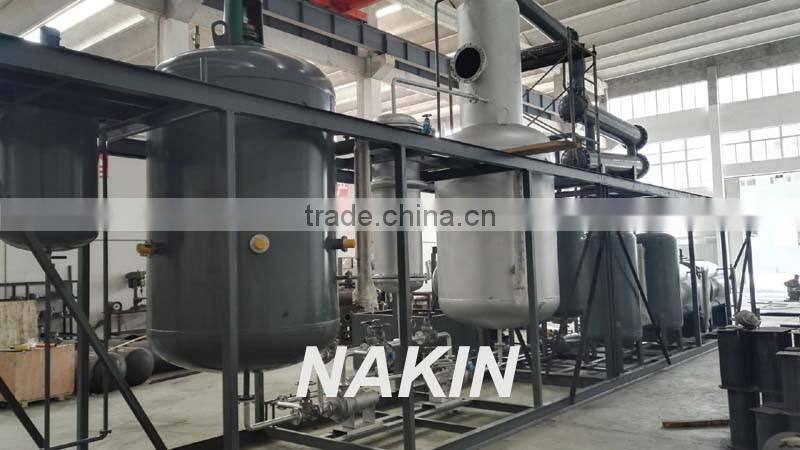

JZC Base Oil Vacuum Distillation Plant, Oil Refinery

Product Application

Waste oil usually collected from machinery, vehicles, ships etc. which color is black and very dirty. Because the waste oil contains too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. thereby it is harmful for the lubricating system and car engine etc, waste oil lost it’s control friction which have to be replaced.

Transitional way to recycling the waste oil is by acid way, which will produces much waste sludge, bad smell, non-friendly environment, and the produced base oil is not purity, and it is easily oxidized. Many countries forbid the acid way.

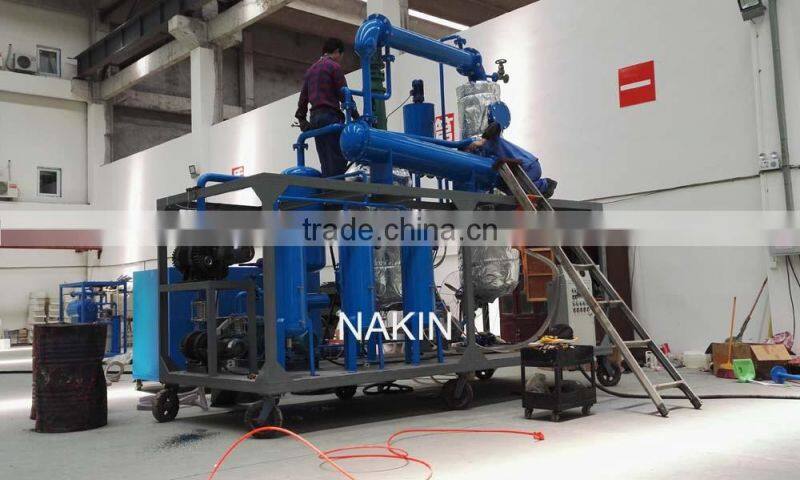

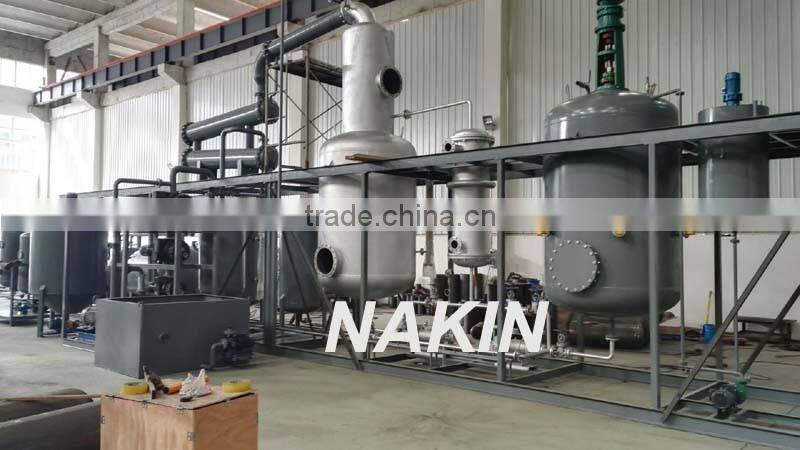

So our company researches the new waste oil vacuum distilling machine (JZC waste oil distillation machine), it is special for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminations. JZC waste oil distillation machine heat the waste oil to (from 110℃ to 350℃) different temperature under high vacuum condition, making Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc. JZC machine is very suitable for the small oil refinery company, also for the small oil company who want to make the oil by self.

Main Features

1. There are optional ways to heat the oil, like the boiler way by using fuel, natural gas or coal. Also, if machine is small capacity, we can use the electric heating way.

2. By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.

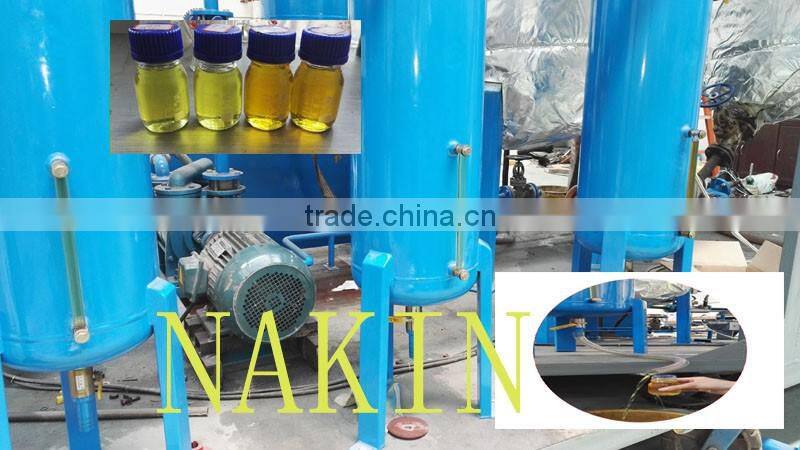

3. Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.

4. Oil cooler system adopts the SS304, which has the good heating exchange function, long life time.

5. Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.

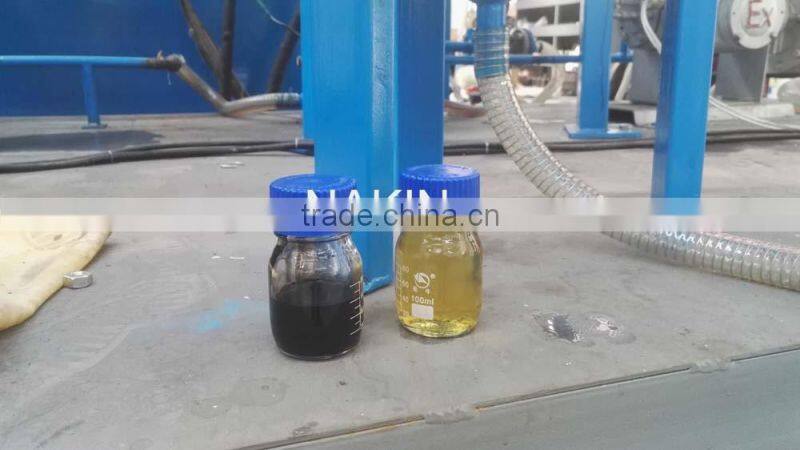

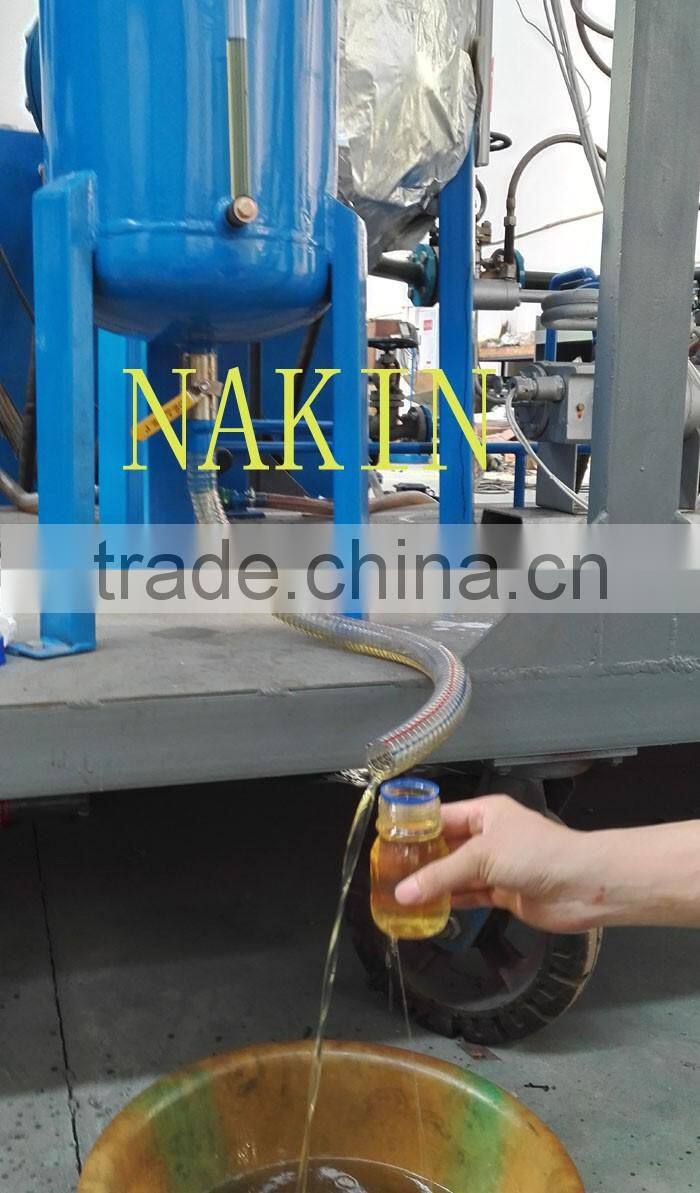

6. The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.

7. Machine design life is 10 years, long working life time.

8. Easy operation, only 1 or 2 workers can operate the machine.

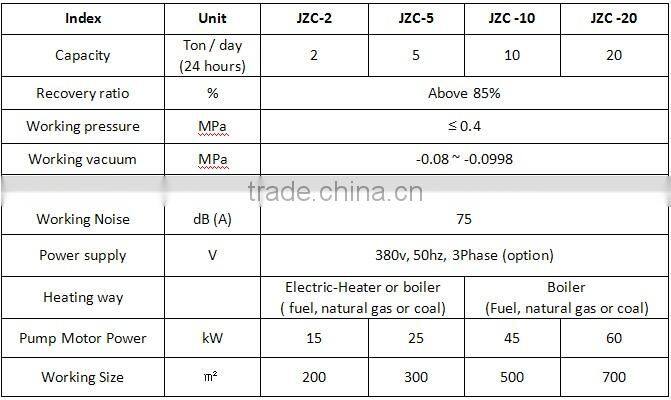

Specification
