Labor-saving Manual Railroad Bolts Wrench Internal Combustion
- Qingdao Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
High Performance Petrol Engine Bolts Wrench
-
Handheld Gasoline Engine Wrench 44*34mm
-
Hand Operated Internal Combustion Bolts Wrench for Railway Use
-
High Efficiency Handheld Bolts Wrench for Rail Tracks
-
Factory Spot Supply Internal Combustion Rail Tamping Tool
-
ND-4 Railway Maintence Tool Railway Tamping Machine
Product Details
| Type | Other, Bolt Wrench | Material | Steel | |
| Dimensions (L x W x H) (mm) | 650*280*380 mm | Place of Origin | Shandong, China | |
| Brand Name | China Coal | Model Number | NLB-550 |
Product Description
Portable Rail Track Bolts Wrench 44*34mm Introduction
NB-550 type hand-held internal combustion single head wrench has new design, compact structure, small volume, light weight, strong maneuverability, hand the two stage shock, portable portable and convenient way.
Portable Rail Track Bolts Wrench 44*34mmParameter
Engine type | two stroke, force, the cold wind, single cylinder
|
Power | 1.47 kw
|
Displacement | 51.7 cc, Φ 44 × 34 mm
|
Fuel tank capacity | 1L
|
Fuel mixture ratio | 25:1 |
Revolution (idle) | 2700 RPM + 250
|
Revolution (load) | 7120 RPM
|
Revolution (maximum) | 9880 RPM
|
Maximum output | 2.03 Ps / 6500 RPM
|
Maximum torque | 0.34 kg - m / 550 RPM
|
Compression rate | 7.4:1
|
Specific fuel consumption | 380 g/Ps. H |
Carburetor type | diaphragm
|
Fastening torque range | 550-1700 N.m (406-1250 ft LBS.)
|
Clutch speed | 1200 RPM
|
Net weight | 18 KGS (39.60 LBS)
|
The overall size | 650 x 280 x 380 mm
|

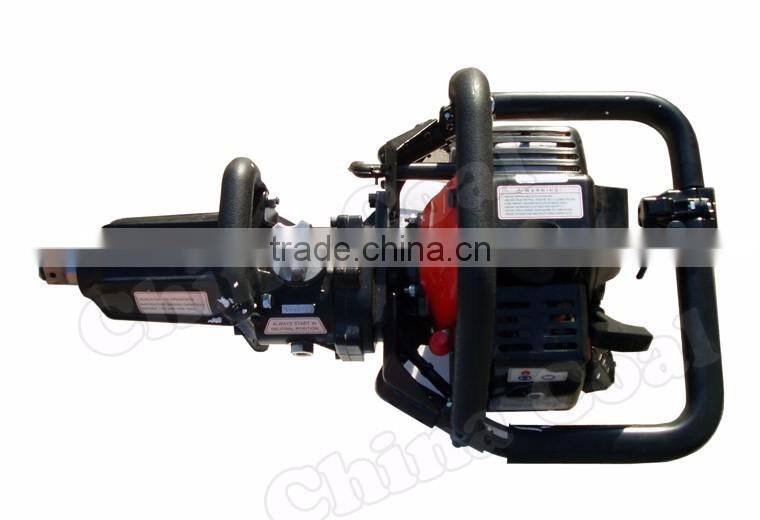

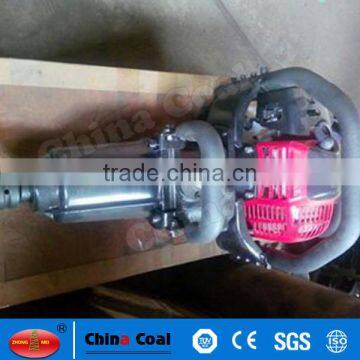

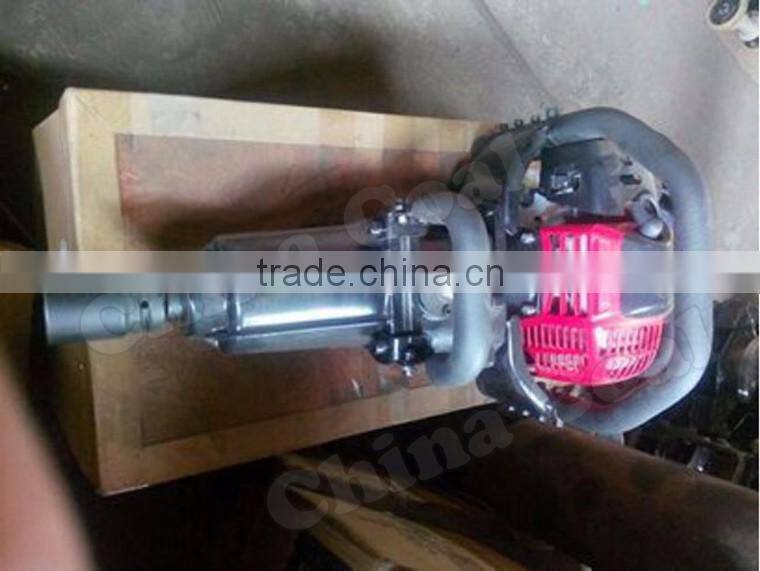

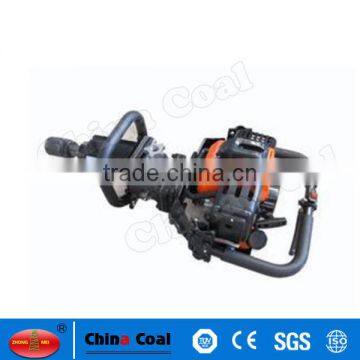

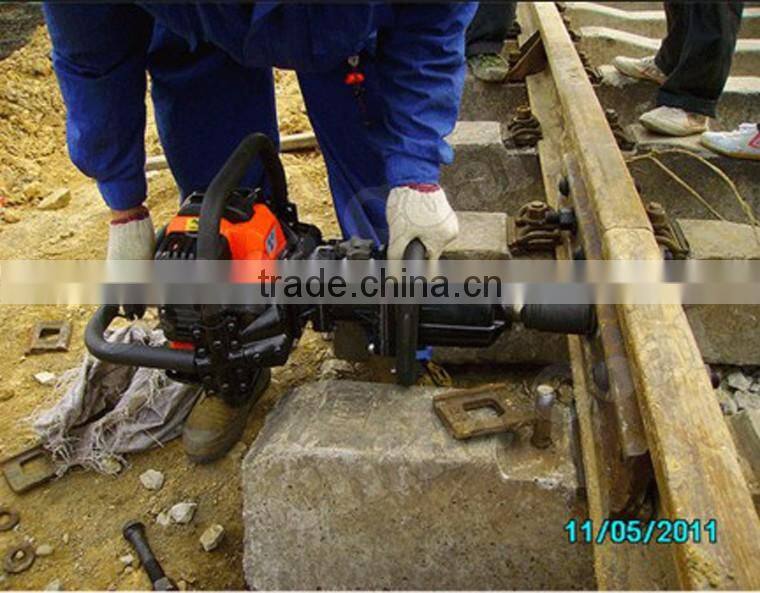

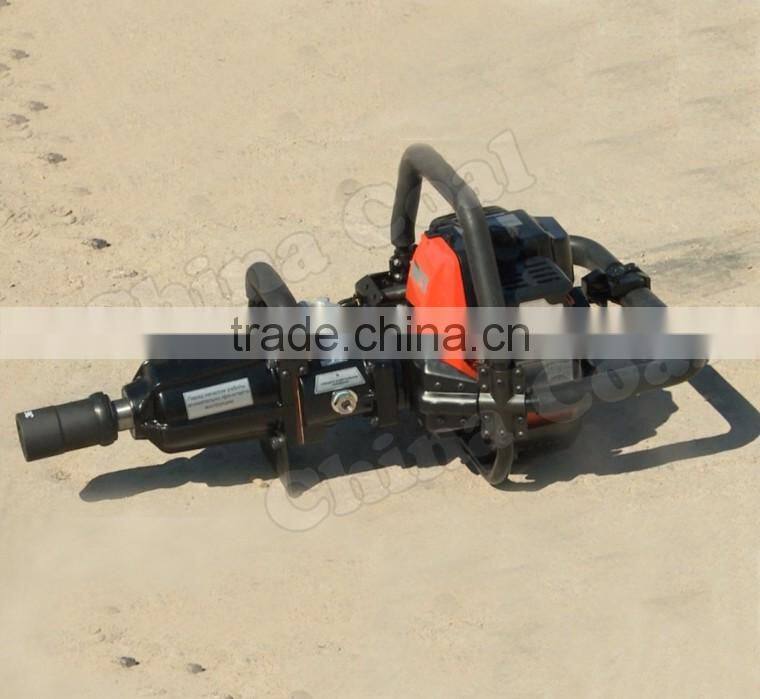

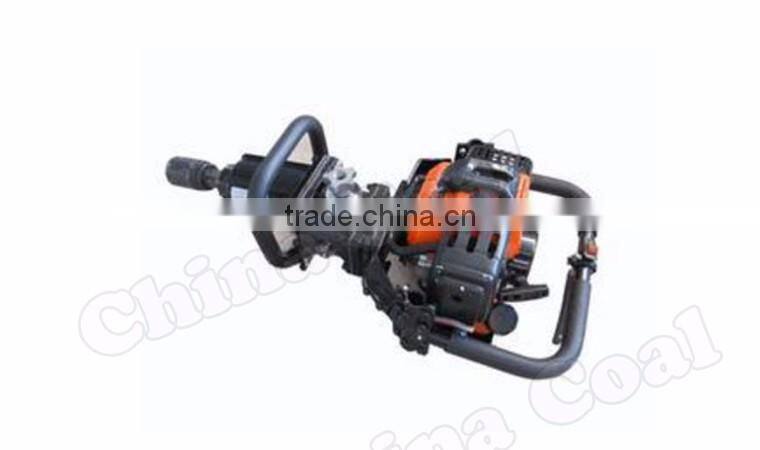

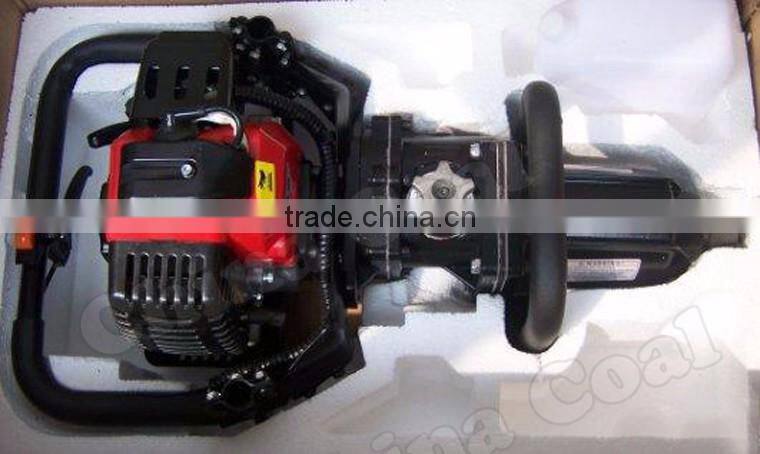

Portable Rail Track Bolts Wrench 44*34mm Figure Photos
