Pump Operated Hydraulic Busbar Hole Punching Machine
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Shandong, China | |
| Brand Name | China Coal | Model Number | CH-60 | |
| Voltage | 110V/220V | Weight | 18.2kg, 19kg | |
| Dimension(L*W*H) | 220*120*350MM | Certification | ISO MA CE SGS TUV | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
Product Description
Pump Operated Hydraulic Busbar Hole Punching Machine Introduction

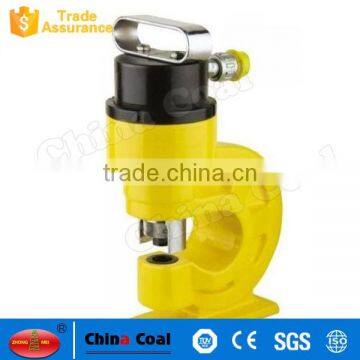

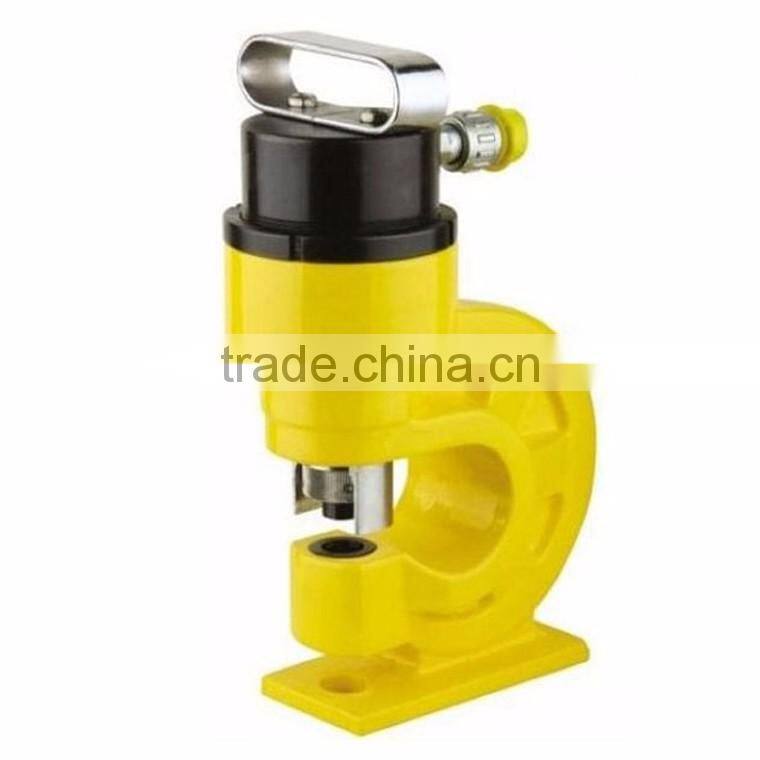

Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Pump Operated Hydraulic Busbar Hole Punching Machine Parameter
Type | Output | Thickness iron | Thickness copper | Throat Depth | Weight | Model(mm) |
CH-60 | 31T | 6mm | 10mm | 95mm | 19kg | 10.5,13.8,17.5,20.5 |
HW-70 | 35T | 10mm | 12mm | 110mm | 38kg | 10.5,13.8,17.5,20.5 |
CH-80 | 50T | 16mm | 20mm | 115mm | 50kg | 16,18,22,25 |

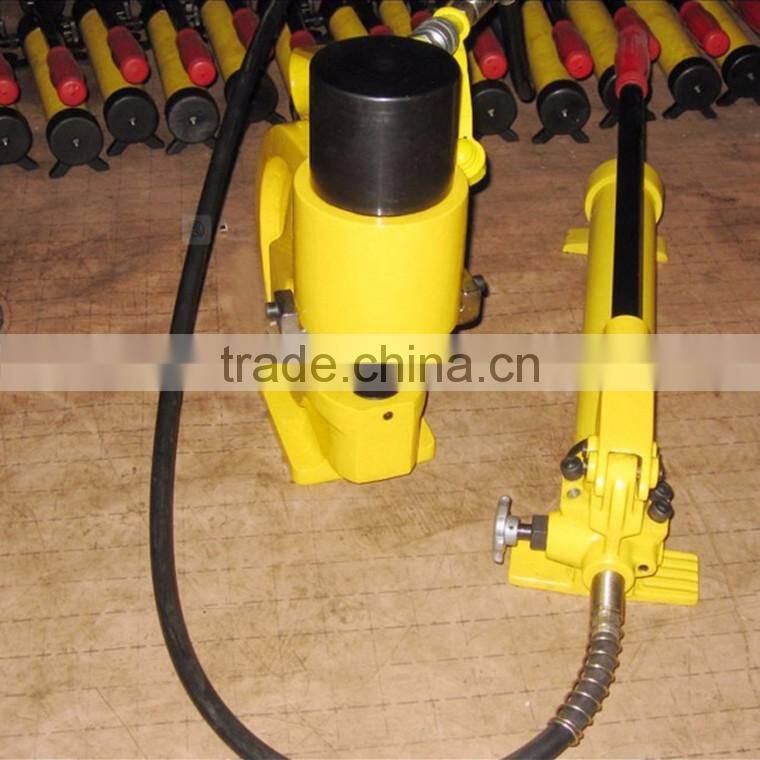

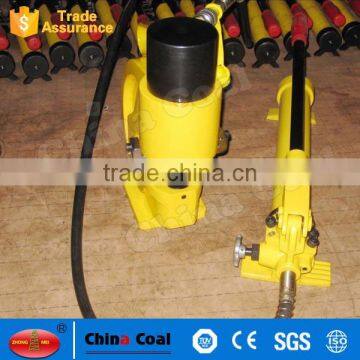

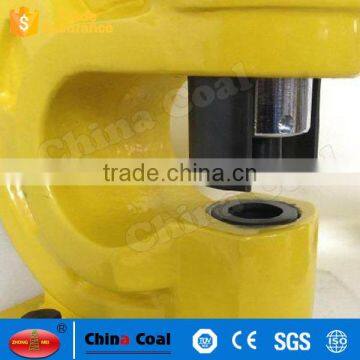

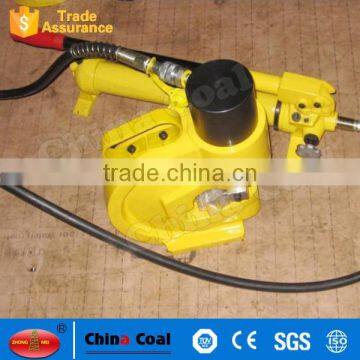

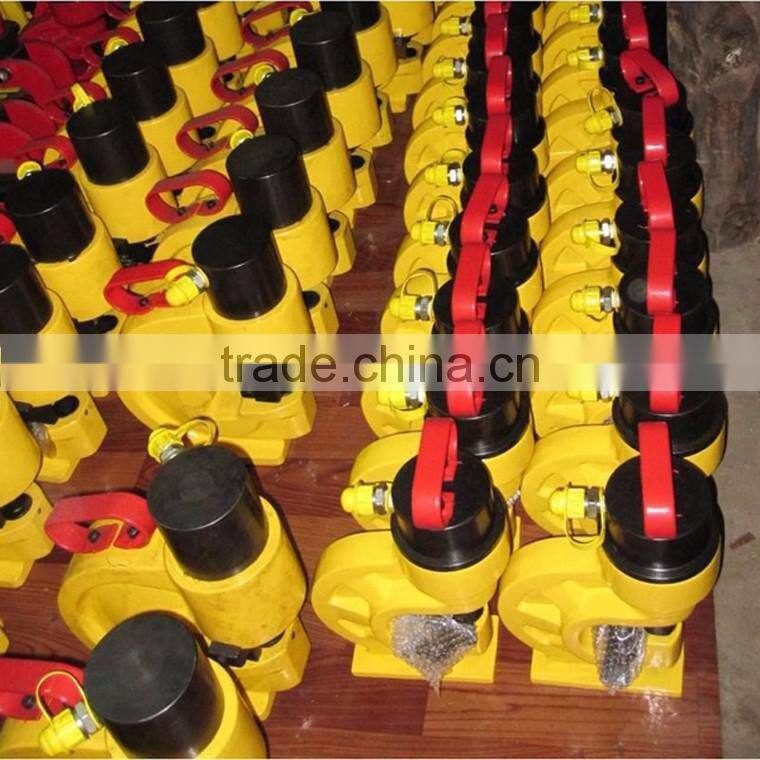

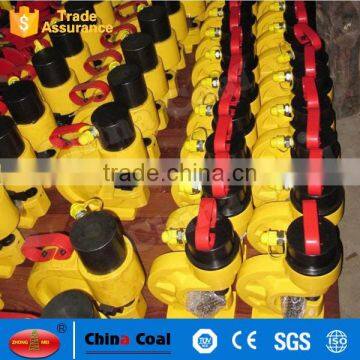

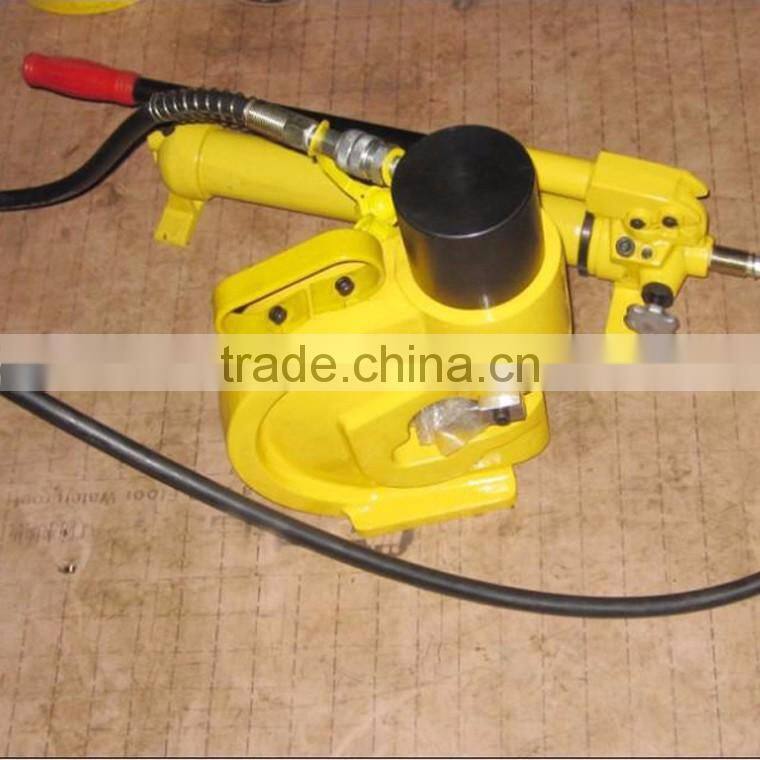

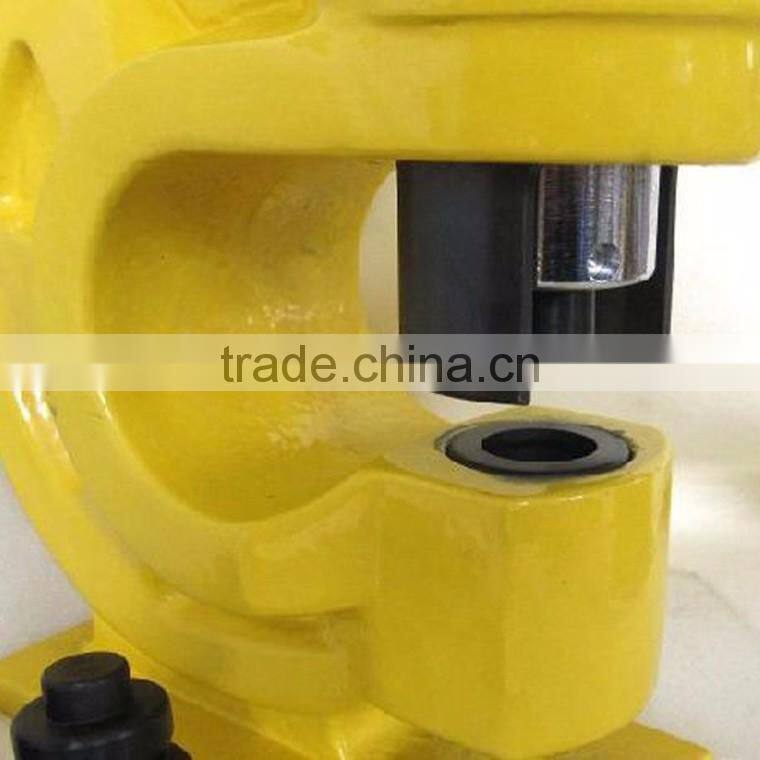

Pump Operated Hydraulic Busbar Hole Punching Machine Photos
