Gas Pressure Rail Welder Machine 12v - 380v
- Qingdao Shenzhen Shanghai Niningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | China Coal | |
| Model Number | YH-6 | Voltage | 380V | |
| Rated Capacity | 20L | Rated Duty Cycle | ≥4L/min | |
| Dimensions | 1320x635x330mm | Weight | 230kg | |
| Usage | Repair | Certification | ISO | |
| After-sales Service Provided | No overseas service provided |
Product Description
Introduction of Gas Pressure Rail Welder Machine 12v - 380v
YH-6 Portable Gas Pressure Rail Welding Machine is mainly used in rail welding, the he equipment for the holding type push convex, crimping machine for the rail bottom
position,guarantee the rail head flat laymen, the machine equipped with upsetting control valves, pressure reducing delay operation possible. Compared with similar products, the equipment with unique design, reasonable design, simple operation, etc.
Parameters of Gas Pressure Rail Welder Machine 12v - 380v
Pressure welding machine |
|
maximum stroke | 100mm |
spindle working pressure | 35Mpa |
maximum pressure | 40Mp |
deburring unit ing stroke | 120mm |
deburring unit ing pressure | 45MPa |
deburring unit max.deburring force | 452kN |
Pressure welding machine weight | 230kg |
Pressure welding machine oversize | 1320x635x330mm |
hydraulic pump station |
|
Voltage | 380V |
speed | 1440r/min |
pump station flux | ≥4L/min |
oil tank capacity | 20L |
water pump |
|
type | YSB(AOB)-25 |
Voltage | 380V |
Flow | 25L/min |

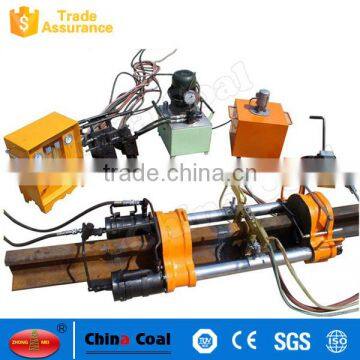

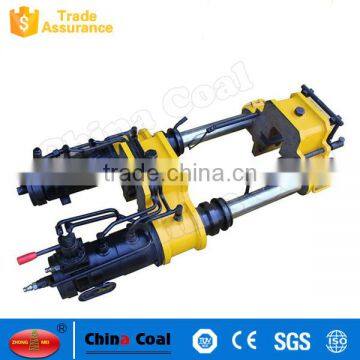

Pictures of Gas Pressure Rail Welder Machine 12v - 380v
