Stepper Motor Driver Price 57hs Series and ND556
- shanghai shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szret | |
| Model Number | Motor 57hs09 Driver ND556 | Motor Type | Stepper Motor |
Product Description
Specifications

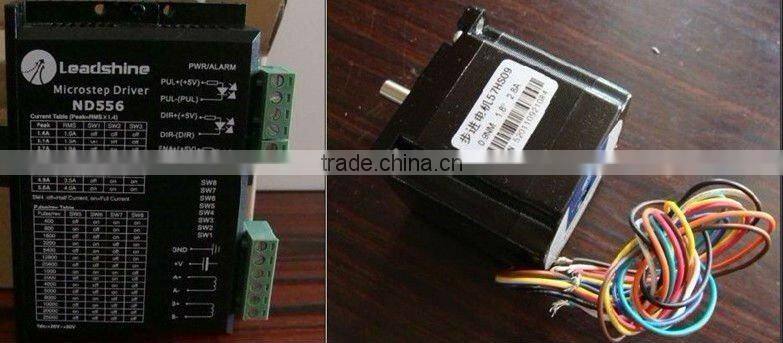

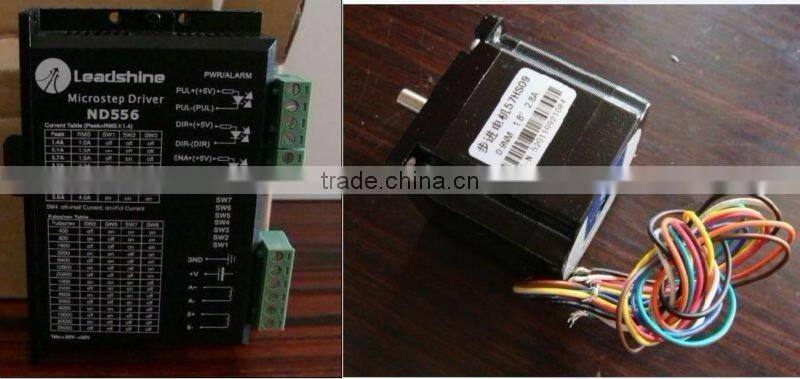

1stepper motor and driver 57hs09 ND5562.2-phase
3.Suitable for a variety of small and medium-sized automation equipment

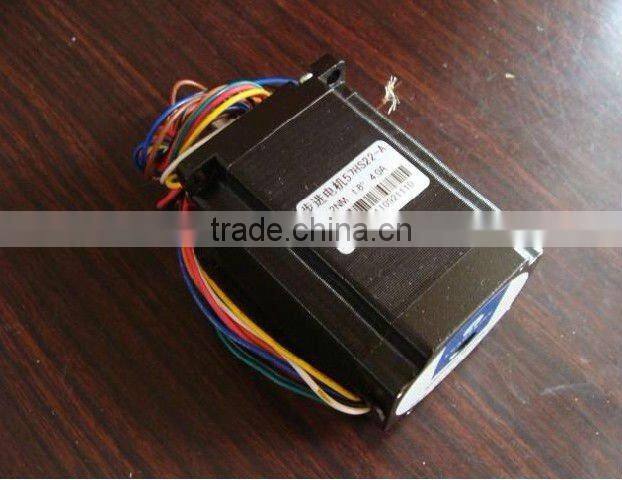

stepper motor 57hs09 57hs22
Common specifications
Model No. | phase | Step angle | Hold Torque | Rated current | Phase inductance | Phase resistance | Lead number | Rotor inertia | Positioning torque | Weight | Body length |
|
| (°) | N.M | A | mH | Ohm |
| g.cm2 | Kg.cm | Kg | mm |
57HS06 | 2 | 1.8 | 0.6 | 2.0 | 1.8 | 1.4 | 8 | 146 | 0.42 | 0.6 | 55 |

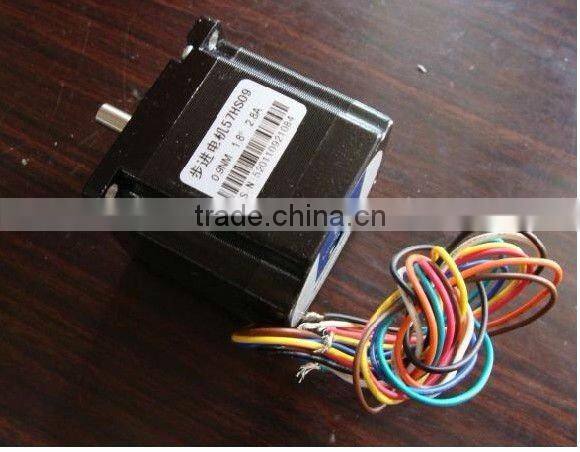

57HS09 | 2 | 1.8 | 0.9 | 2.8 | 1.2 | 0.8 | 8 | 260 | 0.4 | 0.6 | 54 |
57HS22 | 2 | 1.8 | 2.2 | 4.0 | 1.8 | 0.8 | 8 | 460 | 0.7 | 1.1 | 81 |

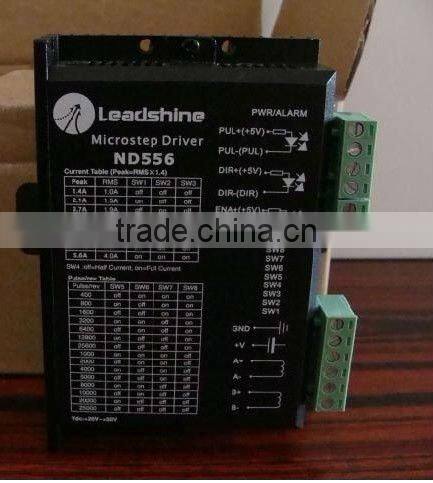

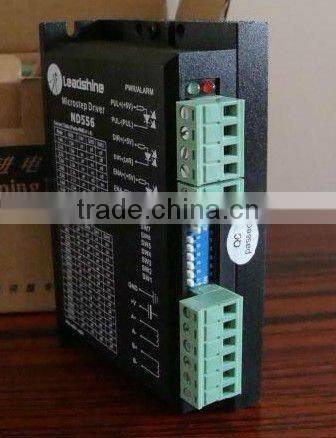

driver nd556
Electrical Specifications
instructions | unit | min | Typ | max |
Output Current | A | 1.4 | - | 5.6 |
Input supply voltage | VDC | 18 | 36 | 50 |
Control signal input current | mA | 7 | 10 | 16 |
Step pulse frequency | KHz | 0 | - | 400 |
Pulse low time | μs | 1.2 |
|
|
Insulation resistance | MΩ | 500 |
|
|
