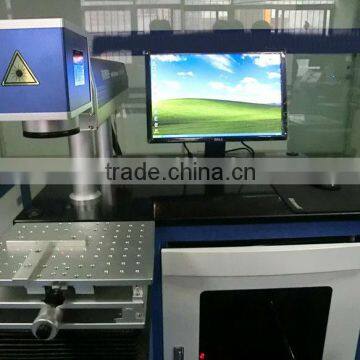

YAG 50W LASER MARKING MACHINE

Specifications

Semiconductor Laser Marking Machine

Semiconductor marking machine use semiconductor with a wavelength of 0.808 μm laser diode pump Nd: YAG as medium ,

the media have a lot of reverse particles, under the power of Q-switch the media formed a wavelength of 1.064 μm giant

pulse laser output, electro-optical conversion efficiency is high. laser beam change optical path through the computer

controlled galvanometer to mark automatically .

product performance

Imported semiconductor lasers, acousto-optic Q head, high-speed scanning galvanometer. Small beam spot,

high precision marking, spot stable and reliable, fast, marking

effect easily debugged,

and low power consumption, low processing costs, can meet the need of 24 hours full load operation.

Software using WINDOWS interface, compatible with COREI-DRAW, AUTOCAD, PHOTOS Bu lOP and many

other software outputed files.

Support PLT, PCX, DXF, BMP and other files, directly use SH ×, TTF font.

Support automatic coding, serial number, batch number, date, bar code and two-dimensional code marking.

Computer freely design graphics and text, flexible and convenient, without printing consumables. Processing costs is low.

Laser marking is non-toxic, non-distortion, no pollution, wear-resistant. Optional rotary table for marking circle products.

Application:

Suitable for metal, alloy and metal-oxide, ABS, epoxy resin, ink, etc., and widely used in electronic components,

electrical appliances, jewelry, glasses, hardware, auto parts,

telecommunication products, plastic buttons, integrated circuits (IC), etc. industry.

Advantages
Lasers: high-performance semiconductor lasers, good beam quality. good light pattern, beam power stable, life expectancy up to 10,000 hours.

Q-switch: The imported configuration, low fault rate, stable performance.

Control computer: usage of industrial control computer (IPC), to ensure the industrial equipment can work long and stable in industrial

environments, and not easy to crash.

Control software: powerful function, with a graphical alignment, hierarchical to set parameters and red light position preview function.

Graphic calculation accurate .Can mark a variety of bar code and graphics code, and have the reverse marking function.

Circulation water cooling system: The split type structure allows heat to go outside, the device can work normally in the environment without air-conditioner , the staff's work environment is comfortable.
Parameters:
