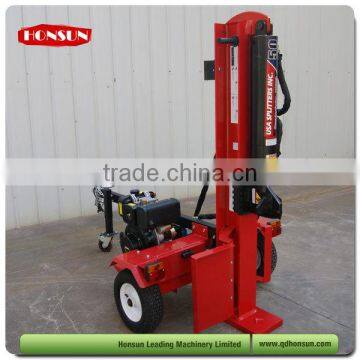

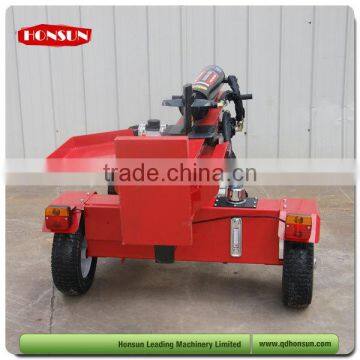

Qingdao Honsun Split Blade Protected Horizontal and Vertical China Screw 50 Ton Log Splitter With Diesel Engine
US$ 996 - 1,112
/ Piece
1 Piece(Min. Order)
- Qingdao
- T/T D/P D/A
You May Like
-
Qingdao Honsun Split Blade Protected Horizontal and Vertical China Screw Wood Splitter With Diesel 50 Tonne
-
Qingdao Honsun Split Blade Protected Horizontal and Vertical China Screw 50ton Diesel Power Log Splitter
-
Qingdao Honsun Split Blade Protected Horizontal and Vertical China Screw 50T Diesel Wood Splitter
-
Qingdao Honsun Split Blade Protected Horizontal and Vertical China Screw 50ton Diesel Motor Log Splitter
-
Qingdao Honsun Split Blade Protected Horizontal and Vertical China Screw Diesel Motor Wood Splitter
-
50T 1050mm 15HP With 18 Months Warranty Cheap Large Industrial Horizontal 50T Wood Splitter With Diesel Motor
Product Details
| Condition | New | Type | Log Splitter | |
| Use | Split wood and log | Power Type | Diesel | |
| Production Capacity | 50 ton | Place of Origin | Shandong, China | |
| Brand Name | HONSUN | Model Number | HS-LS-50TD | |
| Dimension(L*W*H) | 2300*1150*960mm | Weight | 310 kg | |
| Certification | CE EPA | Warranty | 18 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
| √ | Model No. | HS-LS-50TD |
| √ | Manufacturer | Honsun |
| √ | Pre-assembled | No |
| √ | Engine brand | Kohler (USA), Koop (China) |
| √ | Displacement | Kohler 442cc, Koop 406cc |
| √ | Horse power | Kohler 9.8hp, Koop 9.0hp |
| √ | Engine start | Electric start |
| √ | Splitting method | Vertical and horizontal |
| √ | Max log length | 25" |
| √ | Max log diameter | 25" |
| √ | Hydraulic cylinder | 5.5"x25" |
| √ | Ram travel | 25" |
| √ | Cycle time | 12 seconds |
| √ | Wedge | 4 way blade (2 way available), replaceable, sharpenble |
| √ | Max force | 50ton |
| √ | Control valve | 100L three position with auto-return (one or two handle available) |
| √ | Hydraulic filter | Yes |
| √ | Pump | 22 gallon, 2 stage |
| √ | Tank capacity | 36L |

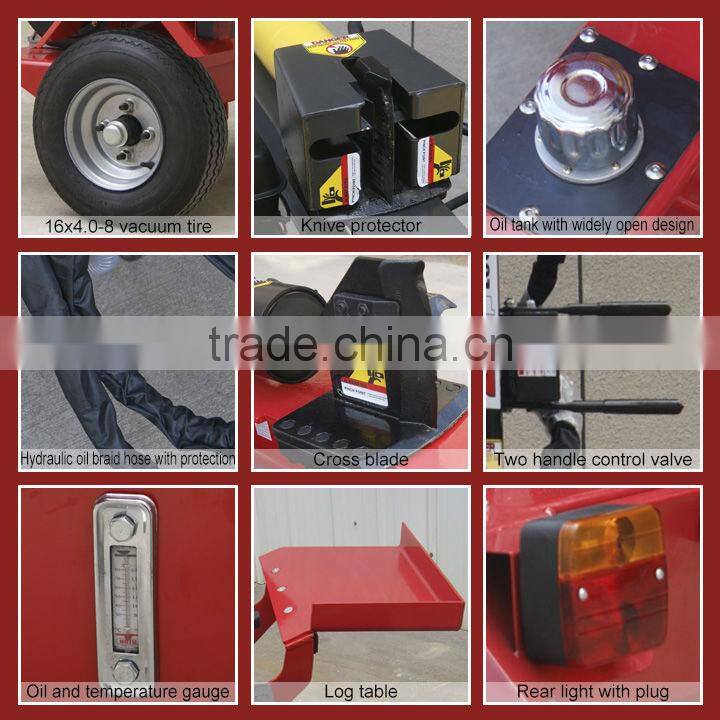

| √ | Log cradles | Included |
| √ | Oil and temperature gauge | Included |
| √ | Standard tire | 16x6.5-8 |
| √ | Vacuum tire | 16x4.0-8 |
| √ | Fenders | Included |
| √ | Log guardian | Included |
| √ | Tow hitch | 2" America, Australia, Europe and New Zealand types |
| √ | OEM | Acceptable |
| √ | Consumer warranty | 18 months |

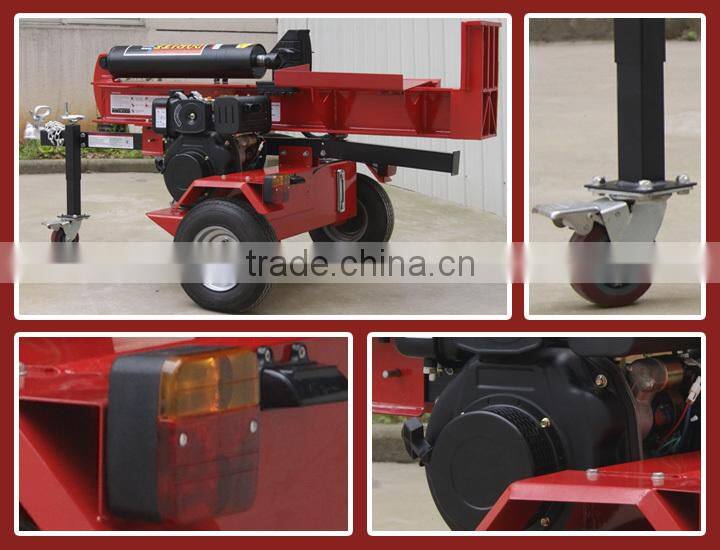

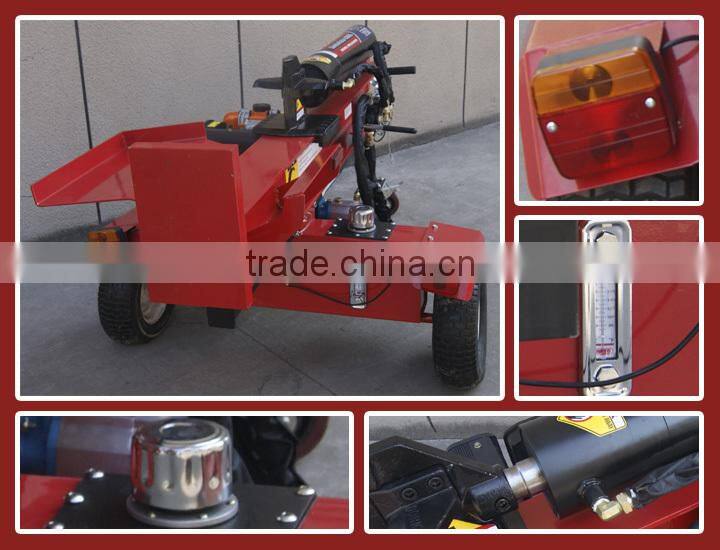

The Pro's Choice
| • | Kohler KD420 9.8hp diesel engine configuration option |
| • | With rear light and license plate light, signal synchronized with the car |
| • | Special design, oil tank can be widely opened to get rid of silt |
| • | Backplate with pierced design, deform difficulty |
| • | Front wheel with lift |
| • | Oil and temperature gauge, can see oil ullage obviously |
Engine Details
| Engine brand | KOOP |
| Type | 186SF(E) |
| Horse power | 9HP |
| Rated power | 6.3kw |
| Displacement | 406cc |
| Bore | 86mm |
| Stroke | 70mm |
| Weight | 45lbs |
