Qingdao Honsun Leading International Trade Co., Ltd.: Qingdao, Shandong, China; Main products: chipper, splitter, wood chipper, log splitter, stump grinder

Home > Products > 04. Log Splitter (Diesel) > 1050mm 15HP With 18 Months Warranty Cheap Large Industrial Horizontal 50T Diesel Motor Log Splitter

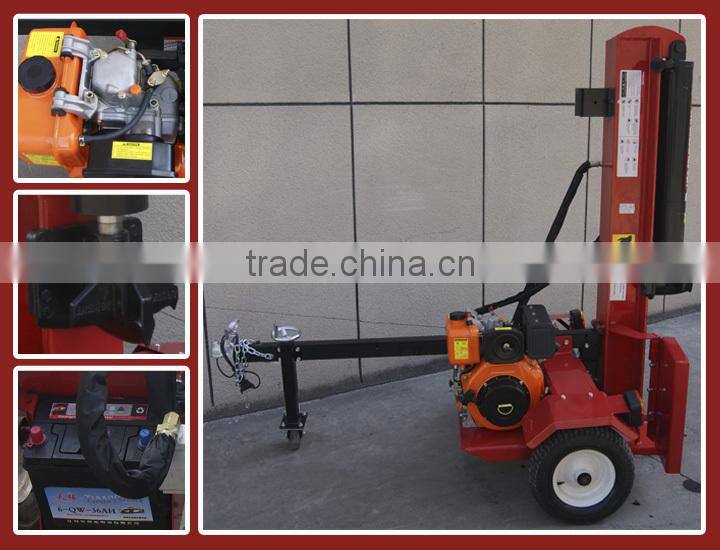

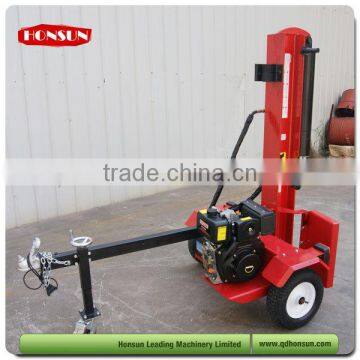

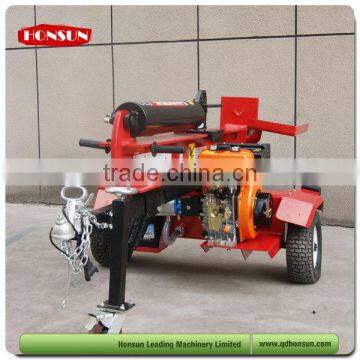

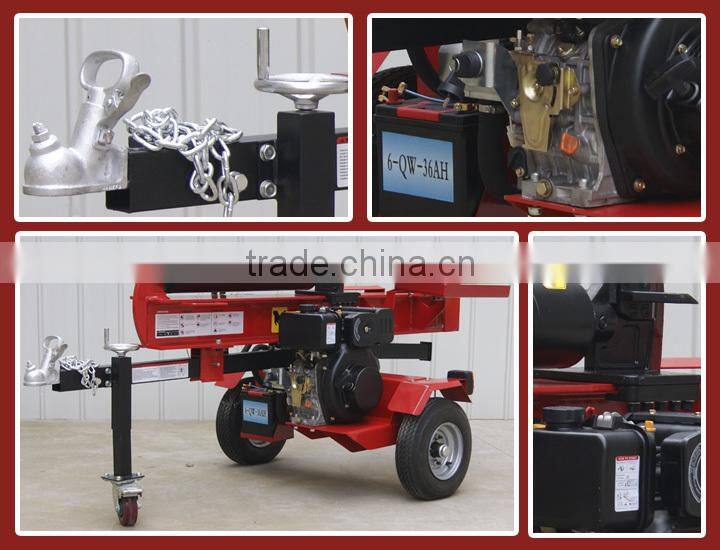

1050mm 15HP With 18 Months Warranty Cheap Large Industrial Horizontal 50T Diesel Motor Log Splitter

FOB Price

US$ 996 - 1,112 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Log Splitter
Use	Split wood and log	Power Type	Diesel
Production Capacity	50 ton	Place of Origin	Shandong, China
Brand Name	HONSUN	Model Number	HS-LS-50TD
Dimension(LWH)	23001150960mm	Weight	310 kg
Certification	CE EPA	Warranty	18 months
After-sales Service Provided	Overseas service center available

Specifications

√	Model No.	HS-LS-50TD
√	Manufacturer	Honsun
√	Pre-assembled	No
√	Engine brand	Kohler (USA), Koop (China)
√	Displacement	Kohler 442cc, Koop 406cc
√	Horse power	Kohler 9.8hp, Koop 9.0hp
√	Engine start	Electric start
√	Splitting method	Vertical and horizontal
√	Max log length	25"
√	Max log diameter	25"
√	Hydraulic cylinder	5.5"x25"
√	Ram travel	25"
√	Cycle time	12 seconds
√	Wedge	4 way blade (2 way available), replaceable, sharpenble
√	Max force	50ton
√	Control valve	100L three position with auto-return (one or two handle available)
√	Hydraulic filter	Yes
√	Pump	22 gallon, 2 stage
√	Tank capacity	36L
√	Log cradles	Included
√	Oil and temperature gauge	Included
√	Standard tire	16x6.5-8
√	Vacuum tire	16x4.0-8
√	Fenders	Included
√	Log guardian	Included
√	Tow hitch	2" America, Australia, Europe and New Zealand types
√	OEM	Acceptable
√	Consumer warranty	18 months

The Pro's Choice

•	Kohler KD420 9.8hp diesel engine configuration option
•	With rear light and license plate light, signal synchronized with the car
•	Special design, oil tank can be widely opened to get rid of silt
•	Backplate with pierced design, deform difficulty
•	Front wheel with lift
•	Oil and temperature gauge, can see oil ullage obviously

Engine Details

HONSUN™ LOG SPLITTER MODELS (Click below)

Gas log splitter Diesel log splitter Michanical log spliitter

>>> HS-LS-12A >>> HS-LS-26TD >>> HS-LS-34TM

>>> HS-LS-16A >>> HS-LS-30TD

>>> HS-LS-18T >>> HS-LS-36TD

>>> HS-LS-22A >>> HS-LS-42TD

>>> HS-LS-22T >>> HS-LS-45TD

>>> HS-LS-26T >>> HS-LS-50TD

>>> HS-LS-30T

>>> HS-LS-36T

>>> HS-LS-42T

>>> HS-LS-45T

>>> HS-LS-50T
