Home > Products > 04. Log Splitter (Diesel) > Italy Style High Capacity KOOP Engine With CE Approved Industrial Size Hydraulic 50T Diesel Motor Wood Splitter

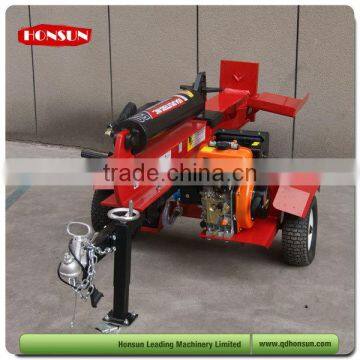

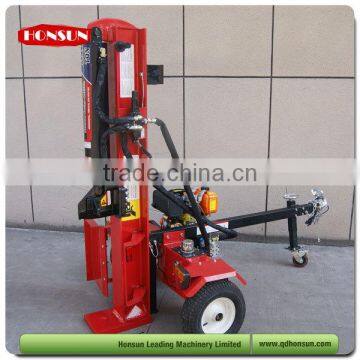

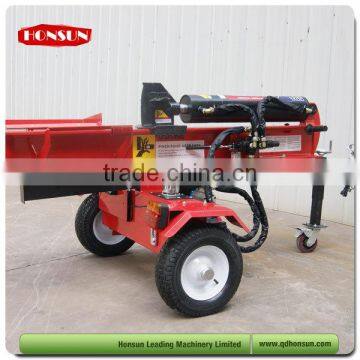

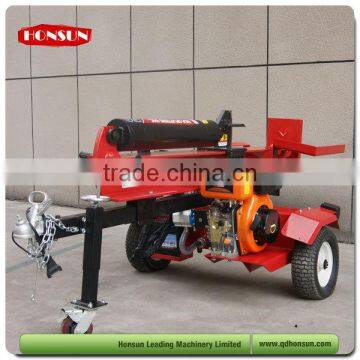

Italy Style High Capacity KOOP Engine With CE Approved Industrial Size Hydraulic 50T Diesel Motor Wood Splitter
US$ 996 - 1,112
/ Piece
1 Piece(Min. Order)
- Qingdao
- T/T D/P D/A
You May Like
-
KOOP Engine With CE Approved Industrial Size Wood Splitter With Diesel Motor 50 Tonne
-
KOOP Engine With CE Approved Industrial Size 50 Ton Log Splitter With Diesel Motor
-
Italy Style High Capacity KOOP Engine With CE Approved Industrial Size 50 Ton Log Splitter With Diesel Power
-
KOOP Engine With CE Approved Industrial Size Wood Splitter With Diesel 50 Ton
-
Italy Style High Capacity KOOP Engine With CE Approved Industrial Size 50ton Diesel Log Splitter
-
Italy Style High Capacity Koop Engine With CE Approved Industrial Size 50ton Hydraulic Diesel Log Splitter
Product Details
| Condition | New | Type | Log Splitter | |
| Use | Split wood and log | Power Type | Diesel | |
| Production Capacity | 50 ton | Place of Origin | Shandong, China | |
| Brand Name | HONSUN | Model Number | HS-LS-50TD | |
| Dimension(L*W*H) | 2300*1150*960mm | Weight | 310 kg | |
| Certification | CE EPA | Warranty | 24 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
| √ | Model No. | HS-LS-50TD |
| √ | Manufacturer | Honsun |
| √ | Pre-assembled | No |
| √ | Engine brand | Kohler (USA), Koop (China) |
| √ | Displacement | Kohler 442cc, Koop 406cc |
| √ | Horse power | Kohler 9.8hp, Koop 9.0hp |
| √ | Engine start | Electric start |
| √ | Splitting method | Vertical and horizontal |
| √ | Max log length | 25" |
| √ | Max log diameter | 25" |
| √ | Hydraulic cylinder | 5.5"x25" |
| √ | Ram travel | 25" |
| √ | Cycle time | 12 seconds |
| √ | Wedge | 4 way blade (2 way available), replaceable, sharpenble |
| √ | Max force | 50ton |
| √ | Control valve | 100L three position with auto-return (one or two handle available) |
| √ | Hydraulic filter | Yes |
| √ | Pump | 22 gallon, 2 stage |
| √ | Tank capacity | 36L |
| √ | Log cradles | Included |
| √ | Oil and temperature gauge | Included |
| √ | Standard tire | 16x6.5-8 |
| √ | Vacuum tire | 16x4.0-8 |
| √ | Fenders | Included |
| √ | Log guardian | Included |
| √ | Tow hitch | 2" America, Australia, Europe and New Zealand types |
| √ | OEM | Acceptable |
| √ | Consumer warranty | 18 months |
The Pro's Choice
| • | Kohler KD420 9.8hp diesel engine configuration option |
| • | With rear light and license plate light, signal synchronized with the car |
| • | Special design, oil tank can be widely opened to get rid of silt |
| • | Backplate with pierced design, deform difficulty |
| • | Front wheel with lift |
| • | Oil and temperature gauge, can see oil ullage obviously |
Engine Details
| Engine brand | KOOP |
| Type | 186SF(E) |
| Horse power | 9HP |
| Rated power | 6.3kw |
| Displacement | 406cc |
| Bore | 86mm |
| Stroke | 70mm |
| Weight | 45lbs |
