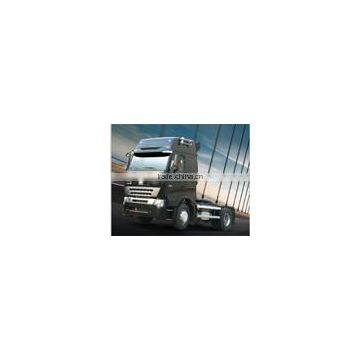

Sinotruck Howo a7 Tractor Truck 4x2 Euro 4 Low Price for Sale

Truck model

ZZ4187M3517N1B/T2GA

ZZ4187N3517N1B/N2GA

ZZ4187N3517N1B/S2GA

ZZ4187N3517N1B/S2GC

cab

Type

A7-G

style

High floor and lengthen cab, single sleeper, the air suspension seat, adjustable steering wheel, air conditioning heater,

Engine

type

D10.30

D10.34

D10.38

D12.38

Rated power kW/rpm

221/1900

249/1900

279/2000

279/2000

Max torque Nm/rpm

1340/1200-1500

1490/1200-1500

1590/1200-1500

1650/1100-1500

emission         L

9.726

9.726

9.726

11.596

Style

In-line, six clyinder engine, inter-cooling, supercharger in the middle,

Clutch

The engine likeD10.38, D12.38 and D12.42 used 430A, D10.34 used 430B, D10.30 used 430C

transmmision

SINOTRUK HW SERIES 10 transsimision, the structure of main and vice box, D10.30 and D10.34 with HW15710, D10.38 and D12.42 with HW19710

Front axle

HF, rated weitht 7 t, the style of disk or drum

Rear axle

HW166(3.73, optional 4.22); besides ZZ4187V3517N1B/V2Pcyou can thoose ST16(3.93; optional 4.42; 4.8)

suspension

steel spring, damper, anti-roll bar in front/rear suspension

Steering system

ZF8098steering gear box,Zfsteering oil pumpe,system pressure18MPa

Electric system

CAN,voltage: 24V; engine: 1540W; starter: 7.5kW ; accumulater: 12V/165Ah, 2

Tyre

315/80R22.5; optional 12.00R20

Fuel tank capacity   L

Standard 400L, optional 600L

Curb weight             kg

6800

6800

6800

6800

Gvw                  kg

18000

18000

18000

18000

Trailer total quality      kg

35000

35000

35000

35000

Max load of saddle        kg

11070

11070

11070

11070

Dimension(length x widthx)   mm

6160x2496x3560

6160x2496x3560

6160x2496x3560

6160x2496x3560

Wheel base              mm

3500

3500

3500

3500

Front/rear overhang         mm

1540/1120

1540/1120

1540/1120

1540/1120

Truck(fronty/rear          mm

2022/1850

2022/1850

2022/1850

2022/1850

Min ground clearance       mm

268

268

268

268

Approaching/departure angle

15/38

15/38

15/38

15/38

Max speed              km/h

101

101

101

101

Max grade ability            %

26

29

31

33

Min turning diameter         m

14

14

14

14

Saddle grounclearance (empty/full) mm mm

1325/1218

1325/1218

1325/1218

1325/1218

Front/rear turning radius        mm

1950/1860

1950/1860

1950/1860

1950/1860

Traction pin specifications

50#(2hour

50#(2hour

50#(2hour )

50#(2 hour
