Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SMAC | Model Number | TM6330 | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 380V | Power(W) | 2.25kw | |
| Dimension(L*W*H) | 1516*1550*2080mm | Weight | 1700kg | |
| Certification | CE;ISO | Warranty | 1 year |
Product Description

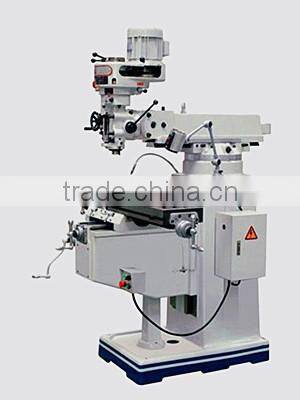

china well milling machine TM6330
china well milling machine TM6330
Double 550 swallowtail guideway is adopted on both Y and Z-axis, so it is easy to adjust. The guideway on saddle is lined with TF wearable material.
1. 550 swallowtail guildeway is adopted on Z-axis, and rectangular guideway on Y-axis.
2. Adopted strengthen rib on both sides of the columb, that makes the machine rigidly and beautiful.
1. Fixed structure is used to conned the mill head without ram, which makes the cut intensity well.
2. Rectangular guideway on Y, Z-axis makes the machine stable and rigidly. Guideway with TF wearable material.
1. Rectangular guideway on Y, Z-axes is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.
1. Rectangular guideway on Y, Z-axes makes the machine stably and rigidly.
2. The guideway on saddle is lined with TF wearable material.
Rectangular guideway is adopted both on Y, Z-axes. The guideway on saddle is lined with TF wearable material, which makes the machine stably and rigidly,also makes it beautiful and easy to operate.
china well milling machine TM6330
| Model | TM6323A | TM6323B | TM6325 | TM6325A | TM6323B | TMU6325 | TM6325C | TM6325D | TM6330 | TM6330A | TM6333 | TM6333A | |
| Table size | 230x1067(9"x42") 230x1246(9"x49") | 254x1270 (10"x50") 254x1370 (10"x54") | 250x1270 (10"x50") | 254x1270 (10"x50") 254x1370 (10"x54") | 305x1370 (12"x54") 305x1500 (12"x60") | 330x1370 (13"x54") 330x1500 (13"x54") | |||||||
| Long travel | 650 840 | 850 950 | 770 | 850 950 | 870 1000 | 840 1000 | |||||||
| Cross travel | 305 | 420 | 400 | 420 | 420 | 380 | 368 | ||||||
| Vertical travel | 400 | 420 | 400 | 420 | 430 | 450 | |||||||
| T-slot No. and size | 3 x 16 | ||||||||||||
| Ram travel | 312 | 470 | 500 | ||||||||||
| Distance from spindle nose to table surface | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| Spindle hole taper | (Standard): R8 (Optional): ISO 30/ISO 40 | (Standard): ISo 40 | |||||||||||
| Spindle travel | 127 | ||||||||||||
| Spindle speed | (standard): (shift gradel) 50Hz 65-4500 60Hz: 80-5440 | ||||||||||||
| (optional): (variable) 65-4500 | (optional): (variable) 65-3750 | ||||||||||||
| Auto quill feed | (three steps): 0.04(0.0015"/0.08(0.003")/0.15(0.006") mm/revolution | ||||||||||||
| Spindle motor | 2.25Kw/3HP | 2.25Kw/5HP | 2.25Kw/5HP | ||||||||||
| Head swivel | 90° | ||||||||||||
| Head tilting | 45° | 45° | 45° | 45° | 45° | 45° | FIX | 45° | 45° | 45°FIX | 45° | FIX | |
| Dimension of package | one miller per case | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | ||||||||
| two miller per case | 1450x1570x2080 | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | |||||||||
| three miller per case | 1450x2180x2080 | 1650x2285x2235 | |||||||||||
| weight (kg) | 1100 | 1160 | 1550 | 1380 | 1420 | 1650 | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 | |
| Old model | X6323A | X6323B | X6325 | X6325A | X6323B | XU6325 | X6325C | X6325D | X6330 | X6330A | X63 | ||
