Home > Products > Hydraulic press > C-type/high speed precision power press

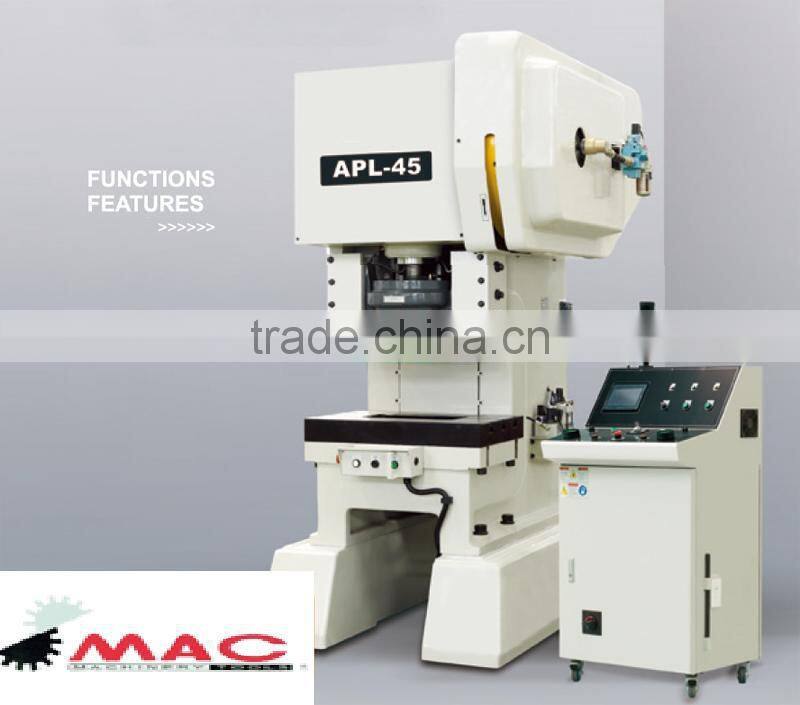

C-type/high speed precision power press
US$ 1,000 - 6,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Pneumatic | Place of Origin | Jiangsu, China | |
| Brand Name | SMAC | Model Number | APL-45 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
for high precision and quantity products
with dynamically balance device. ensures press and mold running stability.
the slide hydraulic locking system and die-stick release device for easy operation
plunger type connection rod provides precision &operation stability
| name | APL-25 | APL-45 | APL-65 | |||||||
| model | A | B | C | A | B | C | A | B | C | |
| capacity | ton | 25 | 45 | 65 | ||||||
| rated tonnage point(B.D.C) | mm | 1.2 | 1.2 | 1.6 | ||||||
| stroke | mm | 20 | 30 | 40 | 20 | 30 | 40 | 20 | 30 | 40 |
| stroke per minute | s.p.m | 100-600 | 100-500 | 100-400 | 100-500 | 100-400 | 100-300 | 100-400 | 100-350 | 100-300 |
| die height(SDAU) | mm | 225 | 220 | 215 | 265 | 260 | 255 | 305 | 300 | 295 |
| bolster area(L.R.XF.B.) | mm | 650*390*75 | 760*450*90 | 860*520*100 | ||||||
| slide area(L.R.XF.B.) | mm | 280*250 | 380*320 | 460*370 | ||||||
| slide adjustment | mm | 30 | 30 | 50 | ||||||
| main motor | kw | 3.7*4P | 5.5*4P | 7.5*4P | ||||||
| shank hole | mm | Φ38.1 | Φ50 | Φ50 | ||||||
| hole of bed(L.R.xF.B) | mm | 270*150 | 400*200 | 480*260 | ||||||
| Lubrication system | forced recirculating lubrication | |||||||||
