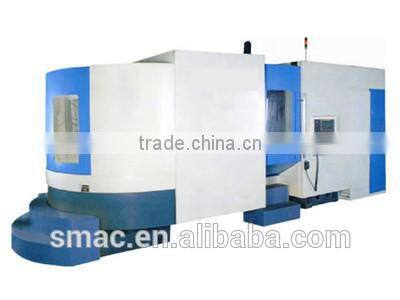

the Hot Sale and Low Price China Cheap Horizontal Machine Center TH(M)6363A of SMAC

china cheap horizontal machine center TH(M)6363A

Electric

Control system FANUC 0iMD(Optional FANUC 3i-MA,18iMB,siemeus 8400)

4-axes CNC controlled(X,Y,Z,B synchronousiy controlled)

Polar coordinate programming(G15,G16)

 Orthogonal coordinate rotation(G68,G69)

Linear,circular interpolation(G1,G2,G3)

R address format

3-D linear interpolation

Helical interpolation(2-axes circular interpolation and 1 linear interpolation)

Rapid positioning/Cakculator decimal programming

Algorism programming

Input/Out put resolution 0.001mm

Max.Programming value ±8 digits

Feed rate setting mm/min or inch/min

Feed rate magnification 0 to 120%.Rapid feed Magn.100%,50%,25%,F0

Direct spindle RPM programming,Spondle RPM Magnification 50% to 120%

Constant control for tangential velocity

Feed well

Automatic acceleration(Rapid feed:Linear;Feed:Exponentital)

Servo tracking function

Accurate positioning(G9)

Programmable dwell(G4)

Manual and automatic homing(G27,G28,G29)

Coordinate system selection(G52,G53,G54 to G59,G92)

Absolute and incremental value programming(G90,G91)

Background edit

Teaching programming

Program search and serial number search

Program stop (M0,M1,M2,M30)

Sub program evocation(M92,M99)

Programmable plane selection(G17,G18,G19)

Tool radius compensation(G40,G41,G42)

Tool length compensation(G43,G44,G49)

JOG/Incremental JOG

G-code transfer between metric system and Inch system(G20,G21)

Dry run,machine lock,Z-axis lock

Fixed cycle(G80,G89,G73,G74,G76)

Software and hardware axial limit

RS232C Input/output interface

400 pairs tool offset

Programmable data input(G10),tool and workpiece zero point offset could be done tprogram evocation(M92,M99)

Programmable plane selection(G17,G18,G19)

Tool radius compensation(G40,G41,G42)

Tool length compensation(G43,G44,G49)

JOG/Incremental JOG

G-code transfer between metric system and Inch system(G20,G21)

Dry run,machine lock,Z-axis lock

Fixed cycle(G80,G89,G73,G74,G76)

Software and hardware axial limit

RS232C Input/output interface

400 pairs tool offset

Programmable data input(G10),tool and workpiece zero point offset could be done through program

Storable pitch error compensation

Bulit-in PMC

Manual impulse generator

10.4''LCD

Background edit function for the memory

Accurate acceleration and deceleration

HRV control

Tool life management

Rigid tapping

Look-ahead function

Additional 48 pairs workpiece coordinate system

Mirror imaging

Mid program restart

Opertation panel

Display function:PMC data window

Program display

Location data display

Parameter setting and display

Language selectable

Tool offset table display

Alarm and operation information display

Alarm and operation record display

Clock display

Running time and parts sounting display

Cutting speed and spindle RPM display

Servo and spindle setting,Diagnosis menu

Customer MICRO8

Storage length 650M(=256kb)

Graphic funcation

Auto communication programming with graphic function(Optional)

Servo waveform display

DNC Function(Optional)

MANUAL Quide i(Optional)

FAST Ethernet interface(Optinal)

Machine configuration

Full closed machine cover

Work lamp

Tri-colro lamp

Chip remover

Tool cooling system

Self-diagnosable system

Attached cover

Pallet positioning hole blowing device

Spindle hole blowing device

Manual pulse generator

Self power brake system

Manual tool change device(tool magazine)

Manual tool change device(spindle)

Tool kit

Automatic Lubrication system

Square block

Cylindrical contour block

Pallet cleaning device

Chain-type chip remover and carrier

Coolant degreasing device

Squirt gun

Manual blowing gun

Tool probe

Workpiece probe

Rotary window

china cheap horizontal machine center TH(M)6363A

China horizontal machine center THMS6340

Our service:

1,Your inquiry will be replied in 24 hours.

2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6

    years.And there is more industry technology experience for 20 years with our manufactures

3.To offer free spare parts and service within one year of warranty

4.Technology Support Provide operation video for training

5.Professional after-sales service team

6.Give reasonable offers with the best quality

Our advantage:

1,More then 20 years experience for indusry product

2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved

3,Professional service and technology

4,Excellent reputation all over the world

5,Final exported producuts would pass strict test by international authority BIVAC

6, There is more exporting experience for 20years with our owned manufacture/company

Welcome to SJR Machinery Limited

We are looking forward to bulding sincere and long-term business relationship with you

BEST QUALITY  GOODS   ******  LOWEST PRICE     ******    PERFECT SERVICE

Our products are exported to more than 50 countries, more than 700 customers
