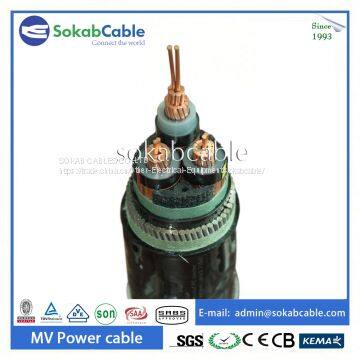

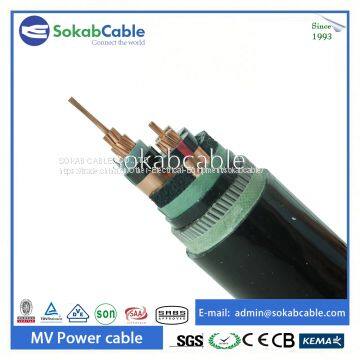

High Voltage Steel Wire Armored Power Cable
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
Product Details
| Brand Name | SOKABCABLE | Place of Origin | China | |
| Model Number | SKHVSWA | Application | Underground | |
| Jacket | PVC | Conductor Material | Copper | |
| Number of Conductors | 1-5 cores | Insulation Material | XLPE |
Product Description
1. Description:
Copper conductor,XLPE insulated, PVC sheathed power cable, Steel wire armored voltage: 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 26/35kv
2. Applications:
These cables is suitable for using in power distribution networks or fixed installations for industrial equipment with rated voltage up to 21/35KV They are most suitable for underground burial

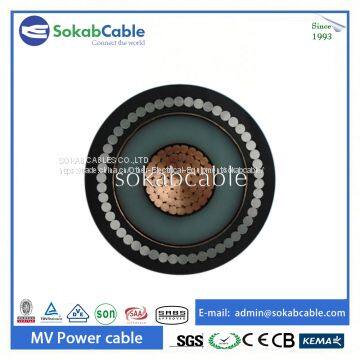

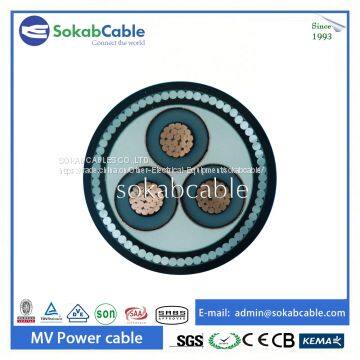

3. Construction
Copper conductor | Plain circular, compact or shaped stranded copper conductor, conform to IEC 60228, Class2 |
Conductor screen: | Semi-conducting compound |
Insulation | XLPE( cross-linked polyethylene) rated at 90 ℃ |
Conductor screen | Semi-conducting compound |
Metallic Screen | Copper tape |
Bending | PVC |
Armor | Galvanized steel wire |
Sheath | PVC type ST2 to IEC 60502 black. or PE |
4. Standard:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, AS/NZS, UL upon request
5. Technical data:
Rated voltage: 21/35KV
Max. Operating Temp of Conductor: under normal 90℃, emergency ( 130℃), short circuit no more than 5s (250℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15x cable O.D for single core
12 x cable O.D for multi core
6. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
