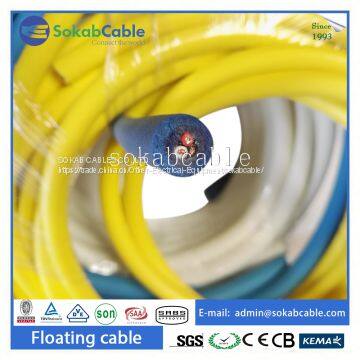

Foam PVC sheathed swimming pool floating cable
- 1 Meter / Meters per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
-
Swimming pool used underwater flexible electrical cable
-
Solid copper conductor PVC insulated electrical wire
-
Strand copper conductor PVC insulated electrical wire
-
Flexible copper conductor PVC insulated electrical wire
-
PVC insulated and sheathed multicore electrical wire
-
Flat 2 core or 3 core wire with and without earth core
Product Details
Brand Name | SOKABCABLE | Place of Origin | China | |
Model Number | SKFCZB | Application | swimming pool cable, floating cable | |
Jacket | PVC | Conductor Material | Copper | |
Number of Conductors | 1-3 core | Insulation Material | PVC |
Product Description
SOKAB high quality cable has below advantage:
√:Fantastic foaming sheath, no gap between inner and outer sheath,
√:No adhesion between inner and outer sheath, not leaking at all,
√:Quality guaranteed by us.
√:Smooth and good foaming rate,
√:not leaking at all, cable has supper performance to pass bending test.
√:Used for long years.
1. Description:

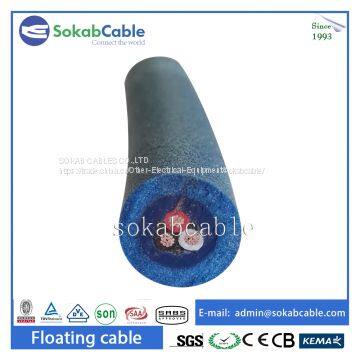

Bare copper stranded, PVC insulation, Press extruded TPE,Two filler inside,Foam PVC
2. Applications:

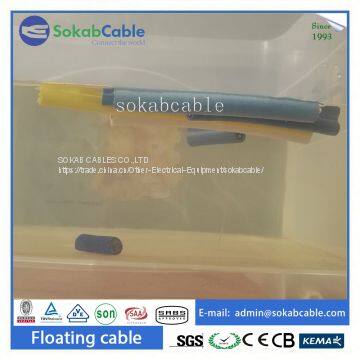

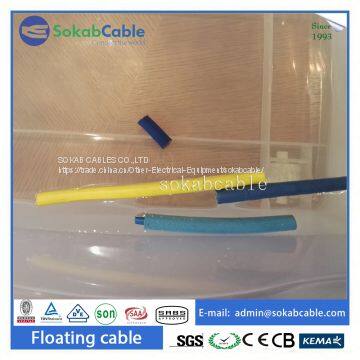

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
3. Construction
Conductor | Bare copper stranded |
Insulation | PVC, HT PVC 105 ℃ |
Inner jacket | Press extruded TPE |
Outer jacket | Foam PVC, ( colour: blue),Foam polyolefin, TBD |
4. Standard:
Pass UL test, other standard like AS/NZS, BS, DIN,upon request
5. Specification:
Specification | Insulation Diameter(mm) | Sheath Diameter(mm) |
2 x 12 AWG | 4.0 | 18.0 |
2 x 16 AWG | 2.9 | 12.4 |
2 x 18 AWG | 2.4 | 10.2 |
2x16AWG + 1x18AWG | 2.9/2.4 | 13.5 |
2x16AWG + 2x22AWG | 2.9/2.0 | 13.2 |
4x16AWG + 2x20AWG | 2.9/2.0 | 17.8 |
