Home > Products > Plastic drainage board > 1.0mm HDPE Drainage Board
1.0mm HDPE Drainage Board
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | starring | |
| Model Number | starring |
Product Description

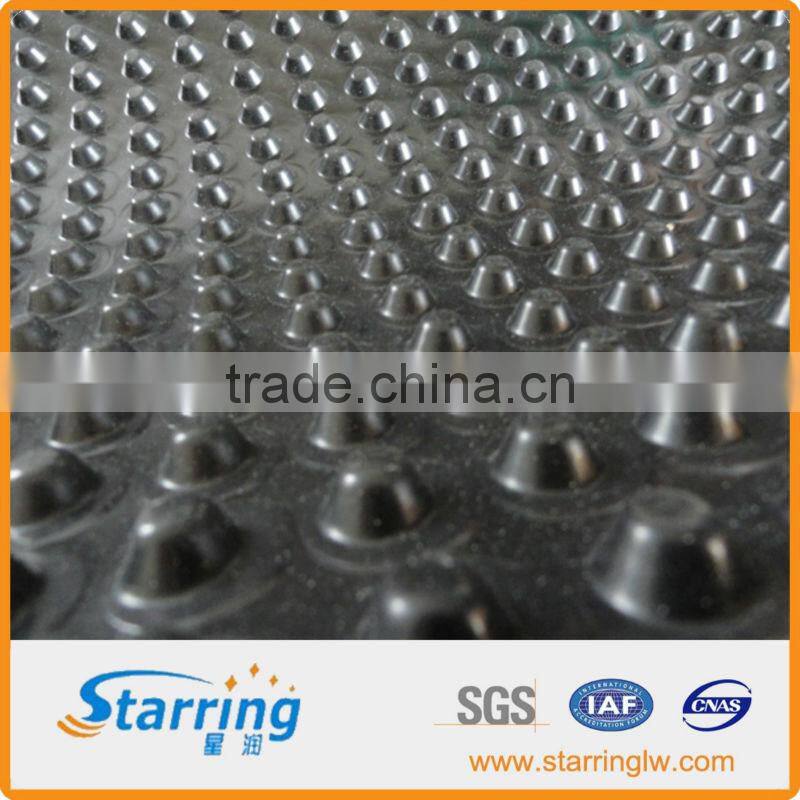

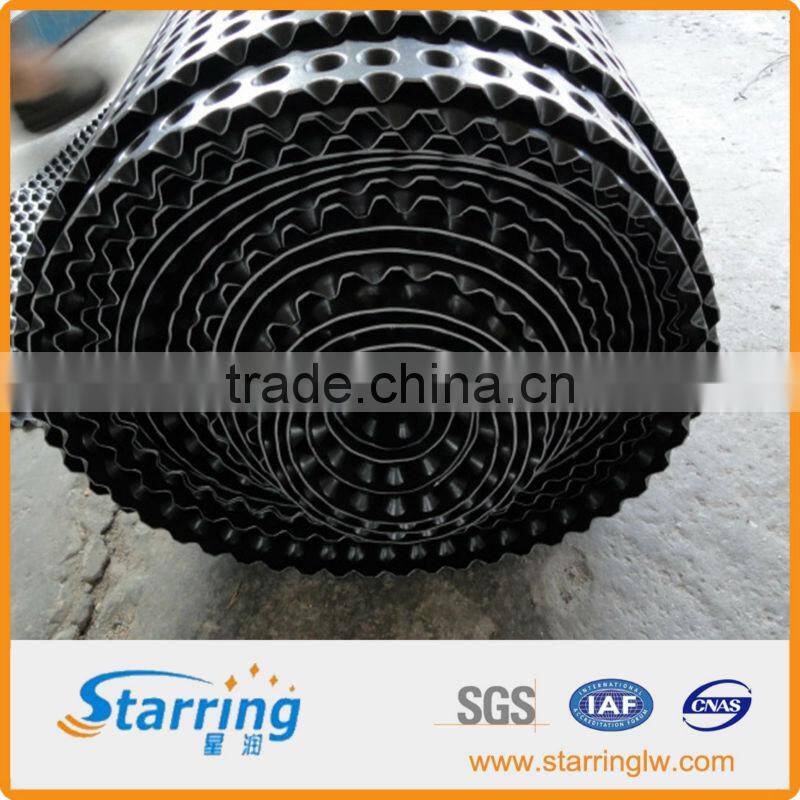

1.0mm HDPE Drainage board
1.0mm HDPE Drainage board Introduction:
drainage board for treatment of soft foundation is made of a core board with drainage grooves and upper and lower non-woven cloth filtering films and features that the filtering films and the core boaed are produced into one intergral through a thermally welding process.with high strength and reliable drainage,the present invention may be used in drainage of various kinds of foundation, including deep foundation.

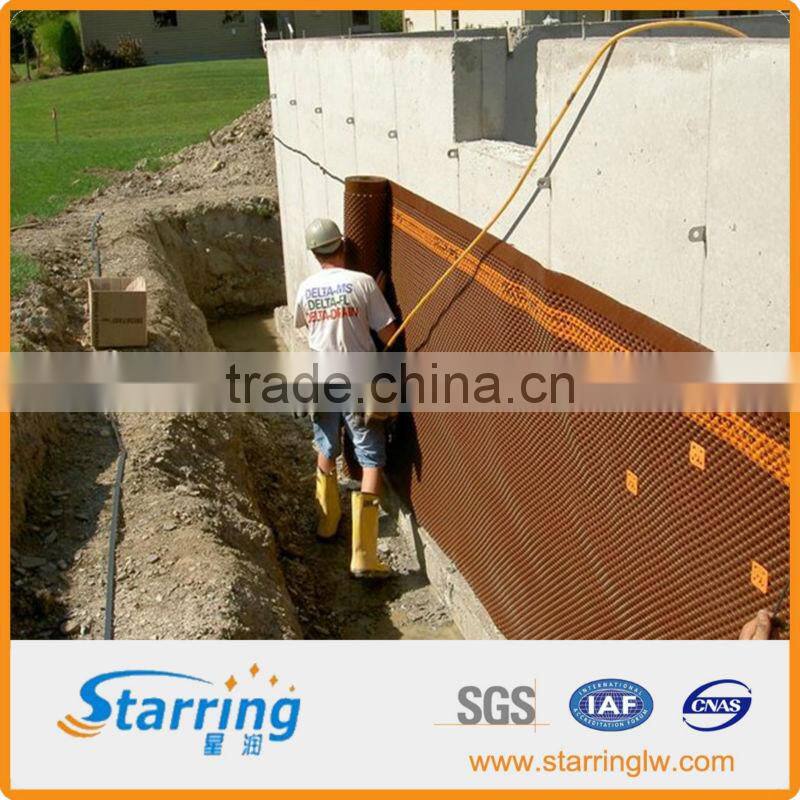

Drainage board is used for waterproof and drainage for tunnels,subway,underground project,especially suit for leakage on joint.It sets in waterproof and drainage together,which can resolves the waterproofing and drainage relations successfully.
1.0mm HDPE Drainage board Features :
1. Durable, resist compression but light weight
2. Strong drainage capacity
3. Soundproofing, waterproofing and dampproofing
4. Saving investment, and environmental protection for your projects
1.0mm HDPE Drainage board Index
No. | Item | Value | |||||
1 | Model | H10-1.0 | H20-1.0 | H10-1.5 | H20-1.5 | H10-2.0 | H20-2.0 |
2 | Tensile strength,N/5cm | 400 | 400 | 500 | 500 | 700 | 700 |
3 | Break Elongation,% | 200 | 200 | 300 | 300 | 400 | 400 |
4 | Stereo tensile strength | 400 | 320 | 450 | 370 | 500 | 420 |
5 | Dimensional stability,% | ±2 | |||||
6 | Bending at low temperature | Bending without crack at -35°C | |||||
7 | Vertical water flow rate.cm3/s Water pressure is 5KPa | 5.6 | 8.6 | 5.6 | 8.6 | 5.6 | 8.6 |
8 | Vertical water flow rate.cm3/s Water pressure is 5KPa | 15.2 | 18.2 | 15.2 | 18.2 | 15.2 | 18.2 |
Pls feel free to contact us:
Contact Us
- Laiwu Starring Project Material Co., Ltd.
- Contact nameVivian Xu Chat Now
- Phone86-634-6878566
- AddressNo. 39, Building 27, No. 17, Wen River Street, High-Tech Zone , Laiwu, Laiwu, Shandong
