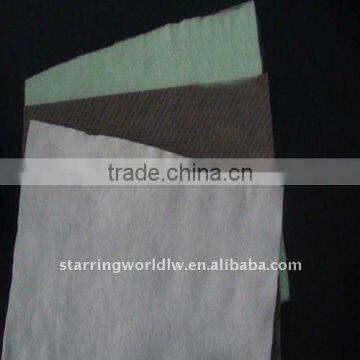

300 GSM Polyester Nowoven Geotextile for Landfill
- Qingdao
- T/T
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Starring | |
Model Number | FNG | Geotextile Type | Non-Woven Geotextiles |
Product Description
Specifications
300 GSM Polyester Nowoven Geotextile for Landfill1.Abrasion resistance,flexibility
2.Safe and easy for construction
Filament Spunbond Needle Punched Geotextile
Products Description
Filament spunbond needle punched geotextile is made by dacron filament or polypropylene filament, featured with good physical property, high tensile, resisting tearing,bursting,stabbing,etc.It boasts excellent drainage,separation,filtration,protection performance.
Products Features
A.Abrasion resistance,flexibility
B.Safe and easy for construction
C.Excellent drainage performance
D.High strength, anti-aging,anti-acid and alkali
Applications of geotextile
A.Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
B. Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the
airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
C.Adding muscle:
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
D. Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
Technical parameters :
Item | Value | ||||||||||
Nominal breaking srength (KN/m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||
Breaking strength (MD/CD) (KN/m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||
Elongation at break (MD/CD) (%) | 40-80 | ||||||||||
CBR mulen burst strength (KN≥) | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 | ||
Tear stength (KN) | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 | ||
Sieve size O90 (mm) | 0.05-0.20 | ||||||||||
Vertical permeability coeffcient (cm/s) | K×(10-1-10-3) K=1.0-9.9 | ||||||||||
Thickness (mm) | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 | ||
Width variation (%) | -0.5 | ||||||||||
Weight variation (%) | -5 |
