Home > Products > Filament Spunbond Needle Punched Geotextile > Polyester Yarn Filament Spunbond needle punched geotextile

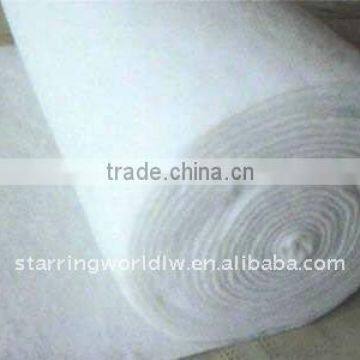

Polyester Yarn Filament Spunbond needle punched geotextile
- 40 Square Meter / Square Meters per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Starring | |
| Model Number | Geotexitles | Geotextile Type | Non-Woven Geotextiles |
Product Description
Specifications
Polyester Yarn Filament Spunbond needle punched geotextileSpecification: 100g/m2---800g/m2
Width:1-6m Length:50-100m
Filament Spunbond Needle Punched Geotextile
Products Description
Filament spunbond needle punched geotextile is made by dacron filament or polypropylene filament, featured with good physical property, high tensile, resisting tearing,bursting,stabbing,etc.It boasts excellent drainage,separation,filtration,protection performance.
Products Features
1.Abrasion resistance,flexibility
2.Safe and easy for construction
3.Excellent drainage performance
4.High strength, anti-aging,anti-acid and alkali
Application Range
Widely used in highway, railway, dam, coastal shoal engineering reinforcement, inverted filter, isolation and drainage.
Filament spunbond nonwovens geotetile specifications:
No. | Item | Specification | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | ||
1 | Weight Variation % | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 |
2 | Thickness mm ≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
3 | Width Variation % | -0.5 | ||||||||||
4 | Breaking Strength KN/m | 4.5 | 7.5 | 10.5 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 |
5 | Elongation at Break % | 40-80 | ||||||||||
6 | CBR Mullen Burst Strength KN ≥ | 0.8 | 1.1 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 |
7 | Sieve Size O90 (O95) mm | 0.07-0.2 | ||||||||||
8 | Vertical Permeability Coefficient cm/s | (1.0-9.9)*(10-1~10-3) | ||||||||||
9 | Tear Strength KN ≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 |
1. Specifications according to the unit area quality, the actual specifications in the range of two adjacent table, according to teh interpolation method to calculate the appropriate evaluation; beyond the scope of the table, the assessment specification to be negotiated by the supplier and buyer.
2. The standard valued by design or agreement.
3. Above targets data if the changes without notice.
4. We can produce other specifications production according to users' requirement.
