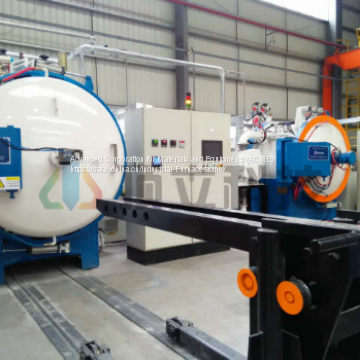

Vacuum Gas Quenching Furnace
- Any port in china
- T/T L/C D/P D/A Credit Card Other
- 180 days
You May Like
Product Details
| Brand Name | ACME | Place of Origin | China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Usage | Heat Treatment Furnace | |
| Condition | New |
Product Description
We have three types of Vacuum Gas Quenching Furnace :
I.Vertical Bottom Loading Vacuum Gas Quenching Furnace
Description of Vertical Bottom Loading Vacuum Gas Quenching Furnace
Vertical bottom loading gas quenching furnace is used for vertical gas quenching of materials of tool steel, die steel, high speed steel, super high strength steel, etc. It is specially applied for vacuum gas quenching of large size easy deforming products like long rod type parts, axle parts, plate type parts, etc. The components feature little deformation and good effect.
Specifications of Vertical Bottom Loading Vacuum Gas Quenching Furnace
| SpecModel | VVGQ-0608S | VVGQ-0808S | VVGQ-1010S | VVGQ-1212S | VVGQ-1215S | VVGQ-1515S | VVGQ-1520S |
| Effective hot zone size Φ D×H(mm) | Φ600 × 800 | Φ800 × 800 | Φ1000 × 1000 | Φ1200 × 1200 | Φ1200 × 1500 | Φ1500 × 1500 | Φ1500 × 2000 |
| Load Capacity (kg) | 650 | 850 | 1000 | 1150 | 1300 | 1450 | 1800 |
| Heating Power (kW) | 120 | 180 | 270 | 330 | 390 | 420 | 540 |
| Max.Temperature(°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree of vacuum gas quench furnace (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Vacuum degree (Pa) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas quenching pressure (bar) | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 |
| Cooling gas (99.995%) | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He |
II.Horizontal Singer Chamber Vacuum High Pressure Gas Quenching Furnace
Description of Horizontal Singer Chamber Vacuun High Pressure Gas Quenching Furnace
High pressure gas quenching furnace applied for gas quenching of materials like tool steel, die steel, high speed steel, etc. It has no special dimension and shape requires for the components. The components features little deformation and good cooling effect.
Specification of Horizontal Single Chamber Vacuum High Pressure Gas Quenching Furnace
| SpecModel | HVGQ-334S | HVGQ-446S | HVGQ-557S | HVGQ-669S | HVGQ-7711S | HVGQ-8812S | HVGQ-9915S |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 400 | 400 × 400 × 600 | 500 × 500 × 700 | 600 × 600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 |
| Load capacity of horizontal single chamber gas quenching furnace(kg) | 75 | 250 | 400 | 600 | 1000 | 1200 | 1500 |
| Heating Power (kW) | 48 | 75 | 90 | 150 | 270 | 360 | 480 |
| Max.Temperature(°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas quenching pressure (bar) | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 |
| Cooling gas (100.00%) | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He |
III. Horizontal Twin Chamber Vacuum High Pressure Gas Quenching Furnace
Description of Horizontal Twin Chamber Vacuun High Pressure Gas Quenching Furnace
Horizontal gas quenching furnace is used for gas quenching of materials like tool steel, die steel, high speed steel, super high strength steel, etc. The heating chamber is separated with the quenching chamber, which saves much energy and has good cooling.
Specifications of Horizontal Twin Chamber Vacuun High Pressure Gas Quenching Furnace
| SpecModel | HVGQ-334D | HVGQ-446D | HVGQ-557D | HVGQ-669D | HVGQ-7711D | HVGQ-8812D | HVGQ-9915D |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 400 | 400 × 400 × 600 | 500 × 500 × 700 | 600 × 600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 |
| Load capacity (kg) | 75 | 250 | 400 | 600 | 1000 | 1200 | 1500 |
| Heating Power (kW) | 48 | 75 | 90 | 150 | 270 | 360 | 480 |
| Max.Temperature (°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree of of vacuum twin chamber gas quenching furnace (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Transportation time (S) | ≤12 | ≤15 | ≤20 | ≤25 | ≤30 | ≤30 | ≤35 |
| Gas quenching pressure (bar) | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 | 6/10/15/20 |
| Cooling gas (100.00%) | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He |
