Home > Products > Wave solder pallet material/Alternative Durostone ESD material series > Durostone (Alterntive )Professional Supplier for Wave Solder Pallet

Durostone (Alterntive )Professional Supplier for Wave Solder Pallet

FOB Price

Negotiable / Kilogram

0 Kilogram(Min. Order)

Port SHENZHEN PORT
Payment TermsT/T PayPal Other
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	CATOS 2200
Material	Other, Fiberglass and epoxy resin mainly	Type	Insulation Sheet
Application	High Temperature

Product Description

Specifications

wave solder pallet material
1.operating temperature up to 385 degree
2. Less distortion
3. Superior dimensional stability

About Wave solder pallet material with resistant high temperature and competitive price in 2014

Trade names:	Alternative Durostone, Carbon Fiber Glass Reinforced Sheet
Available Type :	Sheet
Color:	Black, grey, ect.
Sheets Thickness:	3,4,5,8,10,12mm;other can be customized
Size:	1020mm x 1220mm;1220mmx2440mm

Weight Data
Size/sheet(mm)	Weight/sheet(kg)
1220 x 1020 x 3	6.9
1220 x 1020 x 4	9.2
1220 x 1020 x 5	11.5
1220 x 1020 x 6	13.8
1220 x 1020 x 8	18.4
1220 x 1020 x 10	23
1220 x 1020 x 12	27.6
2440 x 1220 x 3	16.5
2440 x 1220 x 4	22
2440 x 1220 x 5	27.5
2440 x 1220 x 6	33
2440 x 1220 x 8	44
2440 x 1220 x 10	55
2440 x 1220 x 12	66
Weight=length(m) x width(m) x thickness(mm) x Density(1.85g/cm3) ( eg. Weight of a sheet 1220mm x 1020mm x 3mm=1.22x1.02x3x1.85=6.9kg)

China alternative Durostone sheet is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep it’s mechanical strength, smoothness and original color when continuously used under the temperature of 260°C (max. working temperature below 385°C 10~20sec).

I.Advantages:

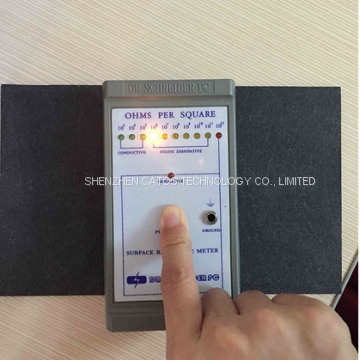

High Temperatur alternative Durostone Materials recognized worldwide and appreciated for their high temperature resistance, excellent machinability, chemical resistance, static dissipative properties and are sensor detectable..

II.Key Features:

Normal working temperature at 260°C, operating temperature up to 385 °C
Less distortion, low thermal conductivity
Superior dimensional stability, Long life
High temperature resistance
Resistance to chemical corrosion
High mechanical strength
Good machinability (low density)

III.Applications:

Wave solder pallet and SMT carriers
Electronic components automatic cartridge
Solder paste screen printing
SMT Surface Mount technology
IR reflow curin
Online testing jig

IV.Stock Capability

V. Packing & Delivery

1. PE protective film package;
2. Paper carton and water-proof cloth
3. Pallet and Iron straps position.
4. Weight of a pallet within 300KG .
5.Also we can depends on the requirment of customers

VI.Fabricating Process of High Temperature Resistance Durostone Sheet

Samples is available to you for free,your inquiry is welcome!

Meanwhile,Processing Guideline and Material Specification is available to you!
