Aluminium Alloy Bottom valve emergency cut off valve

Choose us as your business partner, you will enjoy:

High quality,competitive price and timely delivery.

Experienced staff and professional service

Matched accessories can also be supplied

Main product

Fuel transportation parts     Quick coupling

Tank truck components           Vapor recovery parts

Flanges        Ball valve Filters        Manhole cover

Api Adaptor               watering cart parts

Characteristics

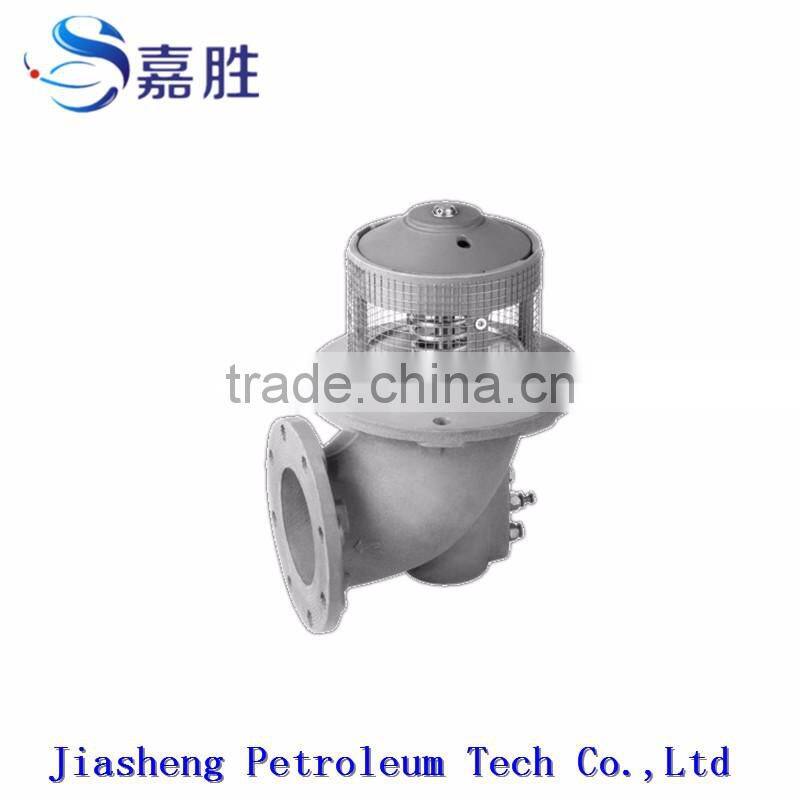

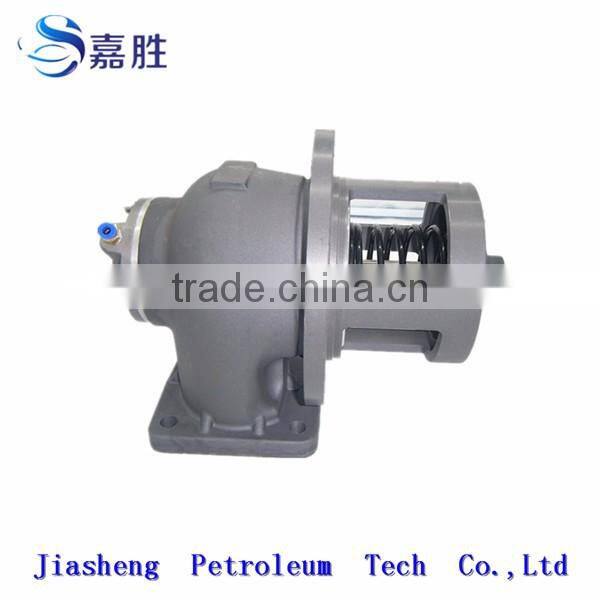

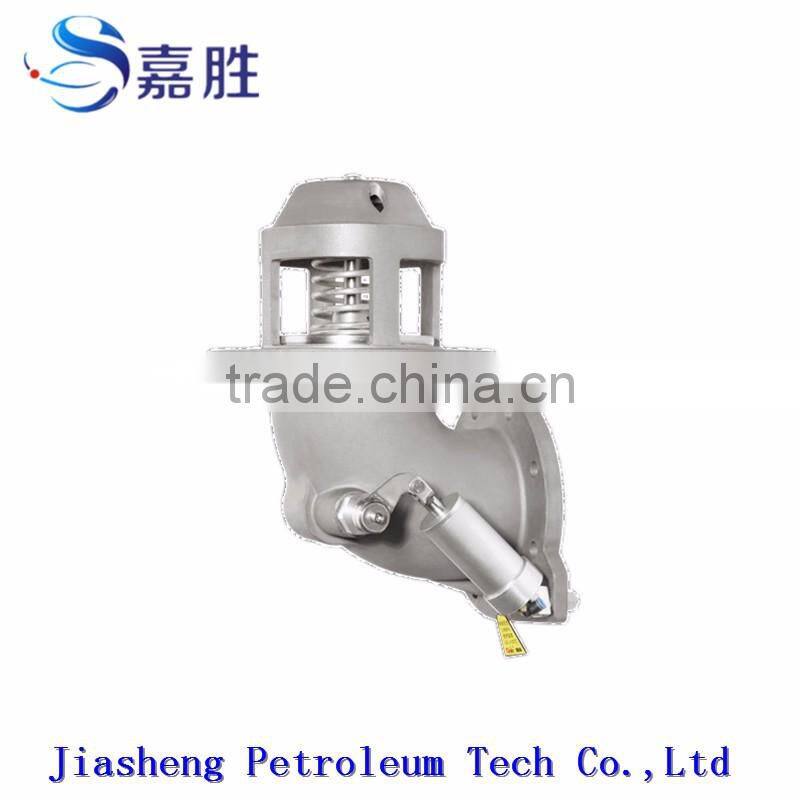

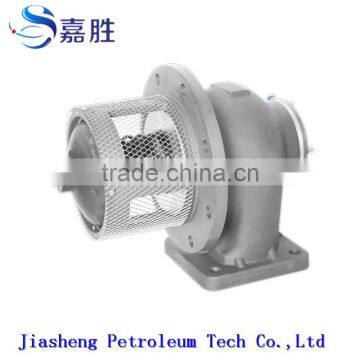

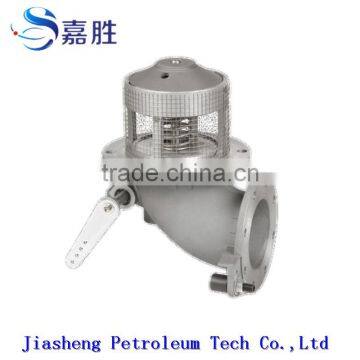

Aluminum Pneumatic Bottom Valve (Emergency Cut off Valve) is installed on the bottom of the tanker, the top parts is tightly sealed inside the tanker. External shear groove design limits product spillage when the tanker is crashed down,it will automatically cut off itself via this groove under the situation there's no affection on the sealing. This will efficiently protect the over rolled tanker from leakage to ensure the safety when transportation. This product is suitable for water,diesel ,gasoline and kerosene and other light fuel,ect.

Special Surface Treatment

The whole valve body is passed a special surface process to improve the anti-corrosion.

 Hydrodynamic Body

Design and high lift poppet minimizes pressure drop to give maximum flow rate.

External Shear Groove

Meets the standard requirements to limit product spillage in the event of an accident.

  Manual Opening Device

When need to emergency discharging ,the pneumatic control is useless,it can be opened by manual way.

  Easy-Installment

The size of the valve is more smart ,is suitable for the smaller space's demand.

  Easy Servicing

Allows the air cylinder piston to be replaced without removing the valve from the tank pipe work.

Technical Specification

1).Factory direct price,more competitive,all kinds of mould available,matched accessories offered.

2).With our own factory,Strict control for every step of production,better control the quality and the delivery time

3).Mature technique,high quality,less defect product during production.

4).OEM &ODM accepted.

5).We can make new mould as your request.

6).After-sale service is guaranteed.

6

JiaSheng Petroleum Tech Co., Ltd. located in Xuzhou, Jiangsu province, with convenient transportation in railway, highway and aviation. Our company is a specialized manufacturer integrating design ,production and sale into an organic whole.

Our company produces and sales various tanker parts, oilcan parts, watering cart parts, aluminium and stainless steel quick coupling, double-way and treble-way valves, medium and low pressure petrochemical valves, European standard gas recovery tanker parts, gas station recovery products. Our products are widely supplied for industries like petroleum company, troops, oil stocks, tank truck, watering cart and gas station.

Our company has engineering experiences for years, we are also specialized in the installment of gas station wire frame, oil tank, asphalt tank, wine storage tank, pipeline and gas station construction, once and twice gas station recovery redevelopment, European standard tank truck refit.

Our company provides well-equipped products, advanced technique, strong technical force, and we can undertake the manufacture of other special parts.
