4 Inch Dirty Water Pump Driven by 13hp Petrol Engine
US$ 57 - 70
/ Set
5 Sets(Min. Order)
- Shanghai or Chongqing Port
- T/T
You May Like
-
JUANYONG Brand 4 Inch Semi Trash Pump Sewage Grinder Pump
-
China Manufacturer Warehouse Sewage Water Pumps With Aluminum Body for Farm Irrigation Hot Sales Item on 2016
-
Sewage Gasoline Water Pump With Sewage Pump Trash Pump
-
Made in China 3 Inch Sewage Water Pumps Water With NPT Thread
-
Made in China 3"sewage Water Pump With 168F 6.5hp Diesel Engine Penis Pump to Turbine
-
Pressure Control for Trash Water Pump With China Electrical Products
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WB100 | Theory | Other, Self Priming | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Sewage |
Product Description
Introduction of 4 Inch Dirty Water Pump
Specifications of 4 Inch Dirty Water Pump
| Item | WB100 |
| Inlet Size(mm) | 100 |
| Outlet Size(mm) | 100 |
Displacement Q.max(m3 /h) | 68 |
Lift H.max(m) | 20 |
| Suction(m) | 5 |
| Engine Model | 190F |

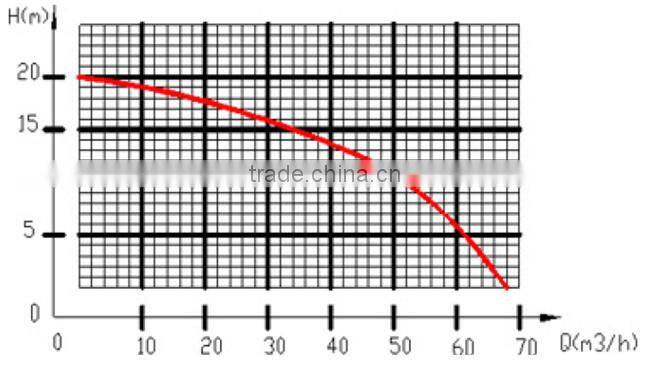

Performance Curve
Water Pump Part List
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

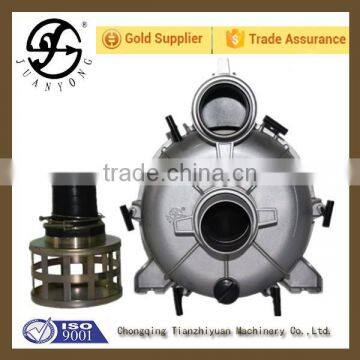

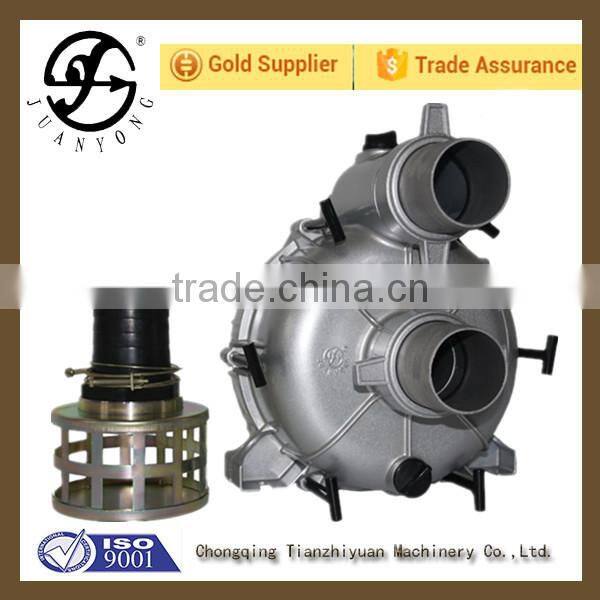

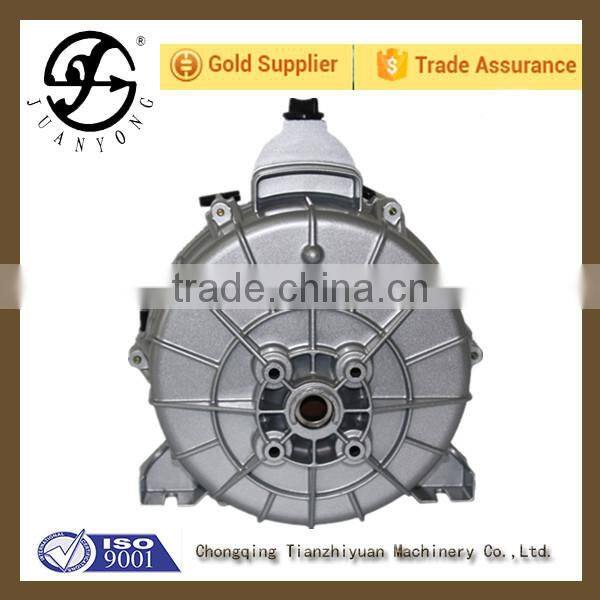

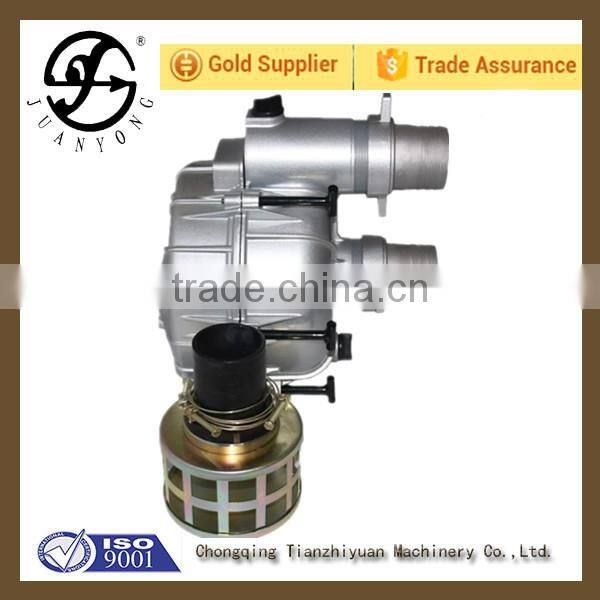

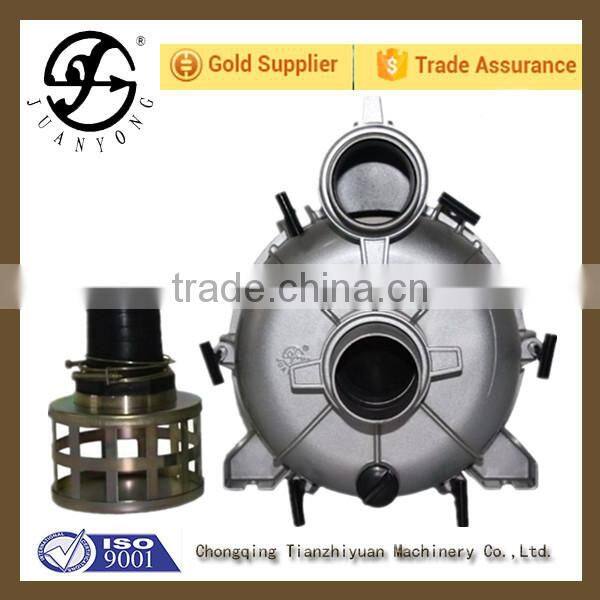

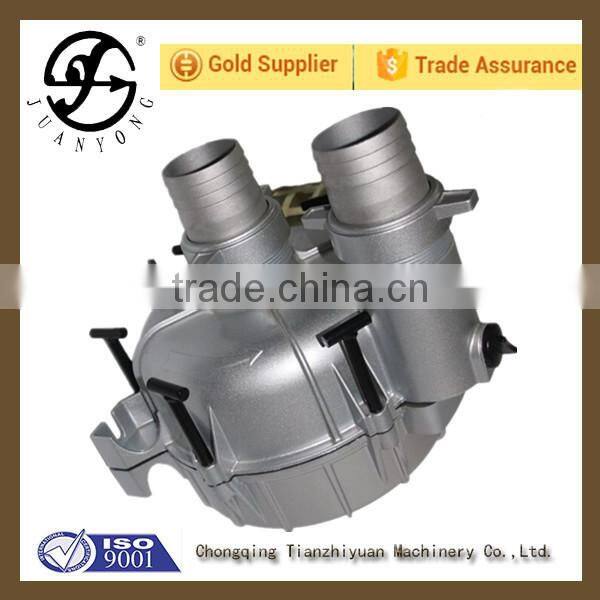

Image of 4 Inch Dirty Water Pump
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
